 Post subject: WRITING A TEXT IN THE FRONT AROUND AN OBJECT
PostPosted: Thu Aug 10, 2023 4:39 am  (#1)
Offline
GimpChat Member
User avatar

Joined: Apr 26, 2014
Posts: 3543
Location: belgium


as shown in the picture here is a text written in front of an object and the text is in line with the object.
is there a tutorial somewhere in gimp or someone who knows how to make such text editing.
​a selection should be made, and within that selection write the text. the text should automatically adjust to the curves of the selection.
maybe something possible with a path ??ii
maybe there is a genius somewhere among the gimpers or among our scriptwriters.
in anticipation of a successful outcome to my question, thanks in advance
gimper66


Share on Facebook Share on Twitter Share on Orkut Share on Digg Share on MySpace Share on Delicious Share on Technorati
Top
 Post subject: Re: WRITING A TEXT IN THE FRONT AROUND AN OBJECT
PostPosted: Thu Aug 10, 2023 5:12 am  (#2)
Offline
Script Coder
User avatar

Joined: Oct 25, 2010
Posts: 4750
Not in Gimp. Typically something for a typesetting application (Scribus or else).

_________________


Top
 Post subject: Re: WRITING A TEXT IN THE FRONT AROUND AN OBJECT
PostPosted: Thu Aug 10, 2023 6:02 am  (#3)
Offline
GimpChat Member
User avatar

Joined: Apr 26, 2014
Posts: 3543
Location: belgium
ofnuts wrote:
Not in Gimp. Typically something for a typesetting application (Scribus or else).


there is a possibility in photoshop, it is not a typesetting there either, but a modified version to imitate it.


Attachments:
File comment: in the folder a photoshop tutorial
1.zip [1.05 MiB]
Downloaded 24 times
Top
 Post subject: Re: WRITING A TEXT IN THE FRONT AROUND AN OBJECT
PostPosted: Thu Aug 10, 2023 7:00 am  (#4)
Offline
GimpChat Member

Joined: Mar 04, 2011
Posts: 2435

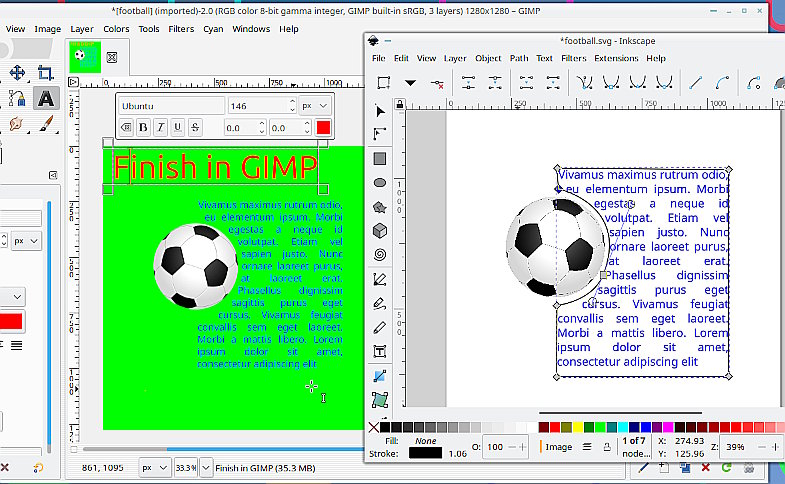

There is also Inkscape. Flow text into frame. Then into Gimp to add background...etc...

Attachment:
gimp-ink.jpg [ 129.78 KiB | Viewed 1699 times ]

_________________


Top
 Post subject: Re: WRITING A TEXT IN THE FRONT AROUND AN OBJECT
PostPosted: Thu Aug 10, 2023 8:42 am  (#5)
Offline
GimpChat Member

Joined: Jul 28, 2018
Posts: 1196
Tim created a plugin called "Filled Text Selection Plug-in" and I think if you invert the selection it might do it.
Since he erased everything in his website, you can't download anything even at "Wayback Machine". :hoh Maybe someone here have the plugin and might be able to share it.

_________________
https://www.deviantart.com/pocholo17


Top
 Post subject: Re: WRITING A TEXT IN THE FRONT AROUND AN OBJECT
PostPosted: Thu Aug 10, 2023 8:59 am  (#6)
Offline
GimpChat Member
User avatar

Joined: Oct 31, 2020
Posts: 1446
Rich2005's solution to the problem via Inkscape is what I do.


Top
 Post subject: Re: WRITING A TEXT IN THE FRONT AROUND AN OBJECT
PostPosted: Thu Aug 10, 2023 9:59 am  (#7)
Offline
GimpChat Member
User avatar

Joined: May 24, 2021
Posts: 787
Location: SEA - South East Asia
Pocholo wrote:
Tim created a plugin called "Filled Text Selection Plug-in" and I think if you invert the selection it might do it.
Since he erased everything in his website, you can't download anything even at "Wayback Machine". :hoh Maybe someone here have the plugin and might be able to share it.

Thanks Pocholo for the keywords.
@gimper66, Here you go ;)
Filled Text Selection Plug-in to download (version/revision 11), in the menu it's in > Python-Fu/Filled Text Selection... :yes
Attachment:
filled_text_selection.py.7z [2.82 KiB]
Downloaded 27 times

I did found the topic as well, it's here on GC > viewtopic.php?f=9&t=17273 (on the second page it gives nice results)

EDIT: do NOT download this one, it misses 1 script, see my next post.

_________________
Patrice


Last edited by PixLab on Fri Aug 11, 2023 4:00 am, edited 1 time in total.

Top
 Post subject: Re: WRITING A TEXT IN THE FRONT AROUND AN OBJECT
PostPosted: Fri Aug 11, 2023 3:12 am  (#8)
Offline
GimpChat Member
User avatar

Joined: May 24, 2021
Posts: 787
Location: SEA - South East Asia
Ok, you do need 2 scripts.

1st to prepare the text with format that the 2nd script can handle to Fill the selection, or the text will be too stretched and ugly

I did put the 2 scripts together (delete the old one in your plugins folder or it will interfere), both paths in the menu are in Filters/Text/Text fit selection/ (Prepare then Fill)
Yeah I took it directly from my plugins directory, thus it's my menu path
Attachment:
fill text to selection.7z [4.35 KiB]
Downloaded 37 times


How to use it?

Paste your text with the text tool (I did it with the option Box > Fixed)
Then make a selection, work on your selection, in my example a rectangle then an ellipse in minus mode


Then select your text in the layers' dialog and go to Filters > Text > Text fit Selection > Prepare Text Into Selection...
Let the script doing its job for a while (watch the bar at the bottom of GIMP),

once it's finished, you get a new text layer with the text aligned on the left and no more selection.
Untick the visibility of the original text below in the layers' stack, then go to the channel dialog and click that button to "re"-select


Go back to the layers' dialog select the new text generated by the "Prepare" script
then launch the second script Filters > Text / Text fit selection/ Fill selection with text..

Result (it's quite nice :clap )


_________________
Patrice


Top
 Post subject: Re: WRITING A TEXT IN THE FRONT AROUND AN OBJECT
PostPosted: Fri Aug 11, 2023 6:56 am  (#9)
Offline
GimpChat Member
User avatar

Joined: Apr 26, 2014
Posts: 3543
Location: belgium


pixlap,
thank you thank you thank you
I did a first text edit here around the seagull and fantastic it works perfectly.
now I have to refine my texts myself and or adjust my selection frame, I will work with that so that I get nice results.
thanks again for the quick response and the great result.
gimper66


Top
 Post subject: Re: WRITING A TEXT IN THE FRONT AROUND AN OBJECT
PostPosted: Fri Aug 11, 2023 11:25 am  (#10)
Offline
GimpChat Member
User avatar

Joined: Apr 26, 2014
Posts: 3543
Location: belgium


I have made the edit again, but see that the text lines are not all of the same size.
is it possible that i'm doing something wrong or is it normal that the text lines don't have the same size?

gimper66


Top
 Post subject: Re: WRITING A TEXT IN THE FRONT AROUND AN OBJECT
PostPosted: Fri Aug 11, 2023 9:40 pm  (#11)
Offline
GimpChat Member
User avatar

Joined: May 24, 2021
Posts: 787
Location: SEA - South East Asia
gimper66 wrote:
[ Image ]


I have made the edit again, but see that the text lines are not all of the same size.
is it possible that i'm doing something wrong or is it normal that the text lines don't have the same size?

gimper66


May we see the text you pasted before any "transform/prepare"? Or even better if you can sent a zip of your final xcf, I would like to see and try to reproduce the imperfection to understand why it is happening.

_________________
Patrice


Top
 Post subject: Re: WRITING A TEXT IN THE FRONT AROUND AN OBJECT
PostPosted: Sat Aug 12, 2023 4:27 am  (#12)
Offline
GimpChat Member
User avatar

Joined: Apr 26, 2014
Posts: 3543
Location: belgium
PixLab,Good morning



as you can see my text size is the same all over the line



but during processing different sizes show up

As requested I have attached the xcf, thanks again for your efforts.
gimper66


Attachments:
TEKST IN SELECTIE.zip [4.09 MiB]
Downloaded 19 times
Top
 Post subject: Re: WRITING A TEXT IN THE FRONT AROUND AN OBJECT
PostPosted: Sat Aug 12, 2023 5:28 am  (#13)
Offline
GimpChat Member

Joined: Mar 04, 2011
Posts: 2435
Sometimes a problem, Tin's plugins squashes / grows the text.

Attachment:
squashed.jpg [ 118.71 KiB | Viewed 1511 times ]

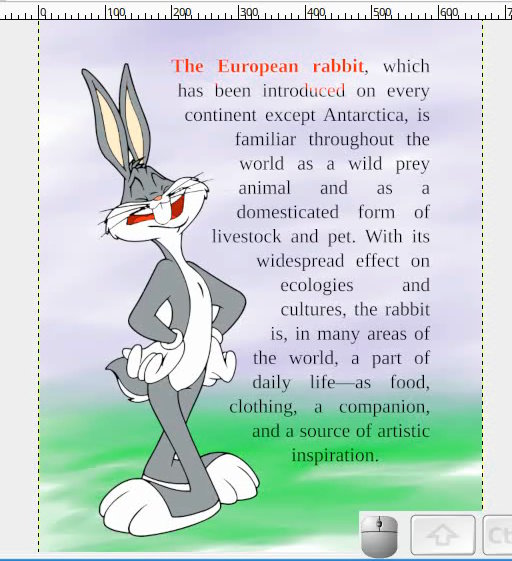

This is using Inkscape and the gimp-to-inkscape plugin https://www.gimpscripts.net/2023/07/gim ... scape.html Word spacing can be a problem here as well but it is possible to adjust in real time using Inkscape.

Attachment:
inked.jpg [ 66.12 KiB | Viewed 1511 times ]


4 minutes duration https://youtu.be/p7Hd25vmKJ0

www.youtube.com Video from : www.youtube.com

_________________


Top
 Post subject: Re: WRITING A TEXT IN THE FRONT AROUND AN OBJECT
PostPosted: Sat Aug 12, 2023 6:47 am  (#14)
Offline
GimpChat Member
User avatar

Joined: May 24, 2021
Posts: 787
Location: SEA - South East Asia
I cannot try with the very text in your XCF as I did not have that font nor the language installed on my system , when I clicked to edit it to change the size I got just hieroglyph ala Greek alike.

Thus I tried with some space-ipsum, and indeed depending the size of the words, and like rich2005, I got some lines bigger than others
Example:
Attachment:
screenshot_20230812-193515.jpg [ 291.49 KiB | Viewed 1497 times ]


Depending your needs, this script can be an option ;) it might work better when there are paragraphs, though.
I think the rich2005 method is better, a slightly bit more manipulation, but with the script GIMP to Inkscape, it should be very smooth ;)

_________________
Patrice


Top
 Post subject: Re: WRITING A TEXT IN THE FRONT AROUND AN OBJECT
PostPosted: Sat Aug 12, 2023 8:10 am  (#15)
Offline
GimpChat Member
User avatar

Joined: Jan 06, 2020
Posts: 343
Location: The Netherlands
Rich2005
thanks for posting this tutorial.
Am very happy with that!


Top
