 Post subject: Metallic Gradients - Metal Wurx- Part XII
PostPosted: Wed Apr 18, 2012 2:23 pm  (#1)
Offline
GimpChat Member
User avatar

Joined: Aug 24, 2011
Posts: 1785
Location: Dallas, TX
Making Metallic Gradients


I haven’t seen a lot of metallic gradients for Gimp so I decided to include this segment for those that need a quick and easy way to get a semi metallic effect. First, I’m going to show you how to take any gradient, and turn it into a metallic gradient in just a few simple steps.

Included with this tutorial, you will find 24 different metallic gradients in the attached zip file. Some were a collaboration between myself and Rod to convert some Photoshop “styles” into GIMP .ggr gradient files. Others are variations derived from some of the default gradients that come with GIMP, and still others that were created from scratch. A special thanks to Rod for his Steel_Pencil_RD gradient that got me started on these.

Step 1.
Open a new image 800x600 and use 300 ppi for the resolution.

Step 2.
Create a transparent layer and name it Gradient. Delete the background layer and select the Blend tool. Set the gradient to the Shadow 1 gradient and check the little box next to the gradient to reverse it. Make a horizontal stroke across your image, using the Control key to make it perfectly straight, and apply your gradient.


Step 3.
On the Gradient layer, Go to Colors>Desaturate, select the Luminosity option, then click OK. Next, click on the little box at the top of the layers dialog to lock the alpha channel, then go toFilters>Blur>Gaussian Blur, set both values to 100 and click OK.
This will make our gradient a little more blended and smoother looking.

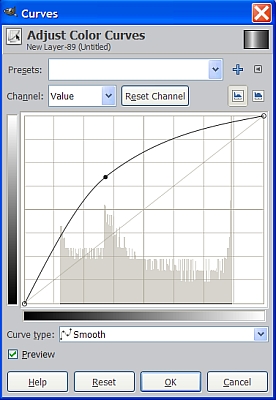

Our gradient is still too dark, so go to Colors>Curves and move your curve up somewhere between one to two squares from the middle, in the curves dialog, and click OK. Different gradients will require different curve adjustments. I used this one.


Here’s what the gradient looks like after the curve adjustment.


We have now transformed an existing gradient into a metallic gradient. The best part is since it is a grayscale image, we can apply any color we choose to make different metals.

Step 4.
Create a new transparent layer, and set the layer Mode to Overlay. Now duplicate it seven times, for a total of eight layers including our gradient layer. What we are going to do is create some basic metal colors and then apply them one at a time to our object by controlling the visibility for each layer. Start naming the layers according to the list below. After you rename each layer, change your FG color to the corresponding Hex number, and fill each layer in turn with the corresponding color.

Bronze 8C7853
Copper B87333
Brass B5A642
Gold FDD017
Aluminum A9ACB6
Nickel BDBAAE
Titanium B6AFA9

Don’t worry about how the colors appear just yet, but once you get the colors and names applied to all the layers, turn off the visibility to all the colored layers except the copper layer and they should look like this.


Step 5.
Duplicate the Gradient layer and create a brushed metal texture on the duplicated layer using RGB Noise and Motion Blur like we did in Metal Wurx - Part I, and name it Brushed Metal. If you don’t already know how to make brushed metal, go back and review my tutorial for brushed metal here: http://www.gimpchat.com/viewtopic.php?f=23&t=3750


We now have a nice custom metallic gradient, and we can see what it looks like used with a simple brushed metal texture layer.


Step 6.
Change the layer mode of the Copper layer to Grain Merge and take a look at the results.


The color is quite a bit richer.

Now look at each metal color layer, one at a time, by turning the visibility on for the selected layer, turning the others off and changing the layer mode. Just for grins, you might also try duplicating the Brushed Metal layer and placing it at the top of the layer stack, changing the layer Mode to Grain Merge for a more intense effect.


Just play around with layer Modes and Opacities to get all kinds of results

Well, we just created 8 different metallic finishes, with numerous variations. Make sure you save the list of metallic colors because they will be used in future tutorials. Here are some metal sample finishes using a conical setting for a gradient overlay to the brushed metal and a metallic colored layer with various layer modes.


These colors can be applied to any type metal whether it is brushed, hammered, pitted, smooth or shaped, bumped and a curve applied for making highly reflective surfaces like chrome. Have fun experimenting!

I hope you enjoyed this tutorial. Metal Wurx – Part XIII will explore several different methods for creating awesome chrome effects. I have included a ton of resources as well as links to several other great tutorials by others using even more methods for making chrome and other metals. You won’t want to miss this one!

Edit: Metallic Gradients moved to viewtopic.php?p=94723#p94723

Metallic Gradients moved to here viewtopic.php?p=94723#p94723

_________________


Last edited by Draconian on Mon Aug 20, 2012 10:09 am, edited 3 times in total.

Share on Facebook Share on Twitter Share on Orkut Share on Digg Share on MySpace Share on Delicious Share on Technorati
Top
 Post subject: Re: Metallic Gradients - Metal Wurx- Part XII
PostPosted: Wed Apr 18, 2012 2:37 pm  (#2)
Offline
GimpChat Member
User avatar

Joined: Mar 23, 2012
Posts: 7301
Location: Göteborg at last!
A very useful tutorial and, as usual, well presented.


Top
 Post subject: Re: Metallic Gradients - Metal Wurx- Part XII
PostPosted: Wed Apr 18, 2012 2:43 pm  (#3)
Offline
GimpChat Member
User avatar

Joined: Aug 24, 2011
Posts: 1785
Location: Dallas, TX
Thanks Erisian. I knew you would appreciate it. Now you know how to make your Celtic knots into any type metal you want. I'm almost ready with the next one and IMHO, I think it will be the best and most useful part of the series.

_________________


Top
 Post subject: Re: Metallic Gradients - Metal Wurx- Part XII
PostPosted: Wed Apr 18, 2012 3:22 pm  (#4)
Offline
GimpChat Member
User avatar

Joined: Mar 23, 2012
Posts: 7301
Location: Göteborg at last!
I'm looking forward to it!


Top
 Post subject: Re: Metallic Gradients - Metal Wurx- Part XII
PostPosted: Wed Apr 18, 2012 3:29 pm  (#5)
Offline
GimpChat Member
User avatar

Joined: Jan 20, 2012
Posts: 583
Looks good! If only we could plot the gradient and have it auto do this (bringing back the idea :D) according to user choice for direction of light....

_________________


"In the face of adversity, there's three things: fly, freeze or fight; We're choosing to fight..."- Guy Boucher, Tampa Bay Lighting Head Coach


Top
 Post subject: Re: Metallic Gradients - Metal Wurx- Part XII
PostPosted: Mon Aug 20, 2012 12:43 pm  (#6)
Offline
GimpChat Member
User avatar

Joined: Apr 30, 2010
Posts: 1937
Location: Missouri
I'm very interested in metallic gradients, thanks for making this.

_________________
The last time I kept an open mind,
my brain fell out and the dog grabbed it.
Now it's full of dirt, toothmarks, and dog slobber.
No more open minds or dogs for me.


Top
 Post subject: Re: Metallic Gradients - Metal Wurx- Part XII
PostPosted: Mon Aug 20, 2012 12:54 pm  (#7)
Offline
GimpChat Member
User avatar

Joined: Aug 24, 2011
Posts: 1785
Location: Dallas, TX
Gms9810 wrote:
I'm very interested in metallic gradients, thanks for making this.


You are welcome. Now you can make as many as you like. You must have missed the tut first time around. I reference it in several of my other subsequent Metal Wurx tuts so have fun.

_________________


Top
 Post subject: Re: Metallic Gradients - Metal Wurx- Part XII
PostPosted: Mon Aug 20, 2012 11:37 pm  (#8)
Offline
GimpChat Member
User avatar

Joined: Apr 09, 2011
Posts: 1764
very interesting tutorial. Thank you


Top
 Post subject: Re: Metallic Gradients - Metal Wurx- Part XII
PostPosted: Fri May 31, 2013 2:09 pm  (#9)
Offline
GimpChat Member

Joined: May 29, 2013
Posts: 15
thnx!


Top
 Post subject: Re: Metallic Gradients - Metal Wurx- Part XII
PostPosted: Fri May 31, 2013 3:48 pm  (#10)
Offline
Administrator
User avatar

Joined: Aug 10, 2012
Posts: 12978
Location: Native to NYC living in Arizona, Gimp 2.8 & 2.10, Win 11 PC.
These look great thanks Draconian. :bigthup

_________________
"A wise man learns more from a foolish question than a fool can learn from a wise answer"


Top
 Post subject: Re: Metallic Gradients - Metal Wurx- Part XII
PostPosted: Tue Jul 30, 2013 4:26 am  (#11)
Offline
GimpChat Member
User avatar

Joined: Jun 16, 2013
Posts: 107
Thanks, work great and very useful
