compiling gimp-multi-stroke for Windows 64bit

Jehan · **Joined:** May 11, 2015 **Posts:** 12

I can post links now! Here for the wiki page: http://wiki.gimp.org/wiki/Hacking:Building/Windows

MareroQ · **Posted:** Fri May 15, 2015 1:26 pm **(#32)**

Hi Jehan.
Thanks for symmetry painting in GIMP "Multi-Stroke".
Thanks for link - use Pacman is very helpful.

I in more far draught have problem (gimp-9f6ea24d090791ea83934a848a89b91d2dda6f5d; Windows Vista 32 bit)

1. MyPaint brushes: no (libmypaint-gegl not found)
Where to place from https://github.com/mypaint/libmypaint.git to compilation Gimp ?

2. And this mistake (Version cairo: 1.14.2-1):

Code: Select all

...............................
  CC     gradient-select-cmds.o
  CC     gradients-cmds.o
  CC     grid-cmds.o
  CC     guides-cmds.o
In file included from guides-cmds.c:30:0:
../../app/core/gimpguide.h:64:49: error: unknown type name 'cairo_pattern_t'
                                                 cairo_pattern_t     *normal_style,
                                                 ^
../../app/core/gimpguide.h:65:49: error: unknown type name 'cairo_pattern_t'
                                                 cairo_pattern_t     *active_style,
                                                 ^
../../app/core/gimpguide.h:79:1: error: unknown type name 'cairo_pattern_t'
 cairo_pattern_t   * gimp_guide_get_normal_style (GimpGuide           *guide);
 ^
../../app/core/gimpguide.h:80:1: error: unknown type name 'cairo_pattern_t'
 cairo_pattern_t   * gimp_guide_get_active_style (GimpGuide           *guide);

Thanks!

ps. Do you know that in Gimp nightly builds (Development Series -2.9 - 32 bit) missing icons ?

MareroQ · **Posted:** Sat Jun 13, 2015 5:32 pm **(#33)**

Now (gimp-5def084f1176c4fab4fedb29200a7c7f7e4a68e1 on 2015-06-10 ), for me only this error:
MyPaint brushes: no (libmypaint-gegl not found)
You need to use SCons? This for me does not want to work ...

MareroQ · **Posted:** Wed Jun 17, 2015 12:22 pm **(#34)**

Any help for error:

Code: Select all

$ cd libmypaint
MINGW32 ~/libmypaint
$ scons -h
AttributeError: 'FS' object has no attribute '_cwd':
  File "C:/msys32/mingw32/Lib/site-packages/scons-2.3.4/SCons/Script/Main.py", line 1372:
    _exec_main(parser, values)
  File "C:/msys32/mingw32/Lib/site-packages/scons-2.3.4/SCons/Script/Main.py", line 1335:
    _main(parser)
  File "C:/msys32/mingw32/Lib/site-packages/scons-2.3.4/SCons/Script/Main.py", line 897:
    fs = SCons.Node.FS.get_default_fs()
  File "C:/msys32/mingw32/Lib/site-packages/scons-2.3.4/SCons/Node/FS.py", line 3242:
    default_fs = FS()
  File "C:/msys32/mingw32/Lib/site-packages/scons-2.3.4/SCons/Node/FS.py", line 1130:
    self.Top = self.Dir(self.pathTop)
  File "C:/msys32/mingw32/Lib/site-packages/scons-2.3.4/SCons/Node/FS.py", line 1352:
    return self._lookup(name, directory, Dir, create)
  File "C:/msys32/mingw32/Lib/site-packages/scons-2.3.4/SCons/Node/FS.py", line 1285:
    directory = self._cwd

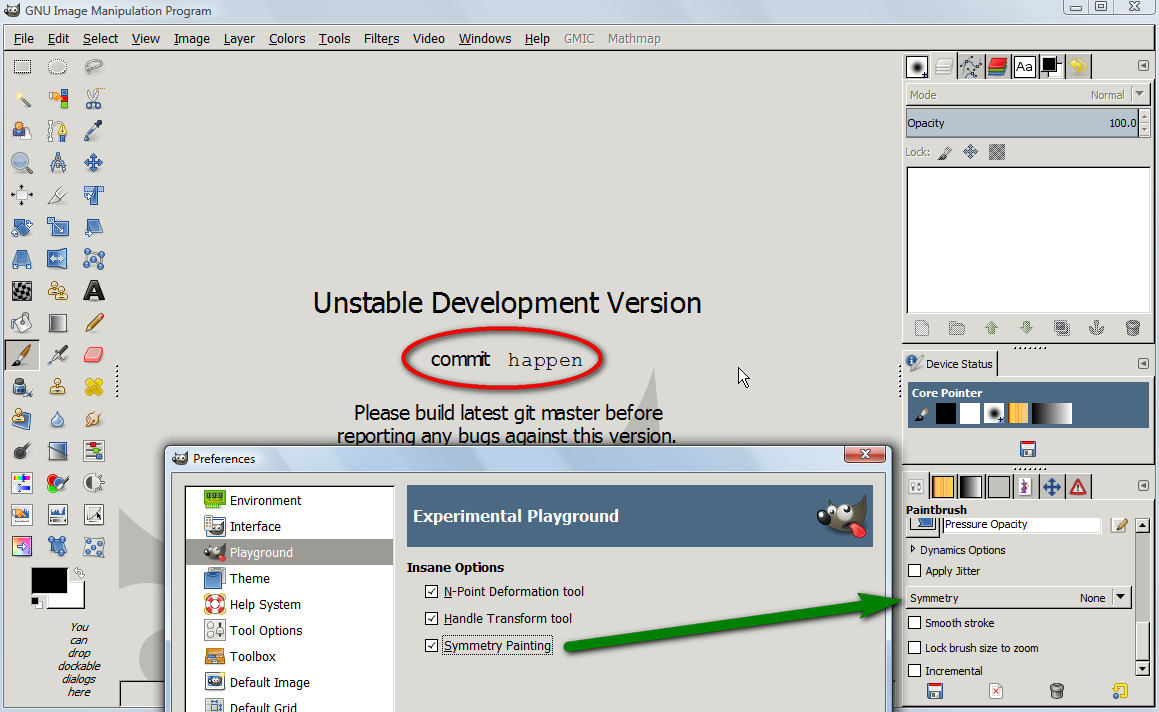

Multi-Stroke is amazing - 3 examples in 30 seconds:

Graechan · **Posted:** Wed Jun 17, 2015 7:25 pm **(#35)**

MareroQ your last post appears to show you have gimp-multi-stroke working for Win but no plugin attached, how is this done
the results are outstanding

MareroQ · **Posted:** Sun Jun 28, 2015 12:29 am **(#36)**

For Windows 32 bit:
http://gimpchat.com/viewtopic.php?f=7&t=12698

For those interested compilation 32/64bit- a new environment compiled by Samj (msys2 and Pacman...)
Environnement de compilation of Windows (Juin 2015)
http://samjcreations.blogspot.it/2015/06/environnement-de-compilation-windows.html

Rod · **Joined:** May 16, 2010 **Posts:** 16135

Thank you MareroQ and everyone else for the new 64 bit env.
