 Post subject: erase background using free select tool?
PostPosted: Fri Jul 09, 2021 12:39 pm  (#1)
Offline
GimpChat Member

Joined: Jun 22, 2020
Posts: 98
GIMP Version: 2.8.14
Operating System: Windows
GIMP Experience: Basic Level



I have an image from the paintbrush, it has a light color in the background i am trying to delete to transparent. I can erase to transparent, but every time i use the the free select tool, i think thats what its called, it selects everything not just the background color. yes i know its user error, so what do i need to do?

also using the newest gimp version.


Attachments:
TEST.xcf [988.63 KiB]
Downloaded 137 times
Share on Facebook Share on Twitter Share on Orkut Share on Digg Share on MySpace Share on Delicious Share on Technorati
Top
 Post subject: Re: erase background using free select tool?
PostPosted: Fri Jul 09, 2021 1:46 pm  (#2)
Offline
GimpChat Member
User avatar

Joined: May 24, 2021
Posts: 787
Location: SEA - South East Asia
First deselect all what you have selected > Select > None
Then let's start
Go to the channel tab (near layer) > Drag the blue channel and drop it on the canvas
Go back to the Layer tab > Add alpha channel to that new layer
Colors > Threshold
Colors > Color to alpha (white by default)
Alpha to Selection
Go back to the bottom layer > Add mask from selection, deselect the top layer (no need anymore)
done
Attachment:
TEST.xcf [1.15 MiB]
Downloaded 149 times

_________________
Patrice


Top
 Post subject: Re: erase background using free select tool?
PostPosted: Fri Jul 09, 2021 2:59 pm  (#3)
Offline
GimpChat Member

Joined: Jun 22, 2020
Posts: 98
Attachment:
thank you not there.JPG
thank you not there.JPG [ 83.91 KiB | Viewed 4497 times ]
PixLab wrote:
First deselect all what you have selected > Select > None
Then let's start
Go to the channel tab (near layer) > Drag the blue channel and drop it on the canvas
Go back to the Layer tab > Add alpha channel to that new layer
Colors > Threshold
Colors > Color to alpha (white by default)
Alpha to Selection
Go back to the bottom layer > Add mask from selection, deselect the top layer (no need anymore)
done
Attachment:
The attachment TEST.xcf is no longer available


OH I GET IT! LOL, THANK YOU I JUST NEEDED TO CHECK "FROM SELECTION" WOW :tyspin :tyspin :tyspin
First thank you so much and so fast! ok, on the last step, i dont have that option in my list:


Top
 Post subject: Re: erase background using free select tool?
PostPosted: Fri Jul 09, 2021 11:00 pm  (#4)
Offline
GimpChat Member
User avatar

Joined: May 24, 2021
Posts: 787
Location: SEA - South East Asia

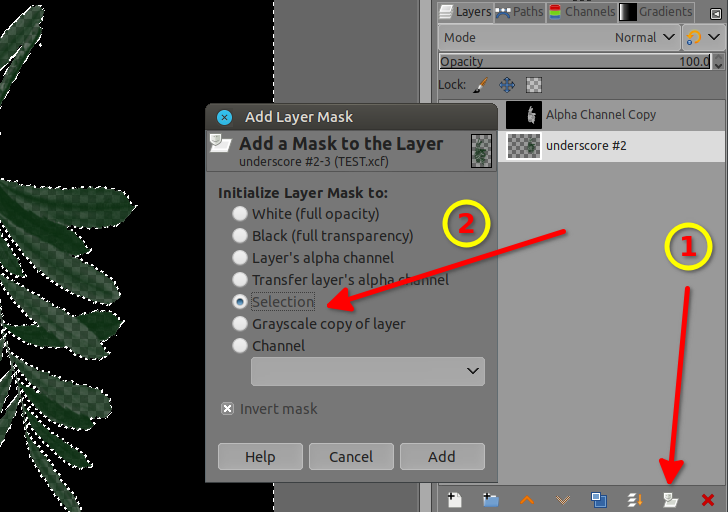

i dont have that option in my list: Yes you have, but wrong list (although you have it in your list, see screenshot below mine) :mrgreen:

Click on the icon number 1 (add a Mask in layer dock, window dialogue opens)
Then select number 2 (from selection)

Attachment:
screenshot_20210710-115528.png [ 120.58 KiB | Viewed 4451 times ]


And in your list :hehe :hehe

Attachment:
screenshot_20210710-151532.png [ 293.79 KiB | Viewed 4438 times ]

_________________
Patrice
