 Post subject: Using the Grid
PostPosted: Sun Jun 30, 2024 4:26 pm  (#1)
Offline
GimpChat Member

Joined: Aug 12, 2022
Posts: 10
GIMP Version: 2.8.14
Operating System: Windows
GIMP Experience: Basic Level



There's no hotkey that turns the Grid on or off?

Every time I want to use the Grid, I have to manually reconfigure its dimensions, because it is too small for the work I do. Is there an option to change the default Grid size the program starts with?

Thanks!


Share on Facebook Share on Twitter Share on Orkut Share on Digg Share on MySpace Share on Delicious Share on Technorati
Top
 Post subject: Re: Using the Grid
PostPosted: Sun Jun 30, 2024 6:19 pm  (#2)
Offline
Script Coder
User avatar

Joined: May 07, 2014
Posts: 4001
Location: Canada
You can assign a short cut
under Edit -> Preferences -> Interface -> Scroll down to Keyboard Shortcuts and look for the one you want and just enable it and hit a Key to make it shortcut.

_________________
TinT


Top
 Post subject: Re: Using the Grid
PostPosted: Mon Jul 01, 2024 2:15 am  (#3)
Offline
GimpChat Member

Joined: Mar 04, 2011
Posts: 2437
Ye Olde Guy wrote:
GIMP Version: 2.8.14
Operating System: Windows
GIMP Experience: Basic Level



There's no hotkey that turns the Grid on or off?

Every time I want to use the Grid, I have to manually reconfigure its dimensions, because it is too small for the work I do. Is there an option to change the default Grid size the program starts with?

Thanks!


I totally agree about the default grid with the small spacing. However You can set up a custom grid from Edit -> Preferences Default Image -> Default Grid. These are my settings.

Attachment:
grid1.jpg [ 85.56 KiB | Viewed 73 times ]


There are also settings for an image-by-image basis. For any image Image -> Configure Grid. Like other properties guides / active selections ... this is saved when you SAVE the image as a Gimp .xcf file.

_________________


Top
 Post subject: Re: Using the Grid
PostPosted: Tue Jul 02, 2024 3:55 am  (#4)
Offline
GimpChat Member

Joined: Aug 12, 2022
Posts: 10
OK. This is whack: After changing the default grid size in Preferences\Default Grid, the grid I end up with is HALF the size of what I expect GIMP to use. What the heck is going on?

Apparently, I cannot post screenshots without first finding some image hosting service and linking to that. So I have to describe what happens, instead of showing:

In Preferences\Default Grid, and under Spacing, I have entered a grid size of .100—the size I've used for months.

Subsequently, when I add a grid to an image, it seems smaller than it should be. Sure enough, upon pulling up Image\Configure Grid, I see the Spacing in inches listed at .050, instead of .100. It appears that I have to manually change this grid size for every image going forward into perpetuity, regardless of how I set up Preferences\Default Grid.

Is this behavior a bug or a feature?


Top
 Post subject: Re: Using the Grid
PostPosted: Tue Jul 02, 2024 8:39 am  (#5)
Offline
GimpChat Member

Joined: Mar 04, 2011
Posts: 2437
Quote:
...snip....In Preferences\Default Grid, and under Spacing, I have entered a grid size of .100—the size I've used for months.

Your problem is using real world units (inches / millimetres..etc) while Gimp used pixels.

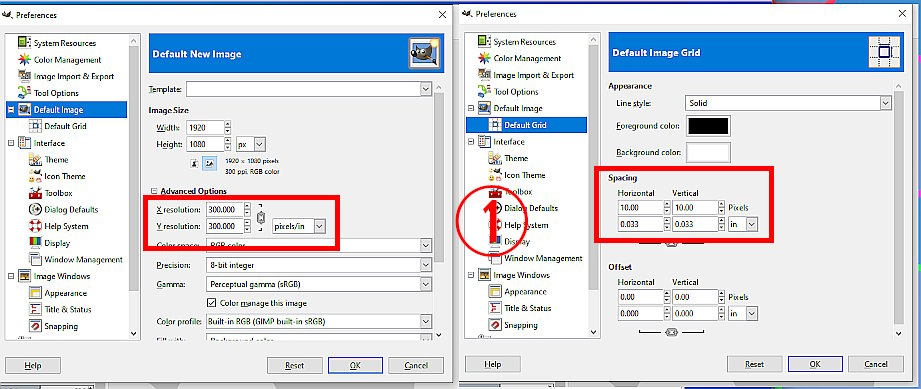

This is the default Gimp 2.10, where the default image uses a resolution of 300 pixels-per-inch (ppi)
The default grid settings is 10 pixels (very small spacing IMHO) and that gives a inches value of 0.033 inches.

Attachment:
01-default.jpg [ 95.36 KiB | Viewed 21 times ]

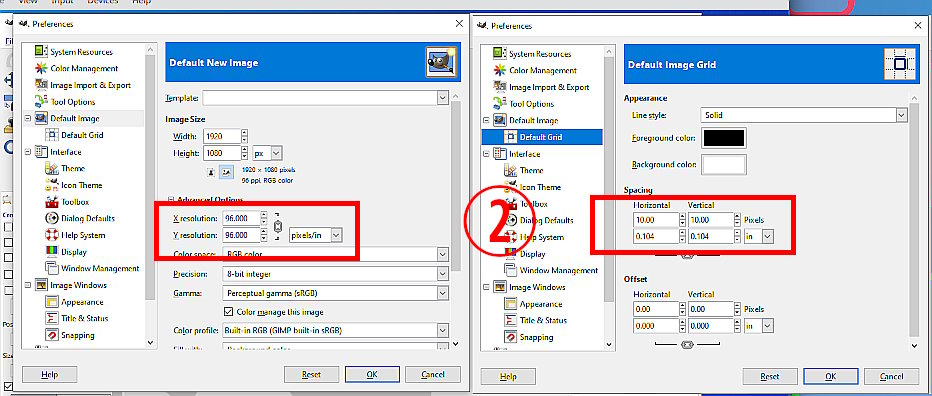

If the image ppi changes, and that can be the default value you set or the ppi of the open image the spacing in inches will change. The spacing in pixels still the same-old-10 pix. This if you changed the default ppi to say 96 - a common value for some images - the grid spacing is now 0.104 inches and still 10 pixels.

Attachment:
02-ppi.jpg [ 98.6 KiB | Viewed 21 times ]


The bottom line is, there is no automatic setting for inches spacing, only for pixels spacing. For inches, yes you will have to change this on an image-by-image basis and no it is not a bug.
