GEGL Bevel (filter of its own but now ships with GEGL Effects)

PixLab · **Posted:** Wed Nov 09, 2022 9:15 am **(#21)**

contrast_ wrote:

Remove all duplicates of GEGL Effects. Literally just remove everything and replace them with the folder I setup
https://cdn.discordapp.com/attachments/ ... 6_2022.zip

You should be more specific when saying that, people will literally remove EVERYTHING even the one installed by GIMP

Issabella wrote:

Thanks contrast,
I did that but when I tried to open Gimp a windows says this.
It won't let me open Gimp

@Issabella: Aya-ouch :bluesad

In this GEGL folder, you did have few GEGL filters installed by GIMP itself (nothing to do with contrast_'s GEGL) something like 5-8 GEGL filters (maybe, if I recall), did you removed ALL of them?

Issabella wrote:

could someone using Gimp Portable 64 bit without problems send me their folder with all the Gegl 0.4 dll?
Thank you so much.
Thanks, contrast.

Little up > can some one send that GEGL folder to Issabella? (I can't I'm on Linux, it has ".so", not ".dll")

contrast_ · **Joined:** Oct 31, 2020 **Posts:** 1456

On Linux and my Windows 7 install

Code: Select all

/gegl-0.4/plug-ins

was empty before I put the first plugins in it.

PixLab · **Posted:** Wed Nov 09, 2022 9:31 am **(#23)**

contrast_ wrote:

On Linux and my Windows 7 install

Code: Select all

/gegl-0.4/plug-ins

was empty before I put the first plugins in it.

mine was not (on Linux/ PPA / Ubuntu), I'll check tomorrow at the office (windows7 they have)

Issabella · **Posted:** Wed Nov 09, 2022 10:34 am **(#24)**

PixLab, yes I removed everything. Not only those but in all copies thinking it could affect.
Sorry, I am a mess

mackenzieh · **Posted:** Wed Nov 09, 2022 1:07 pm **(#25)**

Is the update available for windows users?

contrast_ · **Joined:** Oct 31, 2020 **Posts:** 1456

mackenzieh wrote:

Is the update available for windows users?

GEGL Bevel did not update and if it did it could break many other filters.

contrast_ · **Joined:** Oct 31, 2020 **Posts:** 1456

Stand alone binaries here.
.dll is Windows
.so is Linux

https://github.com/LinuxBeaver/GEGL-Eff ... /bevel.dll
https://github.com/LinuxBeaver/GEGL-Eff ... S/bevel.so

Attachment:

bevel_blues.png [ 303.11 KiB | Viewed 2789 times ]

Windows
C:\Users\AppData\Local\gegl-0.4\plug-ins

Linux
/home/(USERNAME)/.local/share/gegl-0.4/plug-ins

Linux (Flatpak)
/home/(USERNAME)/.var/app/org.gimp.GIMP/data/gegl-0.4/plug-ins

contrast_ · **Joined:** Oct 31, 2020 **Posts:** 1456

gegl bevel had an update and it can now do this using Gimp layer blend modes.

https://streamable.com/vgdeoj

Attachment:

bevel_time.png [ 481.43 KiB | Viewed 2755 times ]

Please over ride or remove older versions of gegl:bevel in the plug-ins folder.
Any plugin that uses gegl:bevel will continue to work regardless of what version you have.
But Gimp will default to using the older version. That is why old versions need to be removed.

Binary location

Windows C:\Users\USERNAME\AppData\Local\gegl-0.4\plug-ins

or C:\Users\AppData\Local\gegl-0.4\plug-ins

*you may need to create the "plug-ins" folder if it doesn't exist.

Linux /home/(USERNAME)/.local/share/gegl-0.4/plug-ins

Linux (Flatpak) /home/(USERNAME)/.var/app/org.gimp.GIMP/data/gegl-0.4/plug-ins

contrast_ · **Joined:** Oct 31, 2020 **Posts:** 1456

Bevel has now been renamed from gegl:bevel to lb:bevel incase the custom Bevel that was accepted in Gimp 3 is named gegl:bevel. Which it likely will according to Pippin.

This breaks all presets for gegl:bevel but not GEGL Effects CE. The same goes for inner glow which is being renamed lb:innerglow.

lb stands for LinuxBeaver obviously.

You can update bevel and inner glow by going to here (binaries provided)

https://github.com/LinuxBeaver/GEGL-Eff ... L/releases

-
Other lesser known filters that use my bevel also have been updated and will only work with lb:bevel; they will break if used with gegl:bevel. so update here (binaries provided)

https://github.com/LinuxBeaver/gegl-goo ... t/releases

https://github.com/LinuxBeaver/GEGL-ext ... t/releases

Directory to put binaries - and yes you should overwrite or remove originalls

Windows
C:\Users\(USERNAME)\AppData\Local\gegl-0.4\plug-ins

Linux
/home/(USERNAME)/.local/share/gegl-0.4/plug-ins

Linux (Flatpak includes Chromebook)
/home/(USERNAME)/.var/app/org.gimp.GIMP/data/gegl-0.4/plug-ins

contrast_ · **Joined:** Oct 31, 2020 **Posts:** 1456

GEGL Bevel is getting new modes, NOT to be confused with plugins "Edge Only Bevel" and "Ringed Bevel" in development. Said plugins will be stand alones and not part of GEGL Bevel.

NEW MODES FOR GEGL BEVEL PREVIEW

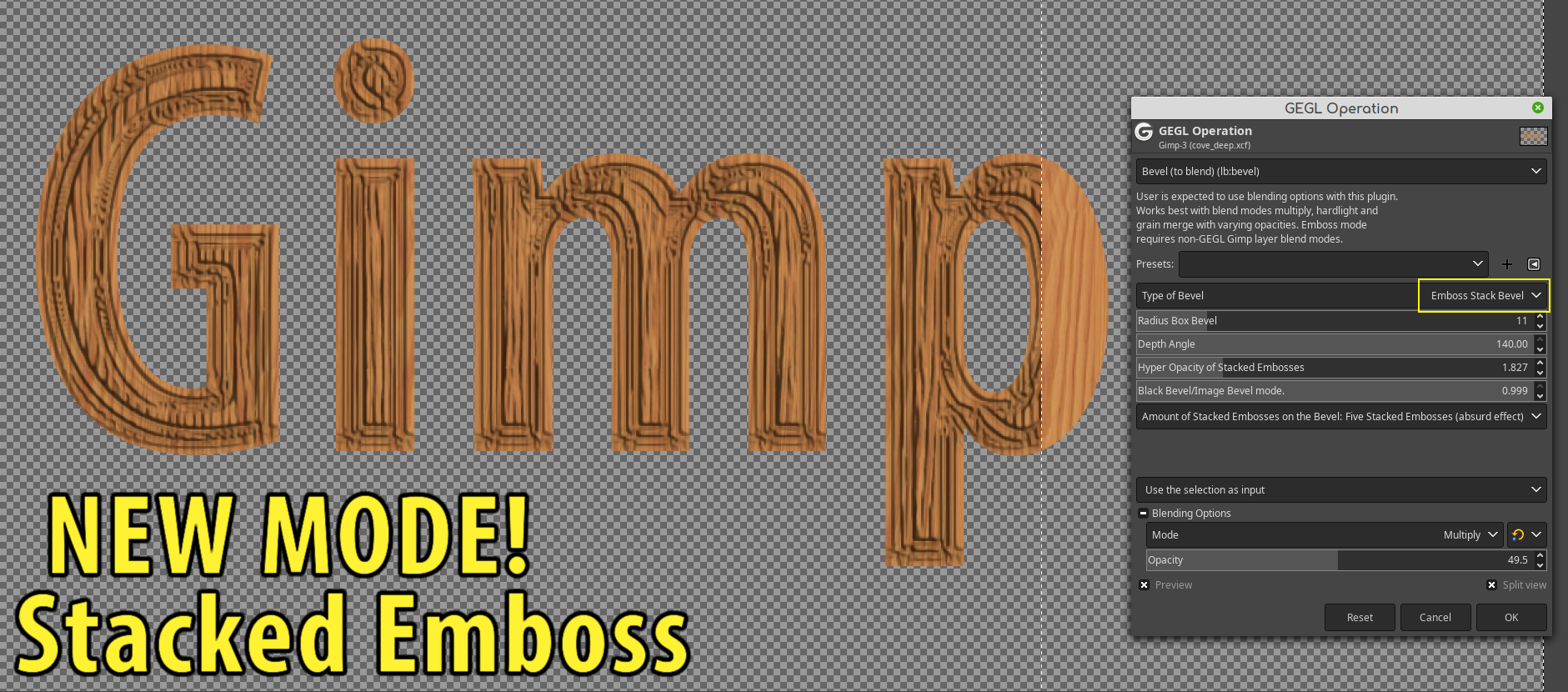

Stacked Emboss Bevel with wood texture pre-existing

Attachment:

stacked_emboss.png [ 649.79 KiB | Viewed 2635 times ]

Cove Bevel (bevel coming from the inside)

Attachment:

pasted_image244.png [ 182.9 KiB | Viewed 2635 times ]

Due to new stragegies I discovered, plugins no longer break presets or GEGL Effects under specific cases. This is one of them. So now you can test the update without worrying about presets breaking or GEGL Effects breaking. If you are using a version of GEGL Effects July 2023 and up you will be fine. If not GEGL Effects will break and lose its bevel ability, if that happens you can solve it just by updating to the latest version of GEGL Effects.

Here is the source code. Compile and go to GEGL operations > lb:bevel or Filters>Text Styling>Bevel on Gimp 2.99.16+

Attachment:

latest_bevel_oct_11_2023_code_only.zip [6.12 KiB]
Downloaded 16 times

Later I will provide binaries on Github.

I am experiencing Bevel mania as the past few days I have spent hours studying new bevel theories.

contrast_ · **Joined:** Oct 31, 2020 **Posts:** 1456

October 14 Future Note, This bevel effect will be put here instead and is not currently included in GEGL Bevel
viewtopic.php?f=4&t=20581

* the last post on the page below discusses new modes for GEGL bevel and the source code download that is not yet on Github as binaries and code together. Please check it before reading this.

Here is another mode I have planned for GEGL Bevel that I have not yet implemented.

You can use this by putting the syntax in GEGL Graph and selecting the "multiply blend mode" it does NOT ship with the wood texture (or need it)

Attachment:

pasted_image267.png [ 326.28 KiB | Viewed 2593 times ]

Code: Select all

id=1 gimp:layer-mode layer-mode=normal composite-mode=clip-to-backdrop aux=[color value=#ffffff  opacity value=11 ]
gaussian-blur std-dev-x=1 std-dev-y=1
box-blur radius=11
emboss azimuth=44 depth=3
emboss depth=20 elevation=90

emboss elevation=40 depth=00

Once this is done it will be in the drop down list for GEGL Bevel modes. Anyone is welcome to suggest a name as I don't know what to call it.

contrast_ · **Joined:** Oct 31, 2020 **Posts:** 1456

GEGL Bevel updated. Every plugin on Github that uses GEGL Bevel has the latest version and two new modes.

Attachment:

2023-10-14_19-54.png [ 156.02 KiB | Viewed 2578 times ]

Download update here with binaries for Windows and Linux

Attachment:

gegl_bevel_update_binaries.zip [58.13 KiB]
Downloaded 23 times

Location to put binaries (make sure you only have one copy of bevel.dll/.so) Override duplicate

**Windows**

C:\Users\(USERNAME)\AppData\Local\gegl-0.4\plug-ins

**Linux**

/home/(USERNAME)/.local/share/gegl-0.4/plug-ins

**Linux (Flatpak includes Chromebook)**

/home/(USERNAME)/.var/app/org.gimp.GIMP/data/gegl-0.4/plug-ins

contrast_ · **Joined:** Oct 31, 2020 **Posts:** 1456

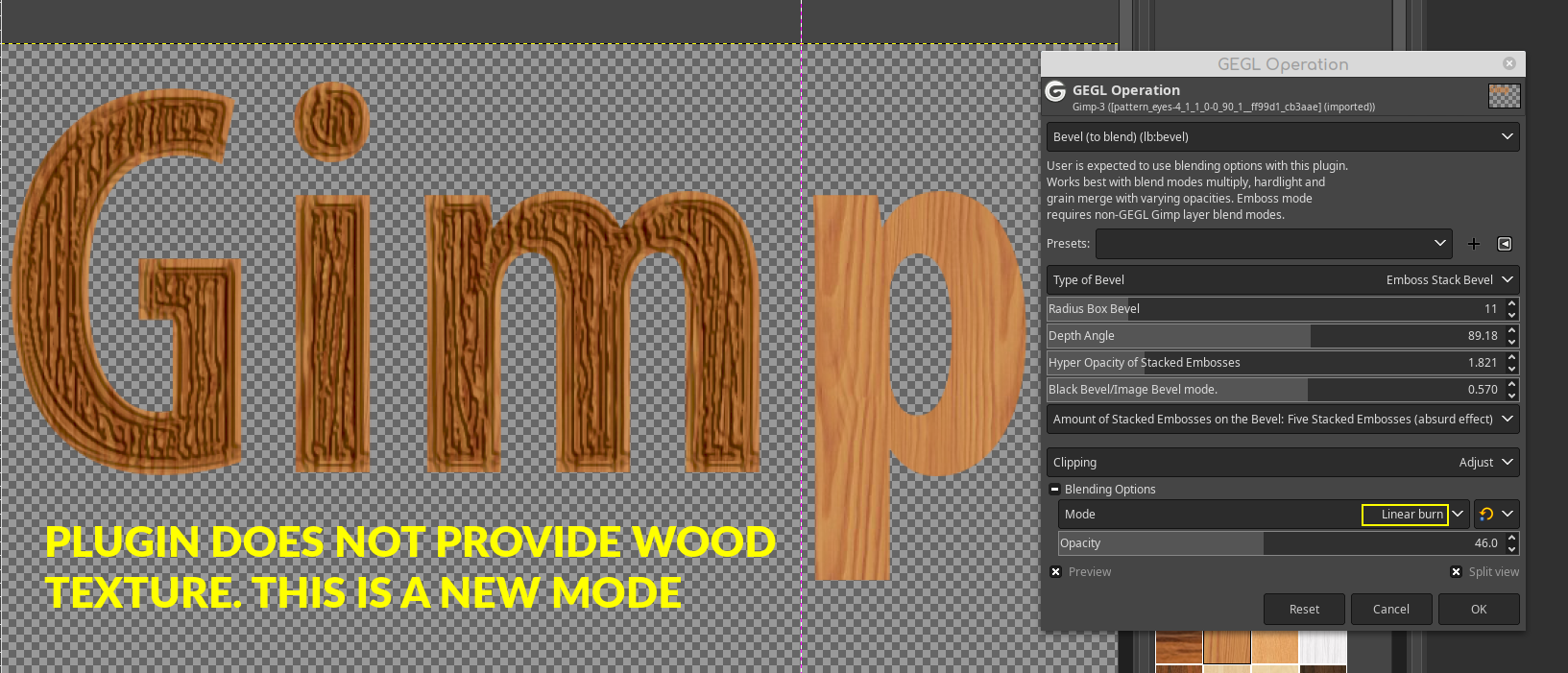

Preview of the new mode that is provided in downloads.

Attachment:

2023-10-14_20-01.png [ 405.4 KiB | Viewed 2578 times ]

btw, if the update didn't work its because you have multiple copies of bevel.dll or bevel.so when you should only have one. Or you put the binary in the wrong directory, or didn't restart Gimp.
