Compile the unreleased version of GEGL Effects and test it yourself. Save it as a C file before compiling.
1. The filter is fragmented into three parts that can be accesed using an enum list.
The parts are "outline and shadow" "bevel and innerglow" "image file and gradient"
2. Bevel has internal blend modes that can be swapped.
3. Outline can be moved to create a opaque softness free dropshadow effect.
4. Bevel has a radius option
/* This file is an image processing operation for GEGL
*
* GEGL is free software; you can redistribute it and/or
* modify it under the terms of the GNU Lesser General Public
* License as published by the Free Software Foundation; either
* version 3 of the License, or (at your option) any later version.
*
* GEGL is distributed in the hope that it will be useful,
* but WITHOUT ANY WARRANTY; without even the implied warranty of
* MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the GNU
* Lesser General Public License for more details.
*
* You should have received a copy of the GNU Lesser General Public
* License along with GEGL; if not, see <https://www.gnu.org/licenses/>.
*
* Copyright 2006 Øyvind Kolås <pippin@gimp.org>
*2022 Beaver GEGL Effects
* 2022 Liam (for helping give Inner Glow a disable checkbox)
*/
#include "config.h"
#include <glib/gi18n-lib.h>
#ifdef GEGL_PROPERTIES
enum_start (gegl_blend_mode_type_effects)
enum_value (GEGL_BLEND_MODE_TYPE_MULTIPLY, "Multiply",
N_("Multiply"))
enum_value (GEGL_BLEND_MODE_TYPE_GRAINMERGE, "Grain Merge",
N_("Grain Merge"))
enum_value (GEGL_BLEND_MODE_TYPE_SUBTRACT, "Subtract",
N_("Subtract"))
enum_value (GEGL_BLEND_MODE_TYPE_GRAINEXTRACT, "Grain Extract",
N_("Grain Extract"))
enum_end (GeglBlendModeType)
enum_start (guichangeenum)
enum_value (BEAVER_UI_STROKESHADOW, "strokeshadow", N_("Outline and Shadow"))
enum_value (BEAVER_UI_INNERGLOWBEVEL, "innerglowbevel", N_("Bevel and Inner Glow"))
enum_value (BEAVER_UI_IMAGEGRADIENT, "imagegradient", N_("Image file upload and Gradient"))
enum_end (guiend)
property_enum(guichange, _("Part of filter to be displayed"),
guiend, guichangeenum,
BEAVER_UI_STROKESHADOW)
description(_("Change the GUI option"))
property_enum (blendmode, _("Blend Mode of Bevel's emboss'"),
GeglBlendModeType, gegl_blend_mode_type_effects,
GEGL_BLEND_MODE_TYPE_MULTIPLY)
ui_meta ("visible", "guichange {innerglowbevel}")
property_file_path(src, _("Optional image file overlay upload "), "")
description (_("Source image file path (png, jpg, raw, svg, bmp, tif, ...)"))
ui_meta ("visible", "guichange {imagegradient}")
property_color (optioncolor, _("Optional Color Overlay"), "#ffffff")
ui_meta ("visible", "guichange {strokeshadow}")
property_int (depth, _("Bevel Depth --ENABLE BEVEL"), 1)
description (_("Filter width"))
value_range (1, 70)
ui_meta ("visible", "guichange {innerglowbevel}")
property_double (bevel1, _("Rotate Bevel Lighting (90 resets)"), 90.0)
description (_("Elevation angle (degrees)"))
value_range (55, 125)
ui_meta ("unit", "degree")
ui_meta ("visible", "guichange {innerglowbevel}")
property_double (radius1, _("Radius of Bevel"), 7.0)
value_range (7, 12.0)
ui_range (1.0, 12)
ui_gamma (1.5)
ui_meta ("visible", "guichange {innerglowbevel}")
property_double (opacitystroke, _("Outline's Opacity --ENABLE OUTLINE"), 0.0)
value_range (0.0, 1.0)
ui_steps (0.01, 0.10)
ui_meta ("visible", "guichange {strokeshadow}")
/* Should correspond to GeglMedianBlurNeighborhood in median-blur.c */
enum_start (gegl_stroke_grow_shape)
enum_value (GEGL_stroke_GROW_SHAPE_SQUARE, "square", N_("Square"))
enum_value (GEGL_stroke_GROW_SHAPE_CIRCLE, "circle", N_("Circle"))
enum_value (GEGL_stroke_GROW_SHAPE_DIAMOND, "diamond", N_("Diamond"))
enum_end (GeglstrokeGrowShape)
property_double (xstroke, _("Outline X Position"), 0.0)
description (_("Horizontal shadow offset"))
ui_range (-10.0, 10.0)
ui_steps (1, 10)
ui_meta ("visible", "guichange {strokeshadow}")
property_double (ystroke, _("Outline Y Position"), 0.0)
description (_("Vertical shadow offset"))
ui_range (-10.0, 10.0)
ui_steps (1, 10)
ui_meta ("visible", "guichange {strokeshadow}")
property_enum (grow_shape, _("Grow shape"),
GeglstrokeGrowShape, gegl_stroke_grow_shape,
GEGL_stroke_GROW_SHAPE_CIRCLE)
description (_("The shape to expand or contract the stroke in"))
ui_meta ("visible", "guichange {strokeshadow}")
property_double (radiusstroke, _("Outline's Blur radius"), 0.0)
value_range (0.0, 2)
ui_range (0.0, 300.0)
ui_steps (1, 5)
ui_gamma (1.5)
ui_meta ("unit", "pixel-distance")
ui_meta ("visible", "guichange {strokeshadow}")
property_double (grow_radiusstroke, _("Outline's Grow radius"), 12.0)
value_range (0.0, 100.0)
ui_range (0.0, 50.0)
ui_digits (0)
ui_steps (1, 5)
ui_gamma (1.5)
ui_meta ("unit", "pixel-distance")
description (_("The distance to expand the stroke before blurring; a negative value will contract the stroke instead"))
ui_meta ("visible", "guichange {strokeshadow}")
property_color (colorstroke, _("Outline's Color"), "#k")
/* TRANSLATORS: the string 'black' should not be translated */
description (_("The shadow's color (defaults to 'black')"))
ui_meta ("role", "color-primary")
ui_meta ("visible", "guichange {strokeshadow}")
property_double (opacity, _("Shadow/Glow Opacity --ENABLE SHADOW/GLOW"), 0.0)
value_range (0.0, 1.0)
ui_steps (0.01, 0.10)
ui_meta ("visible", "guichange {strokeshadow}")
property_double (x, _("Shadow/Glow X"), 10.0)
description (_("Horizontal shadow offset"))
ui_range (-40.0, 40.0)
ui_steps (1, 10)
ui_meta ("unit", "pixel-distance")
ui_meta ("axis", "x")
ui_meta ("visible", "guichange {strokeshadow}")
property_double (y, _("Shadow/Glow Y"), 10.0)
description (_("Vertical shadow offset"))
ui_range (-40.0, 40.0)
ui_steps (1, 10)
ui_meta ("unit", "pixel-distance")
ui_meta ("axis", "y")
ui_meta ("visible", "guichange {strokeshadow}")
property_color (color, _("Shadow/Glow Color"), "black")
/* TRANSLATORS: the string 'black' should not be translated */
description (_("The shadow's color (defaults to 'black')"))
ui_meta ("visible", "guichange {strokeshadow}")
/* It does make sense to sometimes have opacities > 1 (see GEGL logo
* for example)
*/
property_double (grow_radius, _("Shadow/Glow Grow radius"), 0.0)
value_range (0.0, 100.0)
ui_range (0.0, 50.0)
ui_digits (0)
ui_steps (1, 5)
ui_gamma (1.5)
ui_meta ("unit", "pixel-distance")
description (_("The distance to expand the shadow before blurring; a negative value will contract the shadow instead"))
ui_meta ("visible", "guichange {strokeshadow}")
property_double (radius, _("Shadow/Glow Blur radius"), 12.0)
value_range (0.0, G_MAXDOUBLE)
ui_range (0.0, 300.0)
ui_steps (1, 5)
ui_gamma (1.5)
ui_meta ("unit", "pixel-distance")
ui_meta ("visible", "guichange {strokeshadow}")
property_boolean (innerglow, _("Enable Inner Glow"), FALSE)
description (_("Whether to add an inner glow effect, which can be slow"))
ui_meta ("visible", "guichange {innerglowbevel}")
property_double (innergradius, _("Inner Glow's Blur radius"), 13.0)
value_range (0.0, 30.0)
ui_range (0.0, 30.0)
ui_steps (1, 5)
ui_gamma (1.5)
ui_meta ("unit", "pixel-distance")
ui_meta ("visible", "guichange {innerglowbevel}")
property_double (innerggrow_radius, _("Inner Glow's Grow radius"), 5)
value_range (1, 30.0)
ui_range (1, 30.0)
ui_digits (0)
ui_steps (1, 5)
ui_gamma (1.5)
ui_meta ("unit", "pixel-distance")
description (_("The distance to expand the shadow before blurring; a negative value will contract the shadow instead"))
ui_meta ("visible", "guichange {innerglowbevel}")
property_double (innergopacity, _("Inner Glow's opacity"), 1.4)
value_range (0.0, 2.0)
ui_steps (0.01, 0.10)
ui_meta ("visible", "guichange {innerglowbevel}")
property_color (innergvalue, _("Inner Glow's Color"), "#ff8f00")
description (_("The color to paint over the input"))
ui_meta ("visible", "guichange {innerglowbevel}")
property_double (fixoutline, _("Fix Inner Glow outline with median blur"), 69)
value_range (50, 79)
description (_("Neighborhood alpha percentile"))
ui_meta ("visible", "guichange {innerglowbevel}")
property_boolean (gradient, _("Enable Gradient"), FALSE)
description (_("Whether to add Gradient overlay"))
ui_meta ("visible", "guichange {imagegradient}")
property_double (start_x, _("Gradient X1"), 659.0)
ui_meta("unit", "pixel-coordinate")
ui_meta("axis", "x")
ui_meta ("visible", "guichange {imagegradient}")
property_double (start_y, _("Gradient Y1"), 49.0)
ui_meta("unit", "pixel-coordinate")
ui_meta("axis", "y")
ui_meta ("visible", "guichange {imagegradient}")
property_double (end_x, _("Gradient X2"), 647.0)
ui_meta("unit", "pixel-coordinate")
ui_meta("axis", "x")
ui_meta ("visible", "guichange {imagegradient}")
property_double (end_y, _("Gradient Y2"), 572.0)
ui_meta ("unit", "pixel-coordinate")
ui_meta ("axis", "y")
ui_meta ("visible", "guichange {imagegradient}")
property_color (start_color, _("Gradient Start Color"), "#34ebd6")
description (_("The color at (x1, y1)"))
ui_meta ("visible", "guichange {imagegradient}")
property_color (end_color, _("Gradient End Color"), "#fe18f2")
description (_("The color at (x2, y2)"))
ui_meta ("visible", "guichange {imagegradient}")
#else
#define GEGL_OP_META
#define GEGL_OP_NAME gegleffects
#define GEGL_OP_C_SOURCE gegleffects.c
#include "gegl-op.h"
/* Typedef Structure for Bevel's blend mode switching '*/
typedef struct
{
GeglNode *input;
GeglNode *atopi;
GeglNode *atopg;
GeglNode *over;
GeglNode *crop;
GeglNode *mbd;
GeglNode *mcol;
GeglNode *nopig;
GeglNode *nopm;
GeglNode *nopb;
GeglNode *nopg;
GeglNode *nopimage;
GeglNode *multiply;
GeglNode *subtract;
GeglNode *addition;
GeglNode *grainextract;
GeglNode *grainmerge;
GeglNode *multiplyb;
GeglNode *innerglow;
GeglNode *stroke;
GeglNode *ds;
GeglNode *output;
GeglNode *image;
GeglNode *gradient;
} State;
static void
update_graph (GeglOperation *operation)
{
GeglProperties *o = GEGL_PROPERTIES (operation);
State *state = o->user_data;
GeglNode *multiplyb;
if (!state) return;
multiplyb = state->multiply; /* the default */
switch (o->blendmode) {
case GEGL_BLEND_MODE_TYPE_MULTIPLY: multiplyb = state->multiplyb; break;
case GEGL_BLEND_MODE_TYPE_GRAINMERGE: multiplyb = state->grainmerge; break;
case GEGL_BLEND_MODE_TYPE_SUBTRACT: multiplyb = state->subtract; break;
case GEGL_BLEND_MODE_TYPE_GRAINEXTRACT: multiplyb = state->grainextract; break;
}
if (o->innerglow)
{
if (o->gradient)
{
/* both innerglow and gradient */
gegl_node_link_many (state->input, state->nopimage, state->atopi, state->nopg, state->atopg, state->crop, state->nopb, multiplyb, state->nopm, state->multiply, state->nopig, state->over, state->stroke, state->ds, state->output, NULL);
gegl_node_link_many (state->nopg, state->gradient, NULL);
gegl_node_link_many (state->nopimage, state->image, NULL);
gegl_node_link_many (state->nopig, state->innerglow, NULL);
gegl_node_link_many (state->nopb, state->mbd, NULL);
gegl_node_link_many (state->nopm, state->mcol, NULL);
gegl_node_connect_from (multiplyb, "aux", state->mbd, "output");
gegl_node_connect_from (state->multiply, "aux", state->mcol, "output");
gegl_node_connect_from (state->over, "aux", state->innerglow, "output");
gegl_node_connect_from (state->atopg, "aux", state->gradient, "output");
gegl_node_connect_from (state->atopi, "aux", state->image, "output");
}
else
{
/* innerglow but no gradient */
gegl_node_link_many (state->input, state->nopimage, state->atopi, state->crop, state->nopb, multiplyb, state->nopm, state->multiply, state->nopig, state->over, state->stroke, state->ds, state->output, NULL);
gegl_node_link_many (state->nopimage, state->image, NULL);
gegl_node_link_many (state->nopig, state->innerglow, NULL);
gegl_node_link_many (state->nopb, state->mbd, NULL);
gegl_node_link_many (state->nopm, state->mcol, NULL);
gegl_node_connect_from (multiplyb, "aux", state->mbd, "output");
gegl_node_connect_from (state->multiply, "aux", state->mcol, "output");
gegl_node_connect_from (state->over, "aux", state->innerglow, "output");
gegl_node_connect_from (state->atopi, "aux", state->image, "output");
}
}
else
{
if (o->gradient)
{
/* gradient but no innerglow */
gegl_node_link_many (state->input, state->nopimage, state->atopi, state->nopg, state->atopg, state->crop, state->nopb, multiplyb, state->nopm, state->multiply, state->stroke, state->ds, state->output, NULL);
gegl_node_link_many (state->nopg, state->gradient, NULL);
gegl_node_link_many (state->nopimage, state->image, NULL);
gegl_node_link_many (state->nopb, state->mbd, NULL);
gegl_node_link_many (state->nopm, state->mcol, NULL);
gegl_node_connect_from (multiplyb, "aux", state->mbd, "output");
gegl_node_connect_from (state->multiply, "aux", state->mcol, "output");
gegl_node_connect_from (state->atopg, "aux", state->gradient, "output");
gegl_node_connect_from (state->atopi, "aux", state->image, "output");
}
else
{
/* neither gradient nor innerglow */
gegl_node_link_many (state->input, state->nopimage, state->atopi, state->crop, state->nopb, multiplyb, state->nopm, state->multiply, state->stroke, state->ds, state->output, NULL);
gegl_node_link_many (state->nopimage, state->image, NULL);
gegl_node_link_many (state->nopb, state->mbd, NULL);
gegl_node_link_many (state->nopm, state->mcol, NULL);
gegl_node_connect_from (multiplyb, "aux", state->mbd, "output");
gegl_node_connect_from (state->multiply, "aux", state->mcol, "output");
gegl_node_connect_from (state->atopi, "aux", state->image, "output");
}
}
}
/* End of Typedef Structure for Bevel's blend mode switching '*/
/*Typedef Structure for InnerGlow and Gradient Checkboxes '*/
static void attach (GeglOperation *operation)
{
GeglNode *gegl = operation->node;
GeglProperties *o = GEGL_PROPERTIES (operation);
GeglNode *input, *output, *image, *mbd, *nopig, *multiplyb, *nopm, *over, *multiply, *grainextract, *grainmerge, *addition, *subtract, *nopb, *mcol, *stroke, *innerglow, *gradient, *crop, *ds, *nopimage, *atopi, *nopg, *atopg;
input = gegl_node_get_input_proxy (gegl, "input");
output = gegl_node_get_output_proxy (gegl, "output");
image = gegl_node_new_child (gegl,
"operation", "gegl:layer",
NULL);
stroke = gegl_node_new_child (gegl,
"operation", "gegl:dropshadow",
NULL);
ds = gegl_node_new_child (gegl,
"operation", "gegl:dropshadow",
NULL);

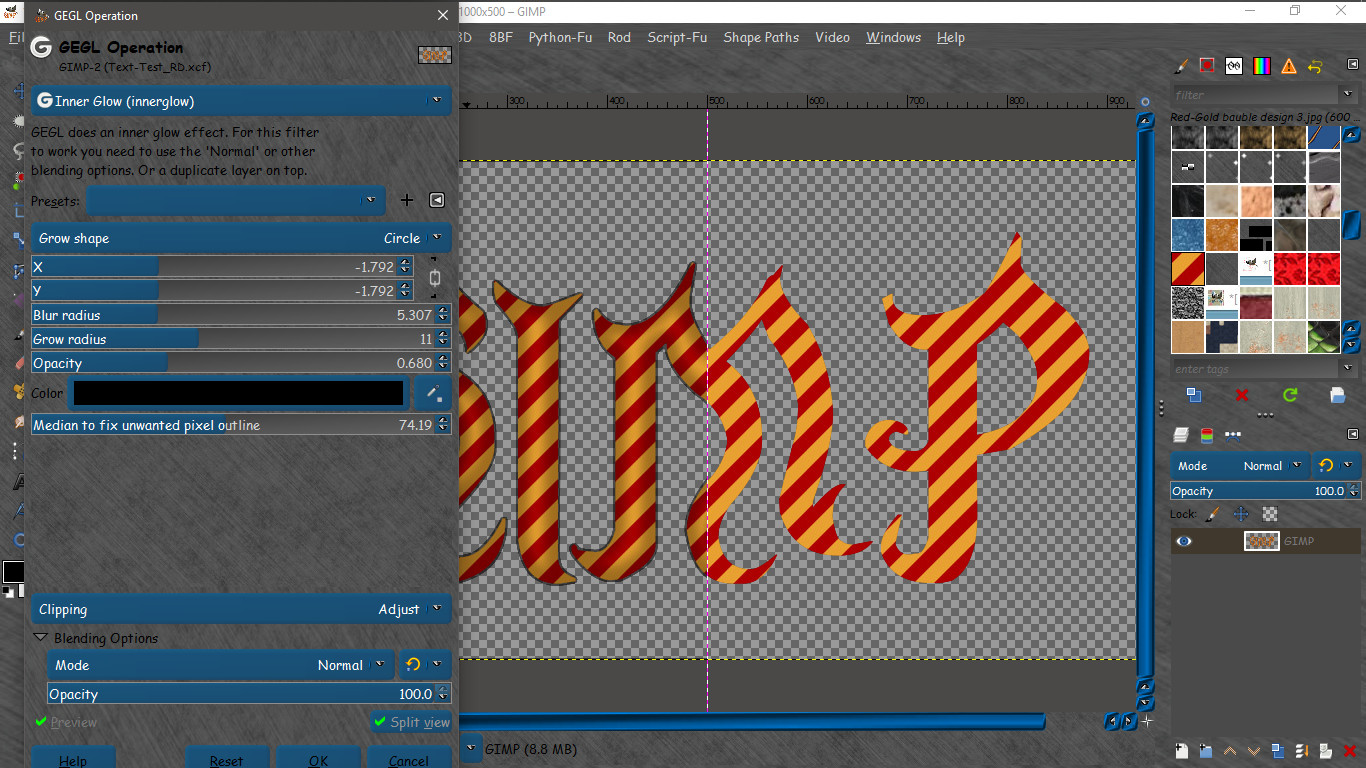

innerglow = gegl_node_new_child (gegl,
"operation", "gegl:innerglow",
NULL);
/*atopi is the blend mode that will need to be switchable for gegl:layer src=*/
atopi = gegl_node_new_child (gegl,
"operation", "gegl:src-atop",
NULL);
/*atopg is the blend mode that will need to be switchable for gegl:linear-gradient*/
atopg = gegl_node_new_child (gegl,
"operation", "gegl:src-atop",
NULL);
/*When we finally get around to adding an enum list so blend modes can change*/
/*atopg = gegl_node_new_child (gegl,
"operation", "gimp:layer-mode", "layer-mode", 23, "composite-mode", 0, NULL);*/
mbd = gegl_node_new_child (gegl,
"operation", "gegl:bevel",
NULL);
mcol = gegl_node_new_child (gegl,
"operation", "gegl:color-overlay",
NULL);
nopm = gegl_node_new_child (gegl,
"operation", "gegl:nop",
NULL);
nopimage = gegl_node_new_child (gegl,
"operation", "gegl:nop",
NULL);
nopb = gegl_node_new_child (gegl,
"operation", "gegl:nop",
NULL);
nopig = gegl_node_new_child (gegl,
"operation", "gegl:nop",
NULL);
nopg = gegl_node_new_child (gegl,
"operation", "gegl:nop",
NULL);
/*multiply is the blend mode that will need to be switchable for gegl:color-overlay*/
multiply = gegl_node_new_child (gegl,
"operation", "gegl:multiply",
NULL);
/*multiplyb is the blend mode that will need to be switchable for gegl:bevel*/
multiplyb = gegl_node_new_child (gegl,
"operation", "gegl:multiply",
NULL);
gradient = gegl_node_new_child (gegl,
"operation", "gegl:linear-gradient",
NULL);
/* 0 is Gimp blend mode (Normal) */
/* 47 is Gimp blend mode (Grain Merge) */
/* 23 is Gimp blend mode (Overlay) */
/*over = gegl_node_new_child (gegl,
"operation", "gimp:layer-mode", "layer-mode", 0, "composite-mode", 0, NULL);*/
/*over is the blend mode that will need to be switchable for gegl:innerglow*/
over = gegl_node_new_child (gegl,
"operation", "gegl:src-atop",
NULL);
crop = gegl_node_new_child (gegl,
"operation", "gegl:crop",
NULL);
grainextract = gegl_node_new_child (gegl,
"operation", "gimp:layer-mode", "layer-mode", 46, "composite-mode", 0, NULL);
grainmerge = gegl_node_new_child (gegl,
"operation", "gimp:layer-mode", "layer-mode", 47, "composite-mode", 0, NULL);
subtract = gegl_node_new_child (gegl,
"operation", "gimp:layer-mode", "layer-mode", 34, "composite-mode", 0, NULL);
gegl_node_link_many (input, nopimage, atopi, nopg, atopg, crop, nopb, multiplyb, nopm, multiply, nopig, over, stroke, ds, output, NULL);
gegl_node_link_many (nopimage, image, NULL);
gegl_node_link_many (nopg, gradient, NULL);
gegl_node_link_many (nopig, innerglow, NULL);
gegl_node_link_many (nopb, mbd, NULL);
gegl_node_link_many (nopm, mcol, NULL);
gegl_node_connect_from (multiplyb, "aux", mbd, "output");
gegl_node_connect_from (multiply, "aux", mcol, "output");
gegl_node_connect_from (over, "aux", innerglow, "output");
gegl_node_connect_from (atopi, "aux", image, "output");
gegl_node_connect_from (atopg, "aux", gradient, "output");
gegl_operation_meta_redirect (operation, "string", image, "string");
gegl_operation_meta_redirect (operation, "x", ds, "x");
gegl_operation_meta_redirect (operation, "y", ds, "y");
gegl_operation_meta_redirect (operation, "ystroke", stroke, "y");
gegl_operation_meta_redirect (operation, "xstroke", stroke, "x");
gegl_operation_meta_redirect (operation, "opacity", ds, "opacity");
gegl_operation_meta_redirect (operation, "grow_radius", ds, "grow-radius");
gegl_operation_meta_redirect (operation, "radius", ds, "radius");
gegl_operation_meta_redirect (operation, "color", ds, "color");
gegl_operation_meta_redirect (operation, "grow_shape", stroke, "grow-shape");
gegl_operation_meta_redirect (operation, "opacitystroke", stroke, "opacity");
gegl_operation_meta_redirect (operation, "radiusstroke", stroke, "radius");
gegl_operation_meta_redirect (operation, "grow_radiusstroke", stroke, "grow-radius");
gegl_operation_meta_redirect (operation, "colorstroke", stroke, "color");
gegl_operation_meta_redirect (operation, "depth", mbd, "bevel2");
gegl_operation_meta_redirect (operation, "radius1", mbd, "radius1");
gegl_operation_meta_redirect (operation, "bevel1", mbd, "bevel1");
gegl_operation_meta_redirect (operation, "optioncolor", mcol, "value");
gegl_operation_meta_redirect (operation, "src", image, "src");
gegl_operation_meta_redirect (operation, "innerggrow_radius", innerglow, "grow-radius");
gegl_operation_meta_redirect (operation, "innergradius", innerglow, "radius");
gegl_operation_meta_redirect (operation, "innergopacity", innerglow, "opacity");
gegl_operation_meta_redirect (operation, "innergvalue", innerglow, "value2");
gegl_operation_meta_redirect (operation, "fixoutline", innerglow, "fixoutline");
gegl_operation_meta_redirect (operation, "start_x", gradient, "start-x");
gegl_operation_meta_redirect (operation, "start_y", gradient, "start-y");
gegl_operation_meta_redirect (operation, "end_x", gradient, "end-x");
gegl_operation_meta_redirect (operation, "end_y", gradient, "end-y");
gegl_operation_meta_redirect (operation, "start_color", gradient, "start-color");
gegl_operation_meta_redirect (operation, "end_color", gradient, "end-color");
/* Now save points to the various gegl nodes so we can rewire them in
* update_graph() later
*/
State *state = g_malloc0 (sizeof (State));
o->user_data = state;
state->input = input;
state->atopi = atopi;
state->atopg = atopg;
state->multiply = multiply;
state->multiplyb = multiplyb;
state->addition = addition;
state->subtract = subtract;
state->grainmerge = grainmerge;
state->grainextract = grainextract;
state->nopb = nopb;
state->nopg = nopg;
state->nopimage = nopimage;
state->nopm = nopm;
state->nopig = nopig;
state->over = over;
state->crop = crop;
state->mbd = mbd;
state->mcol = mcol;
state->innerglow = innerglow;
state->stroke = stroke;
state->ds = ds;
state->output = output;
state->image = image;
state->gradient = gradient;
}
static void
gegl_op_class_init (GeglOpClass *klass)
{
GeglOperationClass *operation_class;
operation_class = GEGL_OPERATION_CLASS (klass);
GeglOperationMetaClass *operation_meta_class = GEGL_OPERATION_META_CLASS (klass);
operation_class->attach = attach;
operation_meta_class->update = update_graph;
gegl_operation_class_set_keys (operation_class,
"name", "gegl:effects",
"title", _("GEGL Effects"),
"categories", "Generic",
"reference-hash", "45ed565h8500fca01b2ac",
"description", _("GEGL text stying and speciality image outlining filter. Text recoloring only works if the color is white "
""),
NULL);
}
#endif
Login
Register
Tweets
FAQ
Advanced Search
