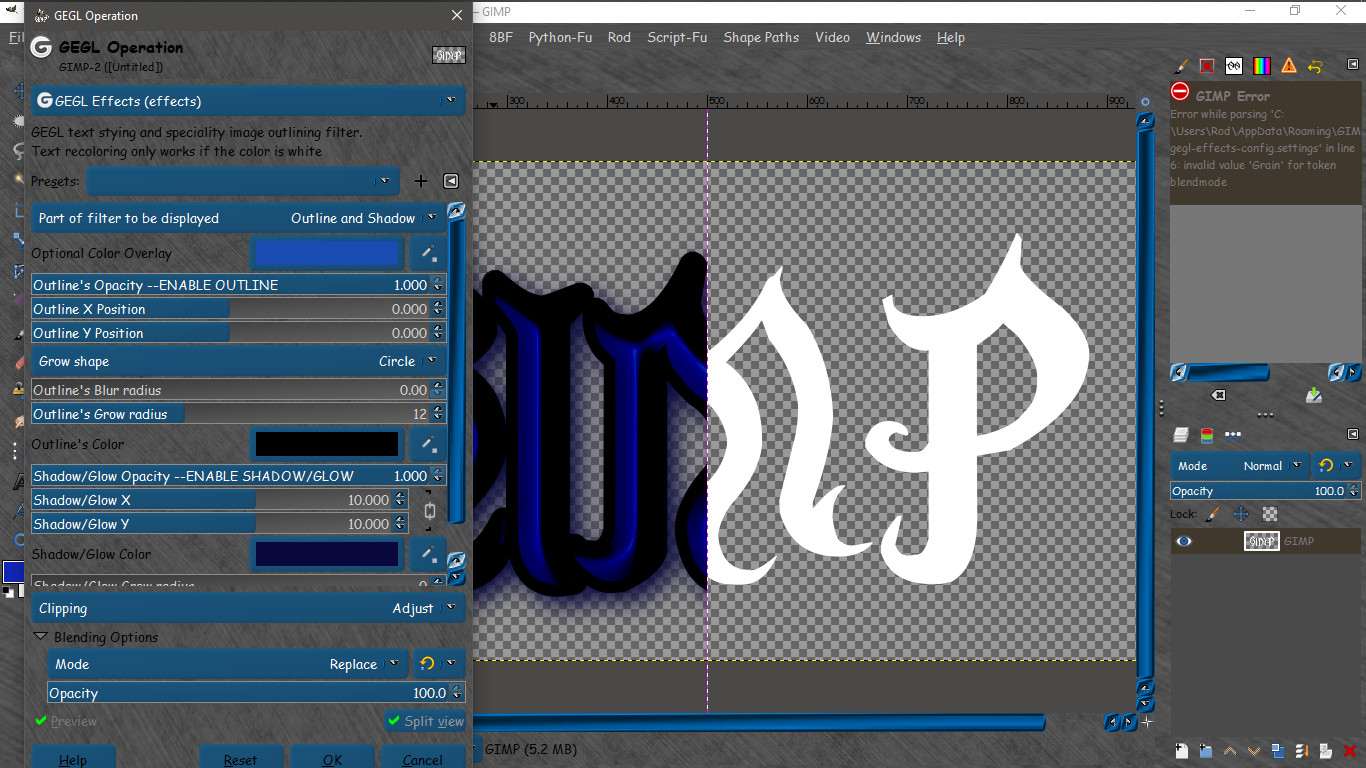

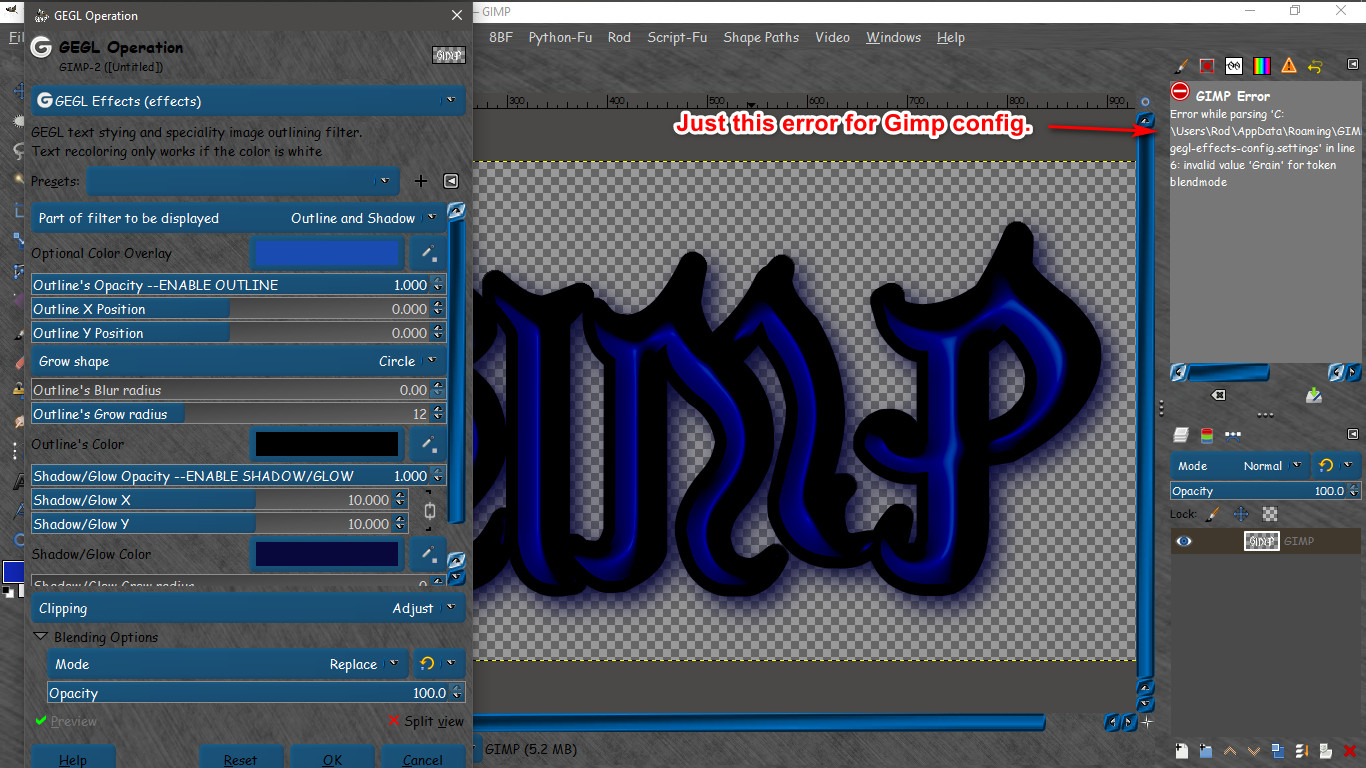

All done. Someone needs to do beta test on Windows before I can post it on Github.     Bevel, Inner Glow and Gradient have blend mode switching abilities and Image overlay has GEGL Hue Chroma built into its virtual layer. It appears to work perfect on Linux but someone needs to beta test Windows. If successful this will be a release of the new revamped GEGL Effects. Here's the code. /* This file is an image processing operation for GEGL
*
* GEGL is free software; you can redistribute it and/or
* modify it under the terms of the GNU Lesser General Public
* License as published by the Free Software Foundation; either
* version 3 of the License, or (at your option) any later version.
*
* GEGL is distributed in the hope that it will be useful,
* but WITHOUT ANY WARRANTY; without even the implied warranty of
* MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the GNU
* Lesser General Public License for more details.
*
* You should have received a copy of the GNU Lesser General Public
* License along with GEGL; if not, see <https://www.gnu.org/licenses/>.
*
* Copyright 2006 Øyvind Kolås <pippin@gimp.org>
*2022 Beaver GEGL Effects
* 2022 Liam (for helping give Inner Glow a disable checkbox)
*/
#include "config.h"
#include <glib/gi18n-lib.h>
#ifdef GEGL_PROPERTIES
enum_start (gegl_blend_mode_type_effects)
enum_value (GEGL_BLEND_MODE_TYPE_MULTIPLY, "Multiply",
N_("Multiply"))
enum_value (GEGL_BLEND_MODE_TYPE_GRAINMERGE, "Grain Merge",
N_("Grain Merge"))
enum_value (GEGL_BLEND_MODE_TYPE_SUBTRACT, "Subtract",
N_("Subtract"))
enum_value (GEGL_BLEND_MODE_TYPE_GRAINEXTRACT, "Grain Extract",
N_("Grain Extract"))
enum_end (GeglBlendModeType)
enum_start (gegl_blend_mode_type_effectsig)
enum_value (GEGL_BLEND_MODE_TYPE_OVER, "Over",
N_("Over"))
enum_value (GEGL_BLEND_MODE_TYPE_GRAINMERGEIG, "Grain Merge",
N_("Grain Merge"))
enum_value (GEGL_BLEND_MODE_TYPE_ADDITION, "Addition",
N_("Addition"))
enum_value (GEGL_BLEND_MODE_TYPE_SOFTLIGHTIG, "Softlight",
N_("Softlight"))
enum_value (GEGL_BLEND_MODE_TYPE_SCREENIG, "Screen",
N_("Screen"))
enum_value (GEGL_BLEND_MODE_TYPE_MULTIPLYIG, "Multiply",
N_("Multiply"))
enum_value (GEGL_BLEND_MODE_TYPE_HSLCOLORIG, "HSL Color",
N_("HSL Color"))
enum_value (GEGL_BLEND_MODE_TYPE_OVERLAYIG, "Overlay",
N_("Overlay"))
enum_value (GEGL_BLEND_MODE_TYPE_LINEARLIGHTIG, "LinearLight",
N_("LinearLight"))
enum_end (GeglBlendModeTypeig)
enum_start (gegl_blend_mode_type_effectsg)
enum_value (GEGL_BLEND_MODE_TYPE_ATOPG, "Over",
N_("Over"))
enum_value (GEGL_BLEND_MODE_TYPE_GRAINMERGEG, "Grain Merge",
N_("Grain Merge"))
enum_value (GEGL_BLEND_MODE_TYPE_ADDITIONG, "Addition",
N_("Addition"))
enum_value (GEGL_BLEND_MODE_TYPE_SOFTLIGHTG, "Softlight",
N_("Softlight"))
enum_value (GEGL_BLEND_MODE_TYPE_SCREENG, "Screen",
N_("Screen"))
enum_value (GEGL_BLEND_MODE_TYPE_MULTIPLYG, "Multiply",
N_("Multiply"))
enum_value (GEGL_BLEND_MODE_TYPE_HSLCOLORG, "HSL Color",
N_("HSL Color"))
enum_value (GEGL_BLEND_MODE_TYPE_OVERLAYG, "Overlay",
N_("Overlay"))
enum_value (GEGL_BLEND_MODE_TYPE_LINEARLIGHTG, "Linear Light",
N_("Linear Light"))
enum_value (GEGL_BLEND_MODE_TYPE_HSVHUEG, "HSV Hue",
N_("HSV Hue"))
enum_end (GeglBlendModeTypeg)
enum_start (guichangeenum)
enum_value (BEAVER_UI_STROKESHADOW, "strokeshadow", N_("Outline and Shadow"))

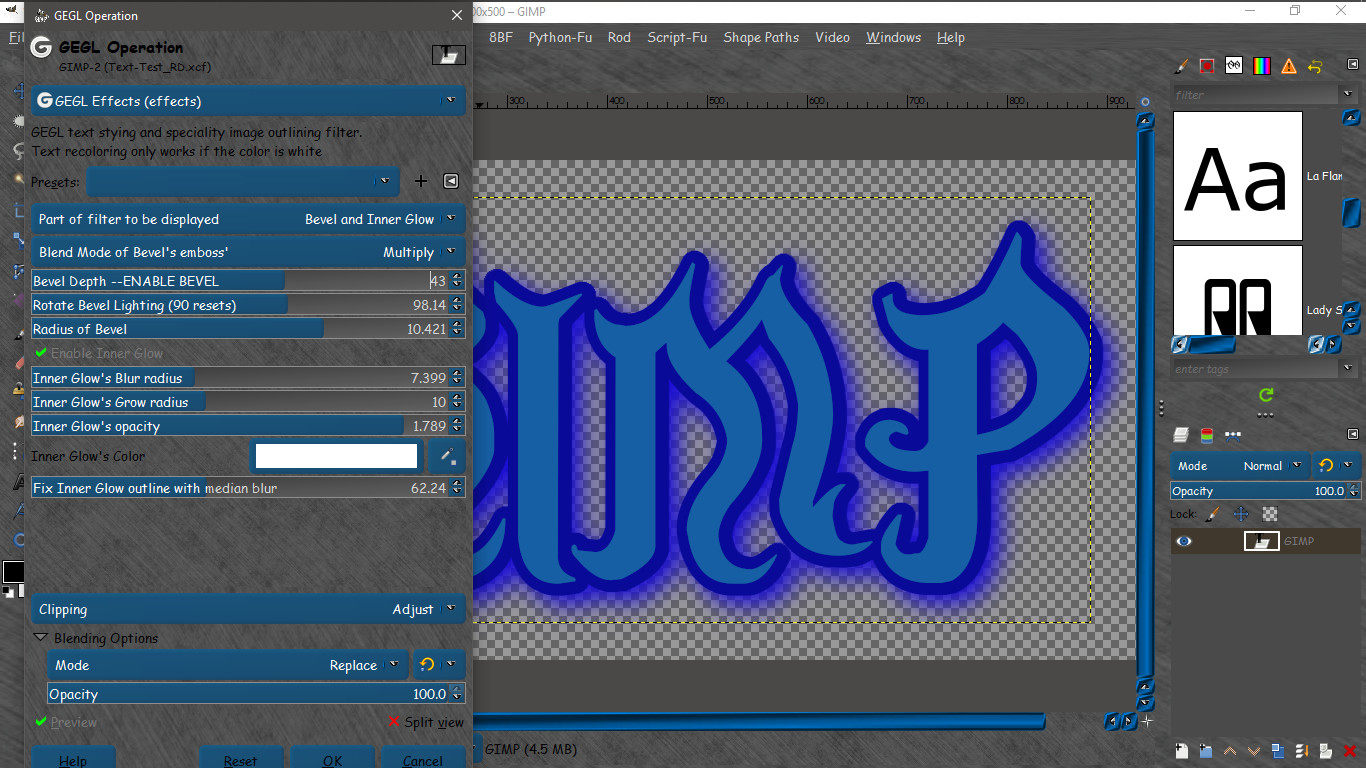

enum_value (BEAVER_UI_INNERGLOWBEVEL, "innerglowbevel", N_("Bevel and Inner Glow"))

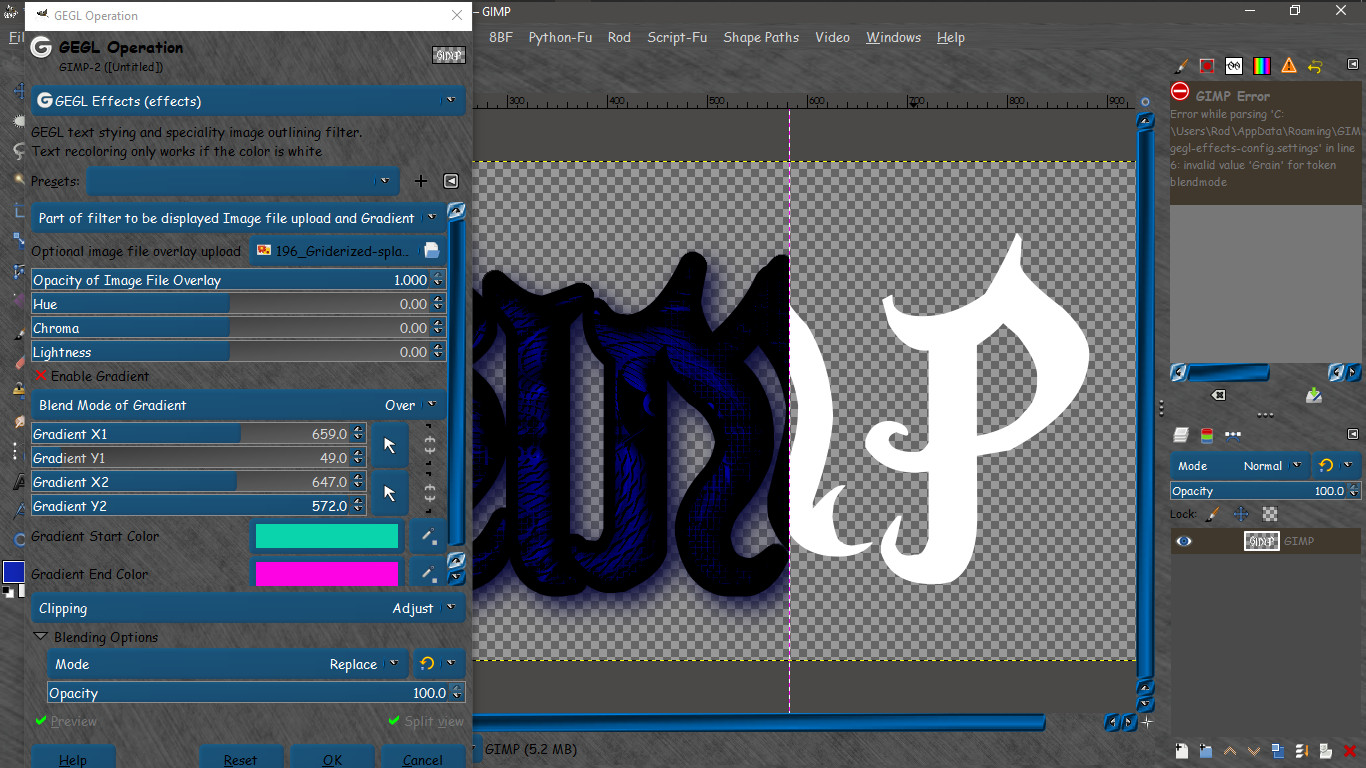

enum_value (BEAVER_UI_IMAGEGRADIENT, "imagegradient", N_("Image file upload and Gradient"))
enum_end (guiend)
property_enum(guichange, _("Part of filter to be displayed"),
guiend, guichangeenum,
BEAVER_UI_STROKESHADOW)
description(_("Change the GUI option"))
property_enum (blendmode, _("Blend Mode of Bevel's emboss'"),
GeglBlendModeType, gegl_blend_mode_type_effects,
GEGL_BLEND_MODE_TYPE_MULTIPLY)
ui_meta ("visible", "guichange {innerglowbevel}")
property_file_path(src, _("Optional image file overlay upload "), "")
description (_("Source image file path (png, jpg, raw, svg, bmp, tif, ...)"))
ui_meta ("visible", "guichange {imagegradient}")
property_double(layeropacity, _("Opacity of Image File Overlay"), 1.0)
value_range (0.0, 1.0)
ui_meta ("visible", "guichange {imagegradient}")
property_color (optioncolor, _("Optional Color Overlay"), "#ffffff")
ui_meta ("visible", "guichange {strokeshadow}")
property_int (depth, _("Bevel Depth --ENABLE BEVEL"), 1)
description (_("Filter width"))
value_range (1, 70)
ui_meta ("visible", "guichange {innerglowbevel}")
property_double (bevel1, _("Rotate Bevel Lighting (90 resets)"), 90.0)
description (_("Elevation angle (degrees)"))
value_range (55, 125)
ui_meta ("unit", "degree")
ui_meta ("visible", "guichange {innerglowbevel}")
property_double (radius1, _("Radius of Bevel"), 7.0)
value_range (7, 12.0)
ui_range (1.0, 12)
ui_gamma (1.5)
ui_meta ("visible", "guichange {innerglowbevel}")
property_double (opacitystroke, _("Outline's Opacity --ENABLE OUTLINE"), 0.0)
value_range (0.0, 1.0)
ui_steps (0.01, 0.10)
ui_meta ("visible", "guichange {strokeshadow}")
/* Should correspond to GeglMedianBlurNeighborhood in median-blur.c */
enum_start (gegl_stroke_grow_shapes)
enum_value (GEGL_stroke_GROW_SHAPE_SQUARE, "square", N_("Square"))
enum_value (GEGL_stroke_GROW_SHAPE_CIRCLE, "circle", N_("Circle"))
enum_value (GEGL_stroke_GROW_SHAPE_DIAMOND, "diamond", N_("Diamond"))
enum_end (GeglstrokeGrowShapes)
property_double (xstroke, _("Outline X Position"), 0.0)
description (_("Horizontal shadow offset"))
ui_range (-10.0, 10.0)
ui_steps (1, 10)
ui_meta ("visible", "guichange {strokeshadow}")
property_double (ystroke, _("Outline Y Position"), 0.0)
description (_("Vertical shadow offset"))
ui_range (-10.0, 10.0)
ui_steps (1, 10)
ui_meta ("visible", "guichange {strokeshadow}")
property_enum (grow_shape, _("Grow shape"),
GeglstrokeGrowShapes, gegl_stroke_grow_shapes,
GEGL_stroke_GROW_SHAPE_CIRCLE)
description (_("The shape to expand or contract the stroke in"))
ui_meta ("visible", "guichange {strokeshadow}")
property_double (radiusstroke, _("Outline's Blur radius"), 0.0)
value_range (0.0, 2)
ui_range (0.0, 300.0)
ui_steps (1, 5)
ui_gamma (1.5)
ui_meta ("unit", "pixel-distance")
ui_meta ("visible", "guichange {strokeshadow}")
property_double (grow_radiusstroke, _("Outline's Grow radius"), 12.0)
value_range (0.0, 100.0)
ui_range (0.0, 50.0)
ui_digits (0)
ui_steps (1, 5)
ui_gamma (1.5)
ui_meta ("unit", "pixel-distance")
description (_("The distance to expand the stroke before blurring; a negative value will contract the stroke instead"))
ui_meta ("visible", "guichange {strokeshadow}")
property_color (colorstroke, _("Outline's Color"), "#k")
/* TRANSLATORS: the string 'black' should not be translated */
description (_("The shadow's color (defaults to 'black')"))
ui_meta ("role", "color-primary")
ui_meta ("visible", "guichange {strokeshadow}")
property_double (opacity, _("Shadow/Glow Opacity --ENABLE SHADOW/GLOW"), 0.0)
value_range (0.0, 1.0)
ui_steps (0.01, 0.10)
ui_meta ("visible", "guichange {strokeshadow}")
property_double (hue, _("Hue"), 0.0)
description (_("Hue adjustment"))
value_range (-180.0, 180.0)
ui_meta ("visible", "guichange {imagegradient}")
property_double (chroma, _("Chroma"), 0.0)
description (_("Chroma adjustment"))
value_range (-100.0, 100.0)
ui_meta ("visible", "guichange {imagegradient}")
property_double (lightness, _("Lightness"), 0.0)
description (_("Lightness adjustment"))
value_range (-100.0, 100.0)
ui_meta ("visible", "guichange {imagegradient}")
property_double (x, _("Shadow/Glow X"), 10.0)
description (_("Horizontal shadow offset"))
ui_range (-40.0, 40.0)
ui_steps (1, 10)
ui_meta ("unit", "pixel-distance")
ui_meta ("axis", "x")
ui_meta ("visible", "guichange {strokeshadow}")
property_double (y, _("Shadow/Glow Y"), 10.0)
description (_("Vertical shadow offset"))
ui_range (-40.0, 40.0)
ui_steps (1, 10)
ui_meta ("unit", "pixel-distance")
ui_meta ("axis", "y")
ui_meta ("visible", "guichange {strokeshadow}")
property_color (color, _("Shadow/Glow Color"), "black")
/* TRANSLATORS: the string 'black' should not be translated */
description (_("The shadow's color (defaults to 'black')"))
ui_meta ("visible", "guichange {strokeshadow}")
/* It does make sense to sometimes have opacities > 1 (see GEGL logo
* for example)
*/
property_double (grow_radius, _("Shadow/Glow Grow radius"), 0.0)
value_range (0.0, 100.0)
ui_range (0.0, 50.0)
ui_digits (0)
ui_steps (1, 5)
ui_gamma (1.5)
ui_meta ("unit", "pixel-distance")
description (_("The distance to expand the shadow before blurring; a negative value will contract the shadow instead"))
ui_meta ("visible", "guichange {strokeshadow}")
property_double (radius, _("Shadow/Glow Blur radius"), 12.0)
value_range (0.0, G_MAXDOUBLE)
ui_range (0.0, 300.0)
ui_steps (1, 5)
ui_gamma (1.5)
ui_meta ("unit", "pixel-distance")
ui_meta ("visible", "guichange {strokeshadow}")
property_boolean (innerglow, _("Enable Inner Glow"), FALSE)
description (_("Whether to add an inner glow effect, which can be slow"))
ui_meta ("visible", "guichange {innerglowbevel}")
property_enum (blendmodeig, _("Blend Mode of Inner Glow"),
GeglBlendModeTypeig, gegl_blend_mode_type_effectsig,
GEGL_BLEND_MODE_TYPE_OVER)
ui_meta ("visible", "guichange {innerglowbevel}")
property_double (innergradius, _("Inner Glow's Blur radius"), 13.0)
value_range (0.0, 30.0)
ui_range (0.0, 30.0)
ui_steps (1, 5)
ui_gamma (1.5)
ui_meta ("unit", "pixel-distance")
ui_meta ("visible", "guichange {innerglowbevel}")
property_double (innerggrow_radius, _("Inner Glow's Grow radius"), 5)
value_range (1, 30.0)
ui_range (1, 30.0)
ui_digits (0)
ui_steps (1, 5)
ui_gamma (1.5)
ui_meta ("unit", "pixel-distance")
description (_("The distance to expand the shadow before blurring; a negative value will contract the shadow instead"))
ui_meta ("visible", "guichange {innerglowbevel}")
property_double (innergopacity, _("Inner Glow's opacity"), 1.4)
value_range (0.0, 2.0)
ui_steps (0.01, 0.10)
ui_meta ("visible", "guichange {innerglowbevel}")
property_color (innergvalue, _("Inner Glow's Color"), "#ff8f00")
description (_("The color to paint over the input"))
ui_meta ("visible", "guichange {innerglowbevel}")
property_double (fixoutline, _("Fix Inner Glow outline with median blur"), 69)
value_range (50, 79)
description (_("Neighborhood alpha percentile"))
ui_meta ("visible", "guichange {innerglowbevel}")
property_boolean (gradient, _("Enable Gradient"), FALSE)
description (_("Whether to add Gradient overlay"))
ui_meta ("visible", "guichange {imagegradient}")
property_enum (blendmodeg, _("Blend Mode of Gradient"),
GeglBlendModeTypeg, gegl_blend_mode_type_effectsg,
GEGL_BLEND_MODE_TYPE_OVER)
ui_meta ("visible", "guichange {imagegradient}")
property_double (start_x, _("Gradient X1"), 659.0)
ui_meta("unit", "pixel-coordinate")
ui_meta("axis", "x")
ui_meta ("visible", "guichange {imagegradient}")
property_double (start_y, _("Gradient Y1"), 49.0)
ui_meta("unit", "pixel-coordinate")
ui_meta("axis", "y")
ui_meta ("visible", "guichange {imagegradient}")
property_double (end_x, _("Gradient X2"), 647.0)
ui_meta("unit", "pixel-coordinate")
ui_meta("axis", "x")
ui_meta ("visible", "guichange {imagegradient}")
property_double (end_y, _("Gradient Y2"), 572.0)
ui_meta ("unit", "pixel-coordinate")
ui_meta ("axis", "y")
ui_meta ("visible", "guichange {imagegradient}")
property_color (start_color, _("Gradient Start Color"), "#34ebd6")
description (_("The color at (x1, y1)"))
ui_meta ("visible", "guichange {imagegradient}")
property_color (end_color, _("Gradient End Color"), "#fe18f2")
description (_("The color at (x2, y2)"))
ui_meta ("visible", "guichange {imagegradient}")
#else
#define GEGL_OP_META
#define GEGL_OP_NAME gegleffects
#define GEGL_OP_C_SOURCE gegleffects.c
#include "gegl-op.h"
/* Typedef Structure for Bevel's blend mode switching '*/
typedef struct
{
GeglNode *input;
GeglNode *atopi;
GeglNode *atopg;
GeglNode *over;
GeglNode *crop;
GeglNode *mbd;
GeglNode *mcol;
GeglNode *nopig;
GeglNode *nopm;
GeglNode *nopb;
GeglNode *nopg;
GeglNode *linearlightig;
GeglNode *nopimage;
GeglNode *multiply;
GeglNode *subtract;
GeglNode *addition;
GeglNode *overlayig;
GeglNode *softlightig;
GeglNode *hslcolorig;
GeglNode *screenig;
GeglNode *multiplyig;
GeglNode *grainextract;
GeglNode *grainmerge;
GeglNode *grainmergeig;
GeglNode *multiplyb;
GeglNode *innerglow;
GeglNode *stroke;
GeglNode *ds;
GeglNode *output;
GeglNode *image;
GeglNode *gradient;
GeglNode *overlayg;
GeglNode *additiong;
GeglNode *softlightg;
GeglNode *hslcolorg;
GeglNode *screeng;
GeglNode *multiplyg;
GeglNode *grainmergeg;
GeglNode *hsvhueg;
GeglNode *linearlightg;
GeglNode *saturation;
} State;
static void
update_graph (GeglOperation *operation)
{
GeglProperties *o = GEGL_PROPERTIES (operation);
State *state = o->user_data;
GeglNode *multiplyb;
GeglNode *over;
GeglNode *atopg;
if (!state) return;
multiplyb = state->multiply; /* the default */
switch (o->blendmode) {
case GEGL_BLEND_MODE_TYPE_MULTIPLY: multiplyb = state->multiplyb; break;
case GEGL_BLEND_MODE_TYPE_GRAINMERGE: multiplyb = state->grainmerge; break;
case GEGL_BLEND_MODE_TYPE_SUBTRACT: multiplyb = state->subtract; break;
case GEGL_BLEND_MODE_TYPE_GRAINEXTRACT: multiplyb = state->grainextract; break;
}
over = state->over; /* the default */
switch (o->blendmodeig) {
case GEGL_BLEND_MODE_TYPE_OVER: over = state->over; break;
case GEGL_BLEND_MODE_TYPE_GRAINMERGEIG: over = state->grainmergeig; break;
case GEGL_BLEND_MODE_TYPE_ADDITION: over = state->addition; break;
case GEGL_BLEND_MODE_TYPE_SOFTLIGHTIG: over = state->softlightig; break;
case GEGL_BLEND_MODE_TYPE_SCREENIG: over = state->screenig; break;
case GEGL_BLEND_MODE_TYPE_MULTIPLYIG: over = state->multiplyig; break;
case GEGL_BLEND_MODE_TYPE_HSLCOLORIG: over = state->hslcolorig; break;
case GEGL_BLEND_MODE_TYPE_OVERLAYIG: over = state->overlayig; break;
case GEGL_BLEND_MODE_TYPE_LINEARLIGHTIG: over = state->linearlightig; break;
}
atopg = state->atopg; /* the default */
switch (o->blendmodeg) {
case GEGL_BLEND_MODE_TYPE_ATOPG: atopg = state->atopg; break;
case GEGL_BLEND_MODE_TYPE_GRAINMERGEG: atopg = state->grainmergeg; break;
case GEGL_BLEND_MODE_TYPE_ADDITIONG: atopg = state->additiong; break;
case GEGL_BLEND_MODE_TYPE_SOFTLIGHTG: atopg = state->softlightg; break;
case GEGL_BLEND_MODE_TYPE_SCREENG: atopg = state->screeng; break;
case GEGL_BLEND_MODE_TYPE_MULTIPLYG: atopg = state->multiplyg; break;
case GEGL_BLEND_MODE_TYPE_HSLCOLORG: atopg = state->hslcolorg; break;
case GEGL_BLEND_MODE_TYPE_OVERLAYG: atopg = state->overlayg; break;
case GEGL_BLEND_MODE_TYPE_LINEARLIGHTG: atopg = state->linearlightg; break;
case GEGL_BLEND_MODE_TYPE_HSVHUEG: atopg = state->hsvhueg; break;
}
if (o->innerglow)
{
if (o->gradient)
{
/* both innerglow and gradient */
gegl_node_link_many (state->input, state->nopimage, state->atopi, state->nopg, atopg, state->crop, state->nopb, multiplyb, state->nopm, state->multiply, state->nopig, over, state->stroke, state->ds, state->output, NULL);
gegl_node_link_many (state->nopg, state->gradient, NULL);
gegl_node_link_many (state->nopimage, state->image, state->saturation, NULL);
gegl_node_link_many (state->nopig, state->innerglow, NULL);
gegl_node_link_many (state->nopb, state->mbd, NULL);
gegl_node_link_many (state->nopm, state->mcol, NULL);
gegl_node_connect_from (multiplyb, "aux", state->mbd, "output");
gegl_node_connect_from (state->multiply, "aux", state->mcol, "output");
gegl_node_connect_from (over, "aux", state->innerglow, "output");
gegl_node_connect_from (atopg, "aux", state->gradient, "output");
gegl_node_connect_from (state->atopi, "aux", state->saturation, "output");
}
else
{
/* innerglow but no gradient */
gegl_node_link_many (state->input, state->nopimage, state->atopi, state->crop, state->nopb, multiplyb, state->nopm, state->multiply, state->nopig, over, state->stroke, state->ds, state->output, NULL);
gegl_node_link_many (state->nopimage, state->image, state->saturation, NULL);
gegl_node_link_many (state->nopig, state->innerglow, NULL);
gegl_node_link_many (state->nopb, state->mbd, NULL);
gegl_node_link_many (state->nopm, state->mcol, NULL);
gegl_node_connect_from (multiplyb, "aux", state->mbd, "output");
gegl_node_connect_from (state->multiply, "aux", state->mcol, "output");
gegl_node_connect_from (over, "aux", state->innerglow, "output");
gegl_node_connect_from (state->atopi, "aux", state->saturation, "output");
}
}
else
{
if (o->gradient)
{
/* gradient but no innerglow */
gegl_node_link_many (state->input, state->nopimage, state->atopi, state->nopg, atopg, state->crop, state->nopb, multiplyb, state->nopm, state->multiply, state->stroke, state->ds, state->output, NULL);
gegl_node_link_many (state->nopg, state->gradient, NULL);
gegl_node_link_many (state->nopimage, state->image, state->saturation, NULL);
gegl_node_link_many (state->nopb, state->mbd, NULL);
gegl_node_link_many (state->nopm, state->mcol, NULL);
gegl_node_connect_from (multiplyb, "aux", state->mbd, "output");
gegl_node_connect_from (state->multiply, "aux", state->mcol, "output");
gegl_node_connect_from (atopg, "aux", state->gradient, "output");
gegl_node_connect_from (state->atopi, "aux", state->saturation, "output");
}
else
{
/* neither gradient nor innerglow */
gegl_node_link_many (state->input, state->nopimage, state->atopi, state->crop, state->nopb, multiplyb, state->nopm, state->multiply, state->stroke, state->ds, state->output, NULL);
gegl_node_link_many (state->nopimage, state->image, state->saturation, NULL);
gegl_node_link_many (state->nopb, state->mbd, NULL);
gegl_node_link_many (state->nopm, state->mcol, NULL);
gegl_node_connect_from (multiplyb, "aux", state->mbd, "output");
gegl_node_connect_from (state->multiply, "aux", state->mcol, "output");
gegl_node_connect_from (state->atopi, "aux", state->saturation, "output");
}
}
}
/* End of Typedef Structure for Bevel's blend mode switching '*/
/*Typedef Structure for InnerGlow and Gradient Checkboxes '*/
static void attach (GeglOperation *operation)
{
GeglNode *gegl = operation->node;
GeglProperties *o = GEGL_PROPERTIES (operation);
GeglNode *input, *output, *image, *mbd, *nopig, *multiplyb, *nopm, *over, *multiply, *grainextract, *hslcolorig, *overlayig, *softlightig, *screenig, *linearlightig, *multiplyig, *grainmerge, *grainmergeig, *addition, *subtract, *nopb, *mcol, *stroke, *innerglow, *gradient, *crop, *ds, *nopimage, *atopi, *nopg, *atopg, *hslcolorg, *overlayg, *additiong, *softlightg, *screeng, *multiplyg, *hsvhueg, *linearlightg, *grainmergeg, *saturation;
input = gegl_node_get_input_proxy (gegl, "input");
output = gegl_node_get_output_proxy (gegl, "output");
saturation = gegl_node_new_child (gegl,
"operation", "gegl:hue-chroma",
NULL);
image = gegl_node_new_child (gegl,
"operation", "gegl:layer",
NULL);
stroke = gegl_node_new_child (gegl,
"operation", "gegl:dropshadow",
NULL);
ds = gegl_node_new_child (gegl,
"operation", "gegl:dropshadow",
NULL);
innerglow = gegl_node_new_child (gegl,
"operation", "gegl:innerglow",
NULL);
/*atopi is the blend mode that will need to be switchable for gegl:layer src=*/
atopi = gegl_node_new_child (gegl,
"operation", "gegl:src-atop",
NULL);
/*atopg is the blend mode that will need to be switchable for gegl:linear-gradient*/
atopg = gegl_node_new_child (gegl,
"operation", "gegl:src-atop",
NULL);
/*When we finally get around to adding an enum list so blend modes can change*/
/*atopg = gegl_node_new_child (gegl,
"operation", "gimp:layer-mode", "layer-mode", 23, "composite-mode", 0, NULL);*/
mbd = gegl_node_new_child (gegl,
"operation", "gegl:bevel",
NULL);
mcol = gegl_node_new_child (gegl,
"operation", "gegl:color-overlay",
NULL);
nopm = gegl_node_new_child (gegl,
"operation", "gegl:nop",
NULL);
nopimage = gegl_node_new_child (gegl,
"operation", "gegl:nop",
NULL);
nopb = gegl_node_new_child (gegl,
"operation", "gegl:nop",
NULL);
nopig = gegl_node_new_child (gegl,
"operation", "gegl:nop",
NULL);
nopg = gegl_node_new_child (gegl,
"operation", "gegl:nop",
NULL);
/*multiply is the blend mode that will need to be switchable for gegl:color-overlay*/
multiply = gegl_node_new_child (gegl,
"operation", "gegl:multiply",
NULL);
/*multiplyb is the blend mode that will need to be switchable for gegl:bevel*/
multiplyb = gegl_node_new_child (gegl,
"operation", "gegl:multiply",
NULL);
gradient = gegl_node_new_child (gegl,
"operation", "gegl:linear-gradient",
NULL);
/* 0 is Gimp blend mode (Normal) */
/* 47 is Gimp blend mode (Grain Merge) */
/* 23 is Gimp blend mode (Overlay) */
/*over = gegl_node_new_child (gegl,
"operation", "gimp:layer-mode", "layer-mode", 0, "composite-mode", 0, NULL);*/
/*over is the blend mode that will need to be switchable for gegl:innerglow*/
over = gegl_node_new_child (gegl,
"operation", "gegl:src-atop",
NULL);
crop = gegl_node_new_child (gegl,
"operation", "gegl:crop",
NULL);
/* grainextract, grainmerge, and subtract are for bevel and cannot be reused*/
grainextract = gegl_node_new_child (gegl,
"operation", "gimp:layer-mode", "layer-mode", 46, "composite-mode", 0, NULL);
grainmerge = gegl_node_new_child (gegl,
"operation", "gimp:layer-mode", "layer-mode", 47, "composite-mode", 0, NULL);
subtract = gegl_node_new_child (gegl,
"operation", "gimp:layer-mode", "layer-mode", 34, "composite-mode", 0, NULL);
/* grainextract, grainmerge, and subtract are for bevel and cannot be reused - ends here */
grainmergeig = gegl_node_new_child (gegl,
"operation", "gimp:layer-mode", "layer-mode", 47, "composite-mode", 0, NULL);
addition = gegl_node_new_child (gegl,
"operation", "gimp:layer-mode", "layer-mode", 33, "composite-mode", 0, NULL);
overlayig = gegl_node_new_child (gegl,
"operation", "gimp:layer-mode", "layer-mode", 23, "composite-mode", 0, NULL);
multiplyig = gegl_node_new_child (gegl,
"operation", "gimp:layer-mode", "layer-mode", 30, "composite-mode", 0, NULL);
screenig = gegl_node_new_child (gegl,
"operation", "gimp:layer-mode", "layer-mode", 31, "composite-mode", 0, NULL);
hslcolorig = gegl_node_new_child (gegl,
"operation", "gimp:layer-mode", "layer-mode", 39, "composite-mode", 0, NULL);
softlightig = gegl_node_new_child (gegl,
"operation", "gimp:layer-mode", "layer-mode", 45, "composite-mode", 0, NULL);
linearlightig = gegl_node_new_child (gegl,
"operation", "gimp:layer-mode", "layer-mode", 50, "composite-mode", 0, NULL);
/* Blend modes below are for gradient*/
grainmergeg = gegl_node_new_child (gegl,
"operation", "gimp:layer-mode", "layer-mode", 47, "composite-mode", 0, NULL);
additiong = gegl_node_new_child (gegl,
"operation", "gimp:layer-mode", "layer-mode", 33, "composite-mode", 0, NULL);
overlayg = gegl_node_new_child (gegl,
"operation", "gimp:layer-mode", "layer-mode", 23, "composite-mode", 0, NULL);
multiplyg = gegl_node_new_child (gegl,
"operation", "gimp:layer-mode", "layer-mode", 30, "composite-mode", 0, NULL);
screeng = gegl_node_new_child (gegl,
"operation", "gimp:layer-mode", "layer-mode", 31, "composite-mode", 0, NULL);
hslcolorg = gegl_node_new_child (gegl,
"operation", "gimp:layer-mode", "layer-mode", 39, "composite-mode", 0, NULL);
softlightg = gegl_node_new_child (gegl,
"operation", "gimp:layer-mode", "layer-mode", 45, "composite-mode", 0, NULL);
hsvhueg = gegl_node_new_child (gegl,
"operation", "gimp:layer-mode", "layer-mode", 37, "composite-mode", 0, NULL);
linearlightg = gegl_node_new_child (gegl,
"operation", "gimp:layer-mode", "layer-mode", 50, "composite-mode", 0, NULL);
gegl_node_link_many (input, nopimage, atopi, nopg, atopg, crop, nopb, multiplyb, nopm, multiply, nopig, over, stroke, ds, output, NULL);
gegl_node_link_many (nopimage, image, NULL);
gegl_node_link_many (nopg, gradient, NULL);
gegl_node_link_many (nopig, innerglow, NULL);
gegl_node_link_many (nopb, mbd, NULL);
gegl_node_link_many (nopm, mcol, NULL);
gegl_node_connect_from (multiplyb, "aux", mbd, "output");
gegl_node_connect_from (multiply, "aux", mcol, "output");
gegl_node_connect_from (over, "aux", innerglow, "output");
gegl_node_connect_from (atopi, "aux", image, "output");
gegl_node_connect_from (atopg, "aux", gradient, "output");
gegl_operation_meta_redirect (operation, "string", image, "string");
gegl_operation_meta_redirect (operation, "layeropacity", image, "opacity");
gegl_operation_meta_redirect (operation, "hue", saturation, "hue");
gegl_operation_meta_redirect (operation, "chroma", saturation, "chroma");
gegl_operation_meta_redirect (operation, "lightness", saturation, "lightness");
gegl_operation_meta_redirect (operation, "x", ds, "x");
gegl_operation_meta_redirect (operation, "y", ds, "y");
gegl_operation_meta_redirect (operation, "ystroke", stroke, "y");
gegl_operation_meta_redirect (operation, "xstroke", stroke, "x");
gegl_operation_meta_redirect (operation, "opacity", ds, "opacity");
gegl_operation_meta_redirect (operation, "grow_radius", ds, "grow-radius");
gegl_operation_meta_redirect (operation, "radius", ds, "radius");
gegl_operation_meta_redirect (operation, "color", ds, "color");
gegl_operation_meta_redirect (operation, "grow_shape", stroke, "grow-shape");
gegl_operation_meta_redirect (operation, "opacitystroke", stroke, "opacity");
gegl_operation_meta_redirect (operation, "radiusstroke", stroke, "radius");
gegl_operation_meta_redirect (operation, "grow_radiusstroke", stroke, "grow-radius");
gegl_operation_meta_redirect (operation, "colorstroke", stroke, "color");
gegl_operation_meta_redirect (operation, "depth", mbd, "bevel2");
gegl_operation_meta_redirect (operation, "radius1", mbd, "radius1");
gegl_operation_meta_redirect (operation, "bevel1", mbd, "bevel1");
gegl_operation_meta_redirect (operation, "optioncolor", mcol, "value");
gegl_operation_meta_redirect (operation, "src", image, "src");
gegl_operation_meta_redirect (operation, "innerggrow_radius", innerglow, "grow-radius");
gegl_operation_meta_redirect (operation, "innergradius", innerglow, "radius");
gegl_operation_meta_redirect (operation, "innergopacity", innerglow, "opacity");
gegl_operation_meta_redirect (operation, "innergvalue", innerglow, "value2");
gegl_operation_meta_redirect (operation, "fixoutline", innerglow, "fixoutline");
gegl_operation_meta_redirect (operation, "start_x", gradient, "start-x");
gegl_operation_meta_redirect (operation, "start_y", gradient, "start-y");
gegl_operation_meta_redirect (operation, "end_x", gradient, "end-x");
gegl_operation_meta_redirect (operation, "end_y", gradient, "end-y");
gegl_operation_meta_redirect (operation, "start_color", gradient, "start-color");
gegl_operation_meta_redirect (operation, "end_color", gradient, "end-color");
/* Now save points to the various gegl nodes so we can rewire them in
* update_graph() later
*/
State *state = g_malloc0 (sizeof (State));
o->user_data = state;
state->input = input;
state->atopi = atopi;
state->overlayig = overlayig;
state->screenig = screenig;
state->multiplyig = multiplyig;
state->softlightig = softlightig;
state->hslcolorig = hslcolorig;
state->atopg = atopg;
state->multiply = multiply;
state->multiplyb = multiplyb;
state->addition = addition;
state->subtract = subtract;
state->grainmerge = grainmerge;
state->grainmergeig = grainmergeig;
state->linearlightig = linearlightig;
state->grainextract = grainextract;
state->nopb = nopb;
state->nopg = nopg;
state->nopimage = nopimage;
state->nopm = nopm;
state->nopig = nopig;
state->over = over;
state->crop = crop;
state->mbd = mbd;
state->mcol = mcol;
state->innerglow = innerglow;
state->stroke = stroke;
state->ds = ds;
state->output = output;
state->image = image;
state->gradient = gradient;
state->grainmergeg = grainmergeg;
state->linearlightg = linearlightg;
state->overlayg = overlayg;
state->screeng = screeng;
state->multiplyg = multiplyg;
state->softlightg = softlightg;
state->hslcolorg = hslcolorg;
state->hsvhueg = hsvhueg;
state->additiong = additiong;
state->saturation = saturation;
}
static void
gegl_op_class_init (GeglOpClass *klass)
{
GeglOperationClass *operation_class;
operation_class = GEGL_OPERATION_CLASS (klass);
GeglOperationMetaClass *operation_meta_class = GEGL_OPERATION_META_CLASS (klass);
operation_class->attach = attach;
operation_meta_class->update = update_graph;
gegl_operation_class_set_keys (operation_class,
"name", "gegl:effects",
"title", _("GEGL Effects"),
"categories", "Generic",
"reference-hash", "45ed565h8500fca01b2ac",
"description", _("GEGL text stying and speciality image outlining filter. Text recoloring only works if the color is white "
""),
NULL);
}
#endif
It should NOT trigger an error everytime at start up. Only the first time. The error is because /config/GIMP/2.10/filters GimpGegl-gegl-effects-config.settings is changed so much that is no longer compatible with the previous version. Deleting this file should make the error permanently go away but it will break all GEGL Effects presets. For that reason I will release the last version of GEGL Effects prior to this update as "GEGL Effects (Legacy)" I still hope you guys prefer the new GEGL Effects to the legacy one. Please @Rod or anyone. The sooner this gets tested the sooner it can go on GitHub. I just need to be sure it doesn't trigger endless errors on Windows. It works fine on Linux.
Last edited by contrast_ on Fri Feb 23, 2024 12:31 am, edited 1 time in total.
|
|
Login
Register
Tweets
FAQ
Advanced Search
