GEGL Motion Noise plugin to create wood and metal textures

contrast_ · **Joined:** Oct 31, 2020 **Posts:** 1446

Plugin is officially here
https://github.com/LinuxBeaver/Noise_in ... /releases/

Download binaries and code here *march 27 update
download/file.php?id=74205

We are getting a new GEGL plugin soon called "Brushed Metal". It is not yet in development but here is its graph. I will document part of the process of making this plugin in order to help future GEGL plugin devs and once the plugin is done I will link the Github download.

Preview of Graph

Attachment:

brushed.png [ 646.85 KiB | Viewed 686 times ]

Syntax to create effect

Code: Select all

id=x
over aux=[ ref=x

color value=#59cbf3
noise-rgb red=1 green=1 blue=1  gaussian=true linear=true seed=223334
gray
]
crop

motion-blur length=70
unsharp-mask scale=3
opacity value=10
median-blur radius=0

Stay tuned.

contrast_ · **Joined:** Oct 31, 2020 **Posts:** 1446

The syntax selected will be made into sliders and color pick dialogs. Below is the planned name of the sliders. Two sliders will use the same gegl:motion-blur

Color
color value=#HTML_COLOR_HERE

Direction of Metal Stain
motion-blur angle=90

Length of metal stain
motion-blur length=70

Detail
unsharp-mask scale=3

Seed
noise-rgb seed=123456789

contrast_ · **Joined:** Oct 31, 2020 **Posts:** 1446

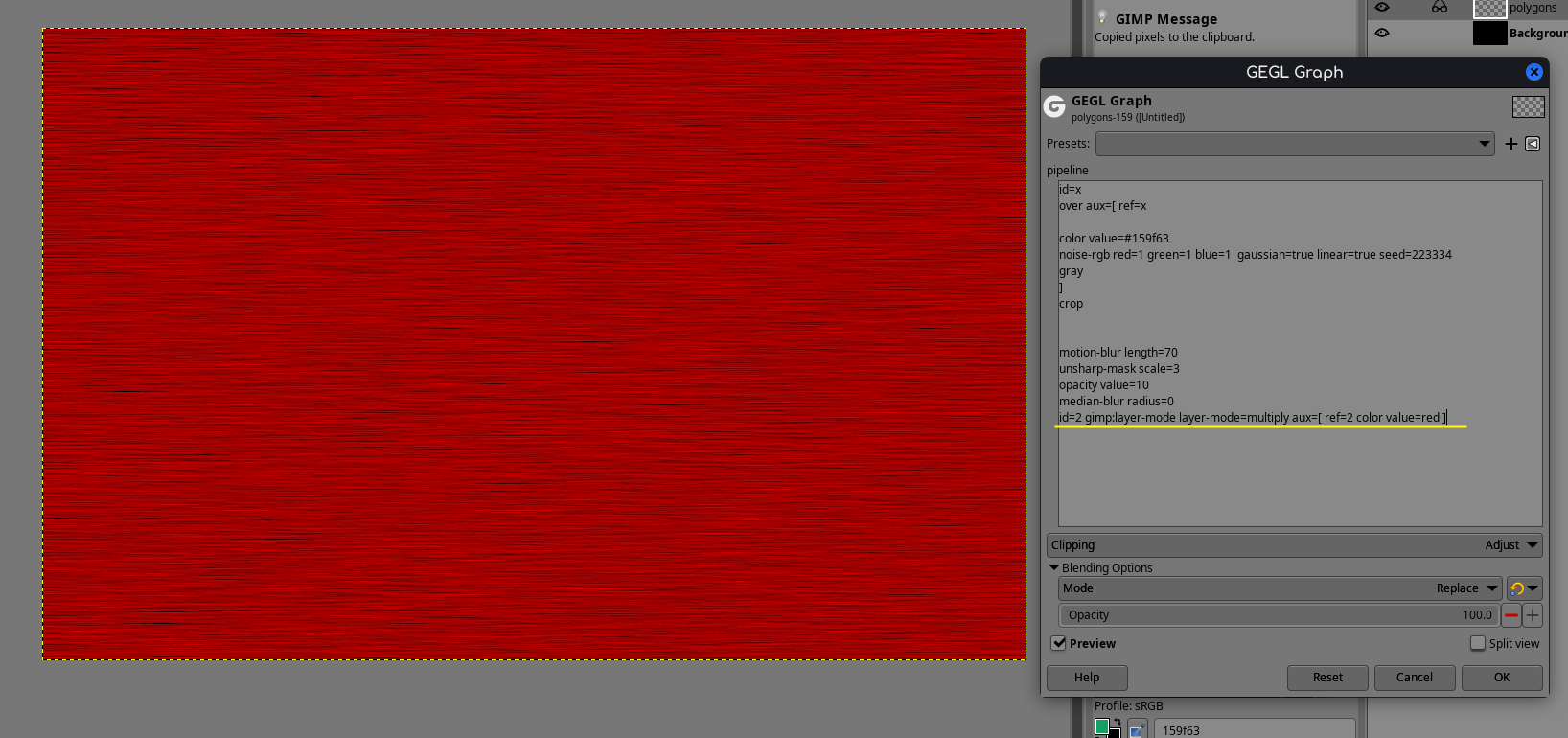

There is a problem. The color slider I originally intended is a hidden color and gegl:gray knocks out its effect. But without it the metal stain is less intense. To get a correct color overlay we need something like

id=2 multiply aux=[ ref=2 color value=red ]

Attachment:

color_overlay_metal_stain.png [ 575.29 KiB | Viewed 682 times ]

contrast_ · **Joined:** Oct 31, 2020 **Posts:** 1446

When brown this graph looks like wood. Maybe it should be renamed to "brushed metal and wood"

Attachment:

wood_when_brown.png [ 589.43 KiB | Viewed 647 times ]

PixLab · **Posted:** Sun Mar 24, 2024 10:33 pm **(#5)**

contrast_ wrote:

When brown this graph looks like wood. Maybe it should be renamed to "brushed metal and wood"

"Brushed Texture" should encompass everything going out of that filter (paper, plastic (~3D prints), whatnot), an orientation slider would be mandatory, as well as a "Tileable" option like in "Solid noise" IMO (every rendered texture should have this option IMHO)

Attachment:

screenshot_20240325-122700.jpg [ 34.95 KiB | Viewed 611 times ]

contrast_ · **Joined:** Oct 31, 2020 **Posts:** 1446

The GEGL nodes in attach have been listed. These are all the GEGL nodes this filter will use. Two of them have color properties attached (default and hidden color.) and Median Blur and Noise RGB have normal properties attached to them.

Code: Select all

static void attach (GeglOperation *operation)
{
  GeglNode *gegl = operation->node;
  GeglColor *hidden_color = gegl_color_new ("#a0a0a0");
  GeglColor *default_color = gegl_color_new ("#e98944");


    GeglNode *input    = gegl_node_get_input_proxy (gegl, "input");
    GeglNode *output   = gegl_node_get_output_proxy (gegl, "output");


    GeglNode *normal    = gegl_node_new_child (gegl,
                                  "operation", "gegl:over",
                                  NULL);
    GeglNode *idref    = gegl_node_new_child (gegl,
                                  "operation", "gegl:nop",
                                  NULL);
    GeglNode *hcolor    = gegl_node_new_child (gegl,
                                  "operation", "gegl:color", "value", hidden_color,
                                  NULL);
     GeglNode *noise   = gegl_node_new_child (gegl,
                                  "operation", "gegl:noise-rgb", "red", 1.0, "green", 1.0, "blue", 1.0, "gaussian", TRUE, "linear", TRUE,
                                  NULL);
     GeglNode *gray    = gegl_node_new_child (gegl,
                                  "operation", "gegl:gray",
                                  NULL);
     GeglNode *crop    = gegl_node_new_child (gegl,
                                  "operation", "gegl:crop",
                                  NULL);
     GeglNode *motion    = gegl_node_new_child (gegl,
                                  "operation", "gegl:motion-blur-linear",
                                  NULL);
     GeglNode *sharpen    = gegl_node_new_child (gegl,
                                  "operation", "gegl:unsharp-mask",
                                  NULL);
     GeglNode *opacity    = gegl_node_new_child (gegl,
                                  "operation", "gegl:opacity",
                                  NULL);
     GeglNode *endfix    = gegl_node_new_child (gegl,
                                  "operation", "gegl:median-blur", "radius", 0, "abyss-policy", 0,
                                  NULL);
     GeglNode *multiply    = gegl_node_new_child (gegl,
                                  "operation", "gegl:multiply",
                                  NULL);
     GeglNode *color    = gegl_node_new_child (gegl,
                                  "operation", "gegl:color", "value", default_color,
                                  NULL);

The UI strings for the filters properties has been filled out. This is the slider name and description area.

Code: Select all

#include "config.h"
#include <glib/gi18n-lib.h>

#ifdef GEGL_PROPERTIES

property_color (value, _("Color"), "#e98944")
    description (_("The color to paint over the brushed metal/wood. The default color makes wood"))

property_double (direction, _("Direction"), 0.0)
    description (_("Direction of brushed metal/wood"))
    value_range (-180, 180)
    ui_meta     ("unit", "degree")
    ui_meta     ("direction", "cw")

property_double (length, _("Length"), 70.0)
    description (_("Length of brushed metal/wood in pixels"))
    value_range (20.0, 150.0)
    ui_range    (20.0, 120.0)
    ui_gamma    (1.5)
    ui_meta     ("unit", "pixel-distance")

property_double (sharpen, _("Sharpen"), 3.0)
    description(_("Sharpen the brushed metal/wood "))
    value_range (0.0, 10.0)
    ui_range    (0.0, 10.0)
    ui_gamma    (3.0)

property_seed    (seed, _("Random seed"), rand)
    description  (_("The random seed for the noise function"))

contrast_ · **Joined:** Oct 31, 2020 **Posts:** 1446

PixLab wrote:

contrast_ wrote:

When brown this graph looks like wood. Maybe it should be renamed to "brushed metal and wood"

"Brushed Texture" should encompass everything going out of that filter (paper, plastic (~3D prints), whatnot), an orientation slider would be mandatory, as well as a "Tileable" option like in "Solid noise" IMO (every rendered texture should have this option IMHO)

Attachment:


It is impossible to do that because this filter does not use solid noise. It depends mostly on linear motion blur and RGB Noise

contrast_ · **Joined:** Oct 31, 2020 **Posts:** 1446

Here is the GEGL Graph itself that list the nodes from attach

Code: Select all

 /*main graph here. normal and multiply are composers (aka blend modes)*/
  gegl_node_link_many (input, idref, normal, crop, motion, sharpen, opacity, endfix, multiply, output, NULL);
 /*the normal blend mode has everything from idref to gray inside it*/
  gegl_node_connect (normal, "aux", gray, "output");
  gegl_node_link_many (idref, hcolor, noise, gray,  NULL);
 /*the multiply blend mode has a color node inside of it. obviously to blend the color*/
  gegl_node_connect (multiply, "aux", color, "output");

contrast_ · **Joined:** Oct 31, 2020 **Posts:** 1446

The GEGL Operation class, title and filter description, and where the filter goes in the menu is here. Since we don't use update_graph, everything will stay in default.

If anyone has been noticing I've been giving my plugins reference hash names based on pop culture references (media, music politics, video games).

Code: Select all

static void
gegl_op_class_init (GeglOpClass *klass)
{
  GeglOperationClass *operation_class;
  operation_class = GEGL_OPERATION_CLASS (klass);
  operation_class->attach = attach;
  gegl_operation_class_set_keys (operation_class,
    "name",        "lb:woodmetal",
    "title",       _("Brushed Metal and Wood"),
    "reference-hash", "dancingthroughthenightonthegroove",
    "description", _("The same background that makes brushed metal also makes wood texture."),
    "gimp:menu-path", "<Image>/Filters/Render/Fun",
    "gimp:menu-label", _("Brushed Metal and Wood Background..."),
    NULL);
}

#endif

contrast_ · **Joined:** Oct 31, 2020 **Posts:** 1446

Here is something very unique to this filter that only a few filters of mine have.

A mandatory -180 180 and ui_meta ("direction", "cw") are needed to get this circular slider in plugins.

Code: Select all

property_double (direction, _("Direction"), 0.0)
    description (_("Direction of brushed metal/wood"))
    value_range (-180, 180)
    ui_meta     ("unit", "degree")
    ui_meta     ("direction", "cw")

If it is not (-180 180) with the extra ui_meta tag this circular slider will not show up

Attachment:

azimuth_cyclic_slider.png [ 4.15 KiB | Viewed 574 times ]

contrast_ · **Joined:** Oct 31, 2020 **Posts:** 1446

Here is where we define the filter properties that are all based on other filter properties.

Code: Select all

gegl_operation_meta_redirect (operation, "seed", noise, "seed");
gegl_operation_meta_redirect (operation, "sharpen", sharpen, "scale");
gegl_operation_meta_redirect (operation, "length", motion, "length");
gegl_operation_meta_redirect (operation, "direction", motion, "angle");
gegl_operation_meta_redirect (operation, "color", color, "value");

First is the property name we gave
Second is the defined name in attach
Third is the original filters property name

"newproperty", attachname, "originalproperty")

Usually I keep new and old property names the same to keep it simple but I understand this confuses newbies.

motion is the new property name we defined here

Code: Select all

     GeglNode *motion    = gegl_node_new_child (gegl,
                                  "operation", "gegl:motion-blur-linear",
                                  NULL);

length and direction are both new and old property names

in example gegl:motion-blur angle=30 motion=40 is valid syntax that explains these two lines of code.

Code: Select all

gegl_operation_meta_redirect (operation, "length", motion, "length");
gegl_operation_meta_redirect (operation, "direction", motion, "angle");

contrast_ · **Joined:** Oct 31, 2020 **Posts:** 1446

I just got done compiling the plugin and have no idea if it will work if I did it right or not.

Attachment:

gegls_compile.png [ 285.25 KiB | Viewed 574 times ]

*update I had to tweak several sliders and recompile 4 times or so before I got it right.

contrast_ · **Joined:** Oct 31, 2020 **Posts:** 1446

The filter is done and appears to be working fine. It will be on Github tomorrow or later tonight.

Attachment:

on_soon.png [ 603.75 KiB | Viewed 564 times ]

Anyone is welcome to compile this early. The entire working code is here.

Code: Select all

/* This file is an image processing operation for GEGL
 *
 * GEGL is free software; you can redistribute it and/or
 * modify it under the terms of the GNU Lesser General Public
 * License as published by the Free Software Foundation; either
 * version 3 of the License, or (at your option) any later version.
 *
 * GEGL is distributed in the hope that it will be useful,
 * but WITHOUT ANY WARRANTY; without even the implied warranty of
 * MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE.  See the GNU
 * Lesser General Public License for more details.
 *
 * You should have received a copy of the GNU Lesser General Public
 * License along with GEGL; if not, see <https://www.gnu.org/licenses/>.
 *
 * Copyright 2006 Øyvind Kolås <pippin@gimp.org>
 * 2024 Beaver, Brushed Metal Wood

Recreate graph using this GEGL syntax

id=x
over aux=[ ref=x
color value=#59cbf3
noise-rgb red=1 green=1 blue=1  gaussian=true linear=true seed=223334
gray
]
crop
motion-blur length=70
unsharp-mask scale=5
opacity value=10
median-blur radius=0 abyss-policy=none clip-extent
multiply aux=[ color value=#e98944]
 */

#include "config.h"
#include <glib/gi18n-lib.h>

#ifdef GEGL_PROPERTIES

property_color (color, _("Color"), "#e98944")
    description (_("The color to paint over the brushed metal/wood. The default color makes wood"))

property_double (direction, _("Direction"), 0.0)
    description (_("Direction of brushed metal/wood"))
    value_range (-180, 180)
    ui_meta     ("unit", "degree")
    ui_meta     ("direction", "cw")

property_double (length, _("Length"), 70.0)
    description (_("Length of brushed metal/wood in pixels"))
    value_range (20.0, 120.0)
    ui_range    (20.0, 120.0)
    ui_gamma    (1.5)
    ui_meta     ("unit", "pixel-distance")

property_double (sharpen, _("Sharpen"), 4.5)
    description(_("Sharpen the brushed metal/wood "))
    value_range (2.0, 10.0)
    ui_range    (2.0, 10.0)
    ui_gamma    (3.0)

property_seed    (seed, _("Random seed"), rand)
    description  (_("The random seed for the noise function"))

property_double (desaturate, _("Desaturate (for brushed metal)"), 1.0)
    description(_("Desaturation option to make brushed metal"))
    value_range (0.0, 1.0)
    ui_range (0.0, 1.0)

#else

#define GEGL_OP_META
#define GEGL_OP_NAME     brushed_metal_wood
#define GEGL_OP_C_SOURCE brushed_metal_wood.c

#include "gegl-op.h"

static void attach (GeglOperation *operation)
{
  GeglNode *gegl = operation->node;
  GeglColor *hidden_color = gegl_color_new ("#a0a0a0");
  GeglColor *default_color = gegl_color_new ("#e98944");

    GeglNode *input    = gegl_node_get_input_proxy (gegl, "input");
    GeglNode *output   = gegl_node_get_output_proxy (gegl, "output");

    GeglNode *normal    = gegl_node_new_child (gegl,
                                  "operation", "gegl:over",
                                  NULL);
    GeglNode *idref    = gegl_node_new_child (gegl,
                                  "operation", "gegl:nop",
                                  NULL);
    GeglNode *hcolor    = gegl_node_new_child (gegl,
                                  "operation", "gegl:color", "value", hidden_color,
                                  NULL);
     GeglNode *noise   = gegl_node_new_child (gegl,
                                  "operation", "gegl:noise-rgb", "red", 1.0, "green", 1.0, "blue", 1.0, "gaussian", TRUE, "linear", TRUE,
                                  NULL);
     GeglNode *gray    = gegl_node_new_child (gegl,
                                  "operation", "gegl:gray",
                                  NULL);
     GeglNode *crop    = gegl_node_new_child (gegl,
                                  "operation", "gegl:crop",
                                  NULL);
     GeglNode *motion    = gegl_node_new_child (gegl,
                                  "operation", "gegl:motion-blur-linear",
                                  NULL);
     GeglNode *sharpen    = gegl_node_new_child (gegl,
                                  "operation", "gegl:unsharp-mask",
                                  NULL);
     GeglNode *opacity    = gegl_node_new_child (gegl,
                                  "operation", "gegl:opacity", "value", 10.0,
                                  NULL);
     GeglNode *endfix    = gegl_node_new_child (gegl,
                                  "operation", "gegl:median-blur", "radius", 0, "abyss-policy", 0,
                                  NULL);
     GeglNode *multiply    = gegl_node_new_child (gegl,
                                  "operation", "gegl:multiply",
                                  NULL);
     GeglNode *color    = gegl_node_new_child (gegl,
                                  "operation", "gegl:color", "value", default_color,
                                  NULL);
     GeglNode *desaturate    = gegl_node_new_child (gegl,
                                  "operation", "gegl:saturation",
                                  NULL);
 /*main graph here. normal and multiply are composers (aka blend modes)*/
  gegl_node_link_many (input, idref, normal, crop, motion, sharpen, opacity, endfix, multiply, desaturate, output, NULL);
 /*the normal blend mode has everything from idref to gray inside it*/
  gegl_node_connect (normal, "aux", gray, "output");
  gegl_node_link_many (idref, hcolor, noise, gray,  NULL);
 /*the multiply blend mode has a color node inside of it. obviously to blend the color*/
  gegl_node_connect (multiply, "aux", color, "output");

gegl_operation_meta_redirect (operation, "seed", noise, "seed");
gegl_operation_meta_redirect (operation, "sharpen", sharpen, "scale");
gegl_operation_meta_redirect (operation, "length", motion, "length");
gegl_operation_meta_redirect (operation, "direction", motion, "angle");
gegl_operation_meta_redirect (operation, "color", color, "value");
gegl_operation_meta_redirect (operation, "desaturate", desaturate, "scale");

}

static void
gegl_op_class_init (GeglOpClass *klass)
{
  GeglOperationClass *operation_class;
  operation_class = GEGL_OPERATION_CLASS (klass);
  operation_class->attach = attach;
  gegl_operation_class_set_keys (operation_class,
    "name",        "lb:woodmetal",
    "title",       _("Brushed Metal and Wood"),
    "reference-hash", "dancingthroughthenightonthegroove",
    "description", _("The same background that makes brushed metal also makes wood texture."),
    "gimp:menu-path", "<Image>/Filters/Render/Fun",
    "gimp:menu-label", _("Brushed Metal and Wood Background..."),
    NULL);
}

#endif

contrast_ · **Joined:** Oct 31, 2020 **Posts:** 1446

POST RETRACTED - DOWNLOAD OUTDATED

contrast_ · **Joined:** Oct 31, 2020 **Posts:** 1446

Plugin will be getting an update with new features like this

It will have a tab to choose between linear motion blur, circular motion blur and zoom motion blur

contrast_ · **Joined:** Oct 31, 2020 **Posts:** 1446

From a technical perspective this filter is a motion blur applied on rgb noise with a multiply blended color overlay.

Maybe I should rename the filter to "Motion blur on noise texture" as that is far more logically accurate then "wood/metal". I could call it "Motion blurred noise".

Jappaloe63 · **Posted:** Wed Mar 27, 2024 6:01 am **(#17)**

I installed it, but I get this error message!
I am using Gimp 2.10.36 and 2.99.17

Solved!
I have now added 2.99.18 and it works now. Thank you!

contrast_ · **Joined:** Oct 31, 2020 **Posts:** 1446

I tested it on Windows 10 Gimp 2.99.18 and it worked.

Jappaloe63 wrote:

I installed it, but I get this error message!

Are you using Gimp 2.10.32? As my plugins require GEGL 0.4.46 and up now

If you are using above that try backing up and removing every other plugin but brushed metal and tell me if it works.

contrast_ · **Joined:** Oct 31, 2020 **Posts:** 1446

Please try these new Windows and Linux binaries and let me know if they work.

Download Windows and Linux binaries and code here of plugin update

Attachment:

noise_in_motion.zip [80.11 KiB]
Downloaded 24 times

contrast_ · **Joined:** Oct 31, 2020 **Posts:** 1446

Jappaloe63 wrote:

I installed it, but I get this error message!
I am using Gimp 2.10.36 and 2.99.17

Please try the update. It has no errors unlike the earlier version that did and make sure the update works with all the other plugins of mine you have.

	Similar Topics	Replies
	Baby's first GEGL plugin - a very basic GEGL plugin anyone can make.	9
	Let's post guides on how to create cool textures with Gimp.	2
	Felimage Noise Plugin v 0.1.1 Win10_and_LINUX_64bit.	21
	Just making noise earlier. Christmas stocking plugin	11
	GEGL Starfield - Partially Inspired by David Wood's fireworks guide	16
