Hi All, I'm new to the forum and to GIMP. I need to convert a lot of color photographs to line drawings. It seems there must be a plug-in or something that would make this an easy process in GIMP. I can't be the only person who has ever needed to do this! Any help would be greatly appreciated.
Dan

HI astromandan. Welcome to GIMP chat...theres lots of ways to do this but I am sure the wise owls here will be able to help you out with some tutorial suggestions.

Isn't there an option to do this in the Gmic plugin?

When you have your image, duplicate that image. Highlight the 'bottom' copy and go to Filters - emboss. Leave on default settings and 'OK'. Then highlight the 'top' layer and up above the layers is a dropdown menu labelled Mode: Normal. Change Normal to Dodge. I'm sure after you finish several images it will go quickly.

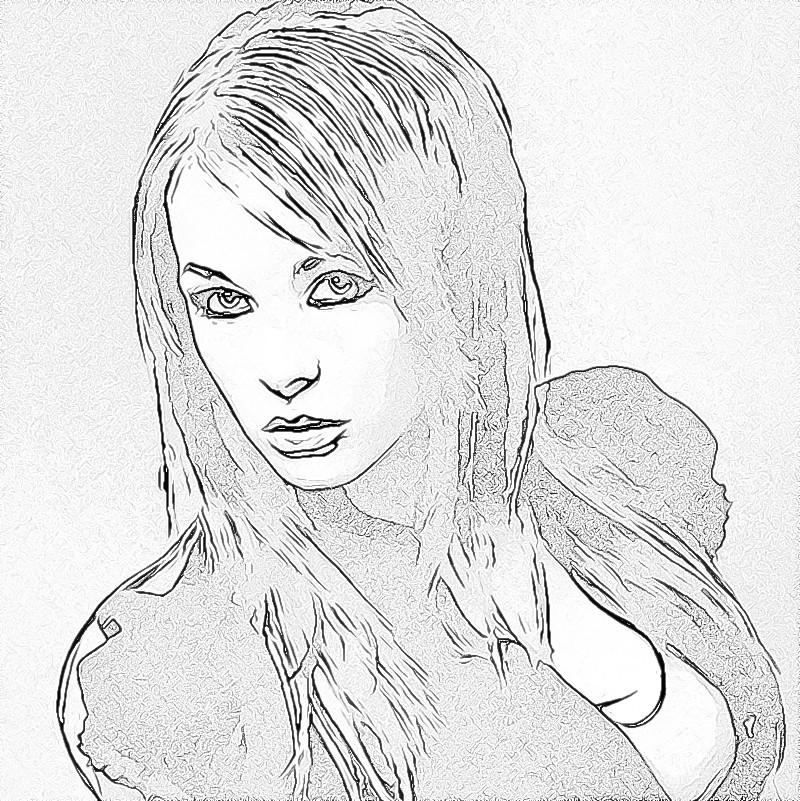

Hey, brucepr5150, here's what I got. I'm not sure if that's what astromandan was looking for, but I like it!

Or, if you want a b/w line drawing effect you can simply go to Colors menu and choose Threshold.

GMIC has many different sketch settings in Artistic menu.Try a few of those also.

By the way welcome to Gimp Chat!

Here's a couple
quick-sketch.scm
http://registry.gimp.org/node/5921

lasm-line-art.scm (with no texture)
http://gimpfx-foundry.sourceforge.net/b ... ne-art.scm

The line art script throws these errors:

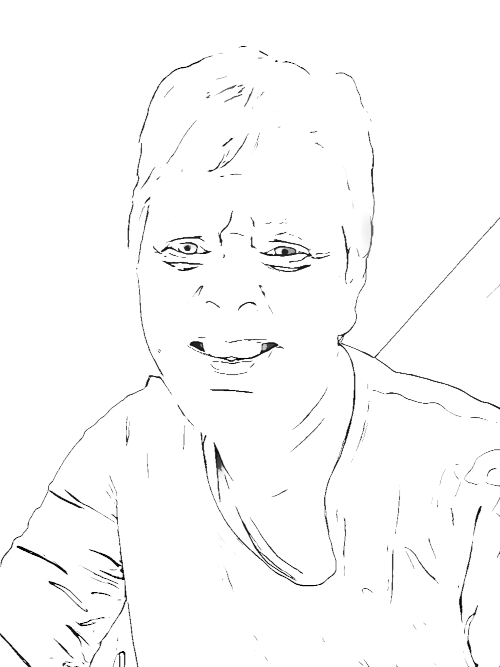

If you have G'mic then you can get this result at Artistic> Comic book.

A fix for the more obvious syntax changes, script attached. Originally for Gimp 2.4

What does not work? gimpressionist - maybe someone can find out why. Even the script says
Tip: If you do not have a good Gimpressionist preset, simply hit cancel at the Gimpressionist dialog window, and you will still get a good greyscale line-art." So best way is just disable that option.

No doubt it can be broken in use, but a quick demo. https://i.imgur.com/6l9uADh.mp4

...but as pointed out, there are plenty of other options.

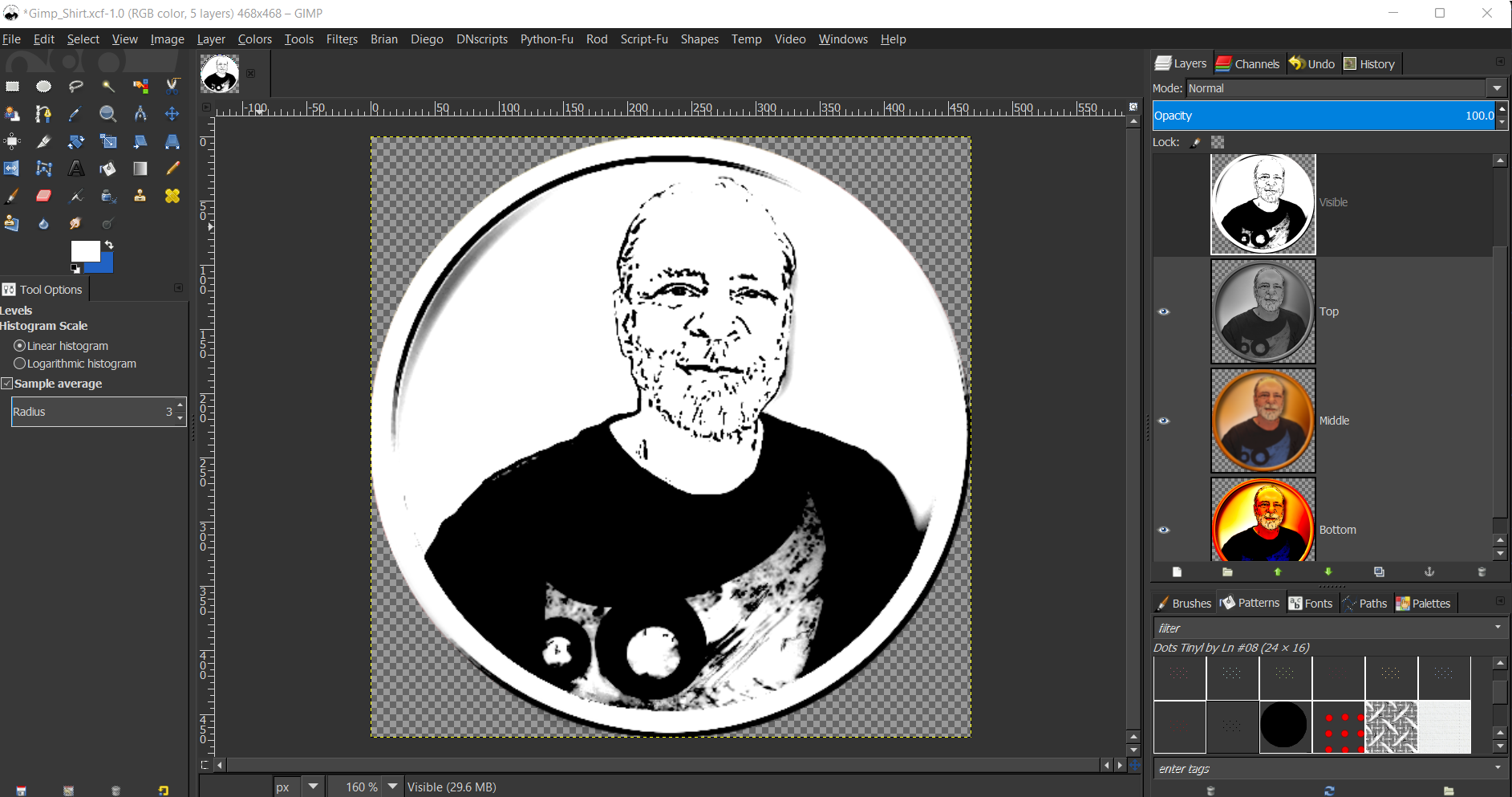

I post my way if someone is interested in it.

Just indicating another option among the many available:

Tim Tran's Plugin - Picture To Liene Art
Plugin Picture To Line Art
https://gimplearn.net/viewtopic.php?p=3522#p3522

It has worked on all the latest versions of Gimp I've used and even on this current one 2.10.28

I downloaded the updated version but it doesn't show up in FX Foundry-->Artistic or in Script-Fu->Lasm's FX Effects->Line Art as the script states when looking into the code. I'm using gimp 2.10.30 on windows 10 64 bit.

If it is not necessary to strictly keep to line only: allowing representation of tonal values for example by stippling, there are more options, this being a good retro one:
https://wiki.evilmadscientist.com/Produ ... _with_Gimp

and more to be found by searching on this site and wider

it is difficult to match drawing for line, even with artificial intelligence, occasionally something original and better than a drawing or a good inspiration for a drawing can be created using digital photo manipulation

I am a believer in if you can write you can draw or if you can talk you can sing but most people haven't got the time for the learning curve, often because they are busy helping other people

for me Matisse, Picasso and Japanese sumi-e set the bar high

Hello!
Here is yet another way:

• Filters -> G'Mic -> Artistic -> Comic Book
• Filters -> G'Mic -> Various -> Custom Code [Global]
  and paste

  Code: Select all

  fx_blackandwhite. 0.299,0,0.587,0,0.114,0,0,0,0,0,0,0,0,0,2,0,0,0,16,4,0,0,0,50,50
otsu. 4 n. 0,255

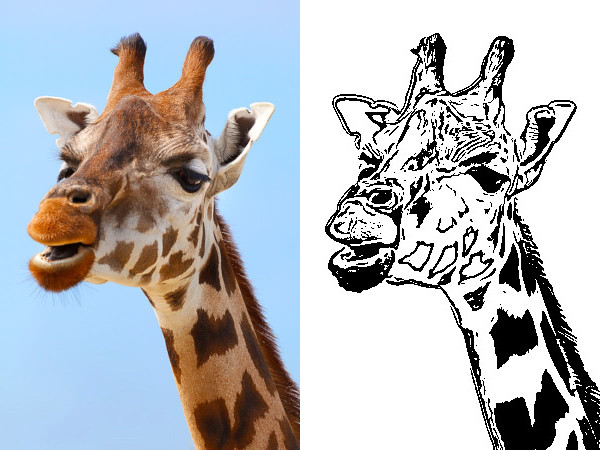

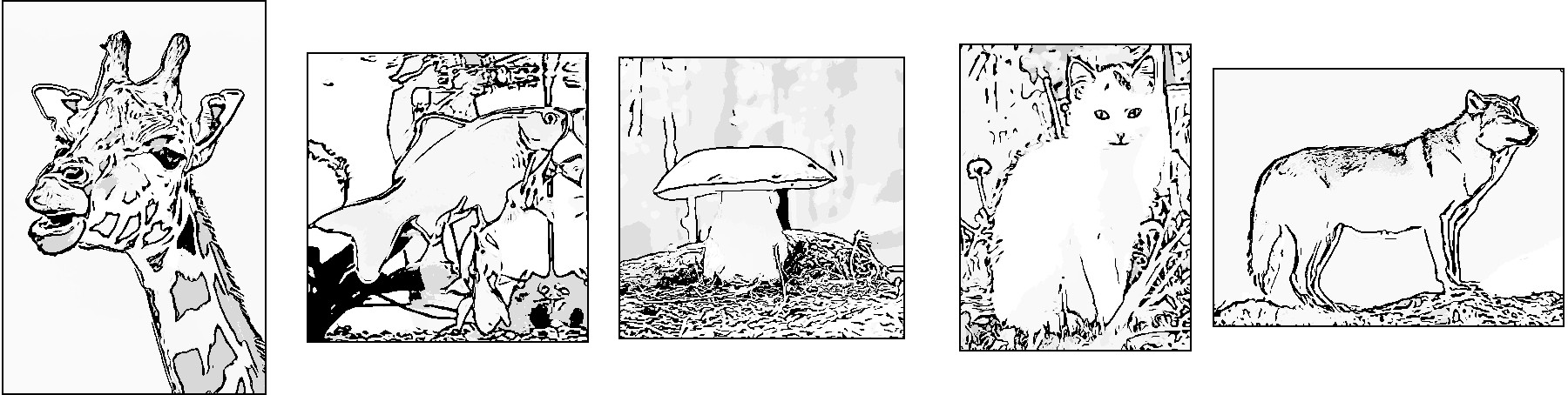

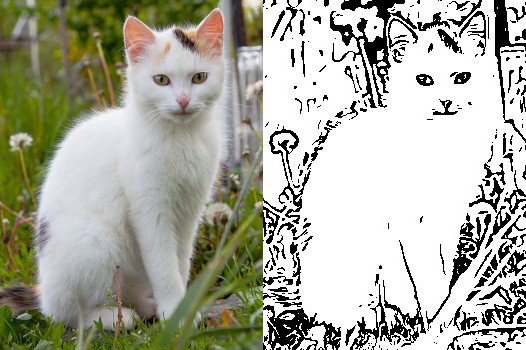

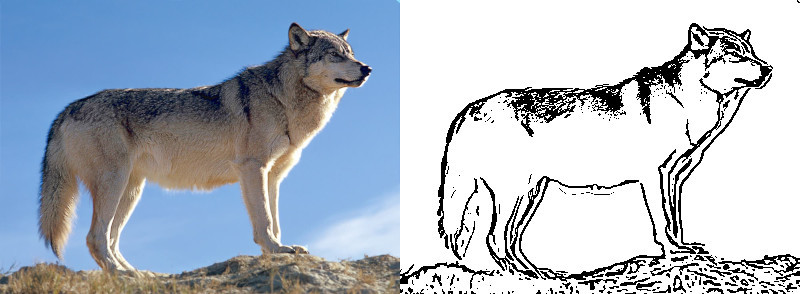

Here are examples:



Hope this helps!

Thank you so much cli345; it works great!

Happy to help and thanks also for your way!

Here is yet another way:

• Filters -> G'Mic -> Artistic -> Comic Book
• Filters -> G'Mic -> Various -> Custom Code [Global]
  and paste

  Code: Select all

  if s==4 split_opacity. rm. fi
+colormap. 8
index.. [-1],0,1
rm.
rgb2hsl. split. c
n. 0,1
append c hsl2rgb
fx_blackandwhite. 0.299,0,0.587,0,0.114,0,0,0,0,0,0,0,0,0,2,0,0,0,16,4,0,0,0,50,50
fx_curves_interactive. 7,0,1,"7","0,0,20,80,100,100,-1,0,0,100,0,-1,0,0,100,100,-1,0,0,100,100,-1"

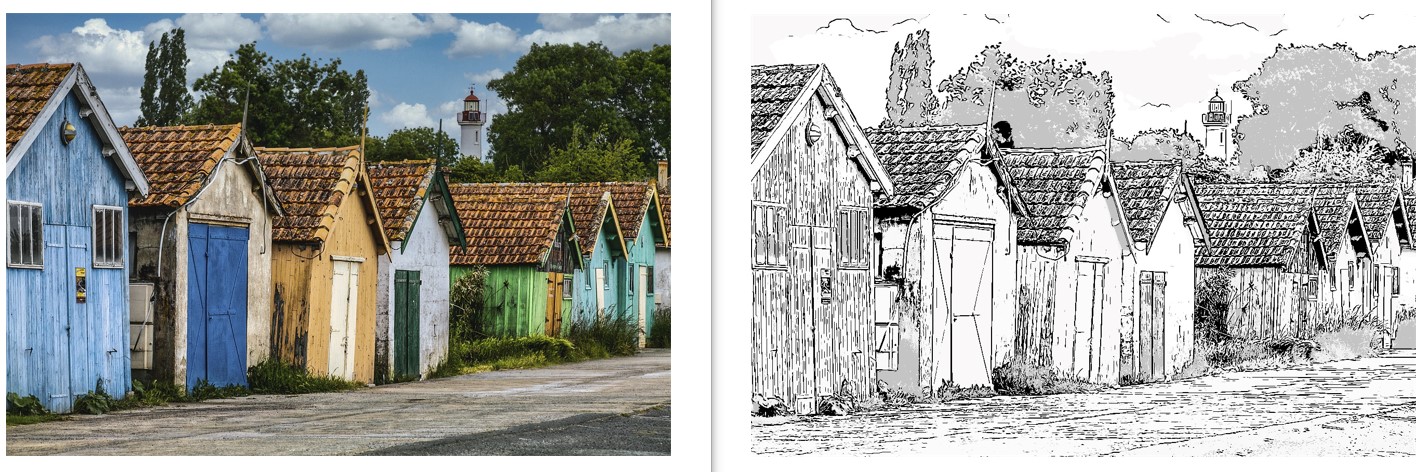

Here are examples:

Hope this helps!

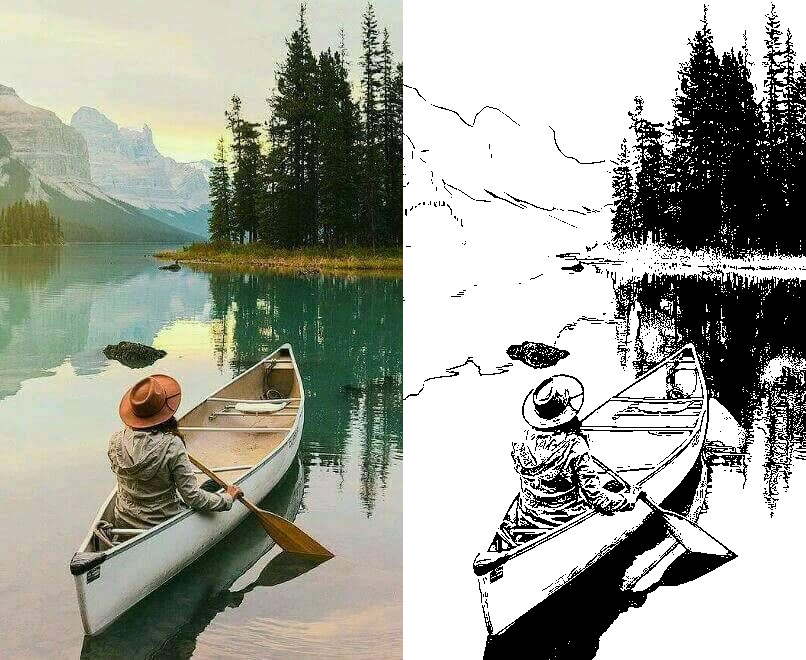

cli345, thanks again. Yes, the second code helps a lot. I see the lines being thinner with a nice result.
