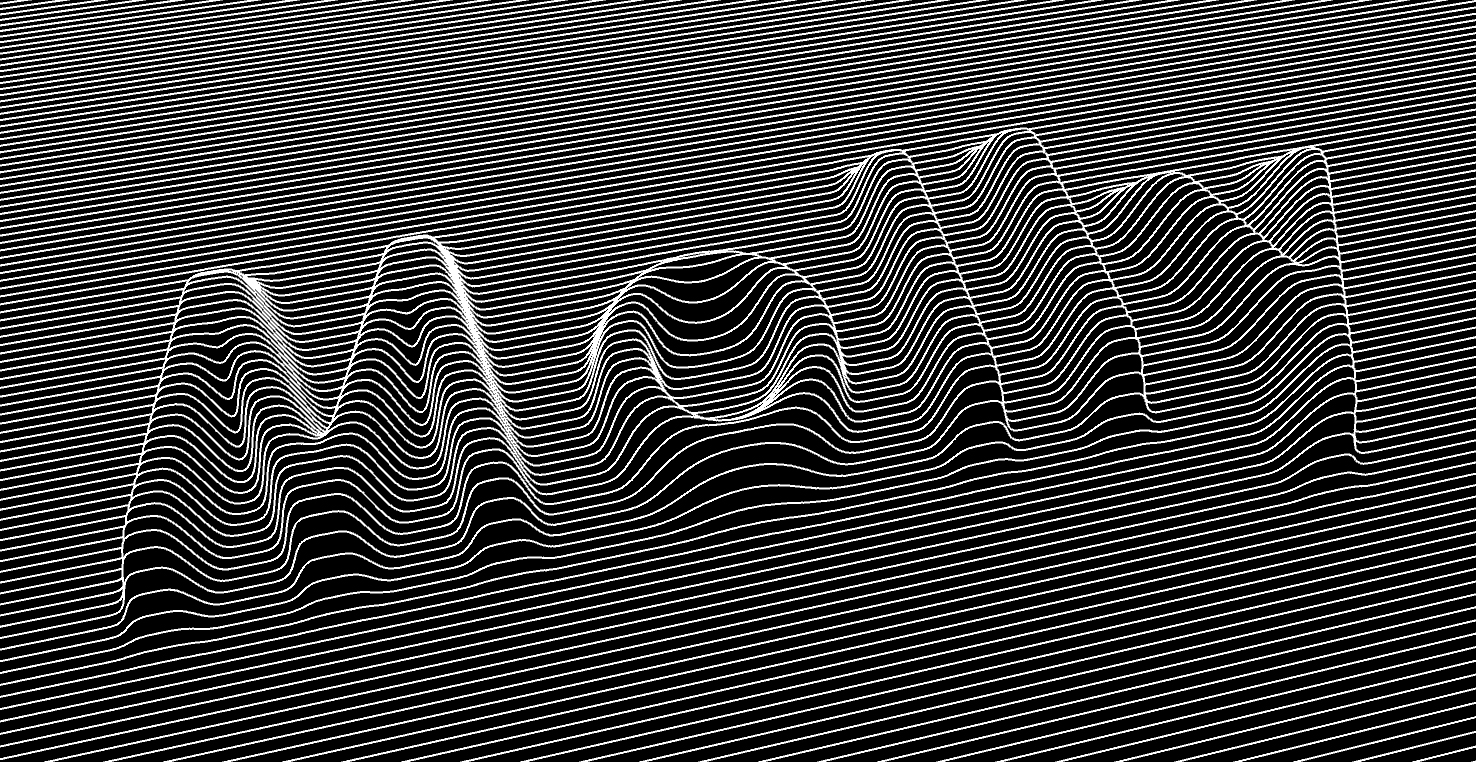

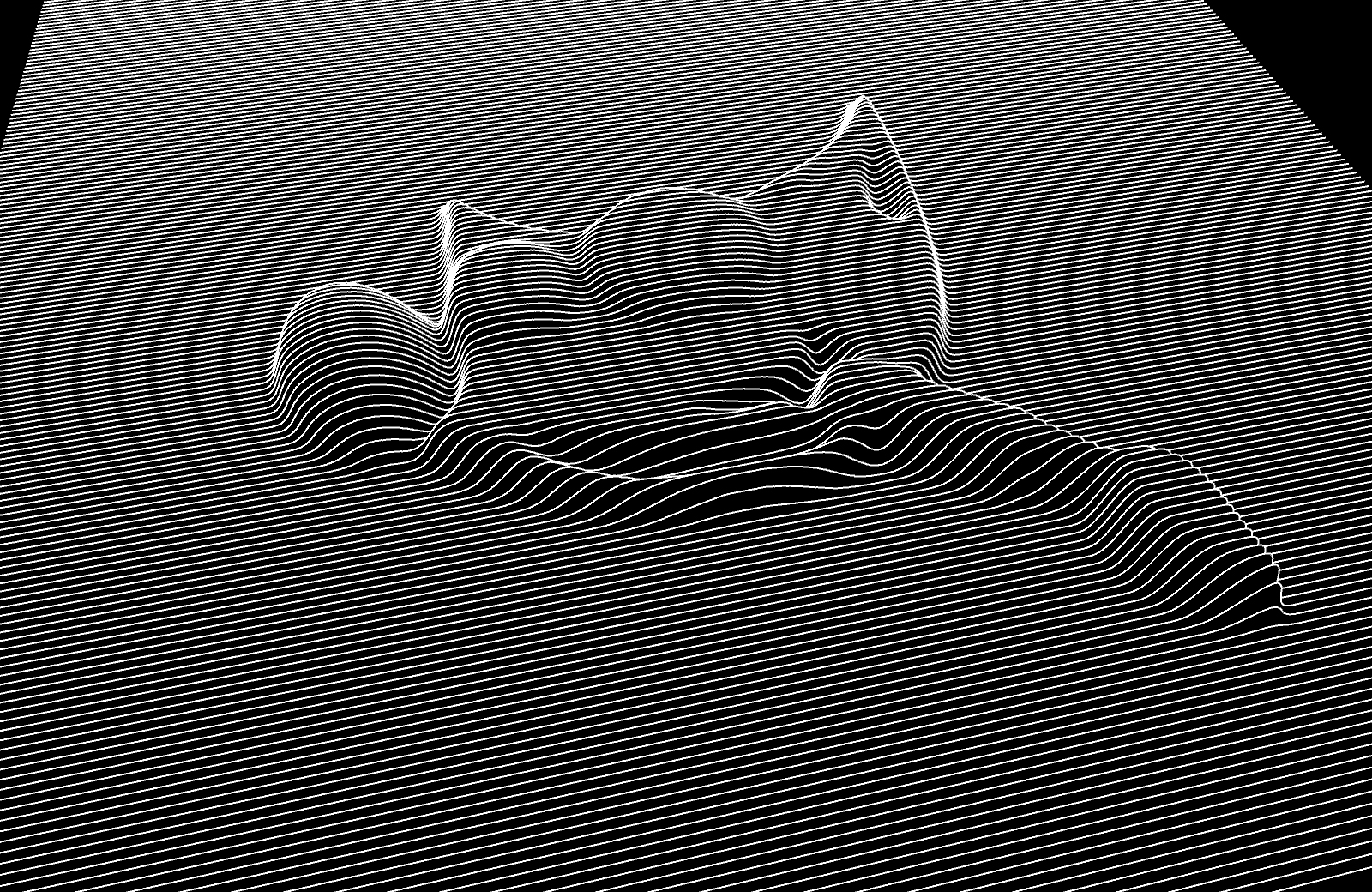

The image below created with Open Source cross-platform Processing2 software.
It supports javascript, Python and a few other programming languages.
I just got my hands on it this morning. It can create animations too. Very helpful whether you are a beginning or a seasoned programmer.

For the image below I created b/w jpg map (depth map) and zmap java script by Enrique Gallar
Here is the code

Code: Select all

/**
* creates text typography on lines
* uses portions of code from Marius Watz for pdf rendering
* based in original idea (using AI-Scriptographer) from Jurg Lehni work commissioned
* for the artist Philippe Decrauzat.
*
* Copyright (c) 2007 Enrique Gallar
*/
import processing.opengl.*;
import processing.pdf.*;

//SimplePostscript ps;
int gap; //space in between lines
int num_lines;
float z_value;
PImage img;
float value;
color[] myarr;
boolean dosave=true;


void setup(){
size(2000, 2000, OPENGL); //if you change this arange new canvas rotation
background(0);
strokeWeight(1);

noLoop();
//frameRate(30); //if you use mouse input for viewport
gap = 10; // line spacing
z_value = 100; // height of elevation
num_lines = floor(height/gap);

//place this flie in the data directory in the script folder
PImage img = loadImage("ovi_lines.jpg"); //best if you have same size, use nice gausian blur
image(img, 0, 0);
loadPixels();
//filter(GRAY);
//filter(BLUR,100); //leftovers from attempts using processing also for the blur. Type relevant code was removed.

myarr= new color[pixels.length]; //this may not be necessary
arraycopy(pixels, myarr); // copy buffer to new array
for (int i=0; i <(width*height) -1; i++){ // store brightness values in new array
float brg = brightness(pixels[i]); // part of the magic, reading values
//float brg = 0.30 * r + 0.59 * g + 0.11 * b ;
myarr[i] = abs ((int) brg);
}
}

void draw(){
if(dosave) {
PGraphicsPDF pdf=(PGraphicsPDF)beginRaw(PDF, "pdf_out.pdf");

// set stroke styles and paint background rect.
pdf.strokeJoin(MITER);
pdf.strokeCap(SQUARE);
pdf.fill(0);
pdf.noStroke();
pdf.rect(0,0, width,height);
}


background(0);
stroke(255);
strokeWeight(2);
fill(0);//interesting effect if you do not fill shapes ;)
smooth();
pushMatrix();

translate(width/2, height/2);
//rotateX(map(mouseX,0, width, 0, PI/2)); // test realtime what effect you like
rotateX(PI/4); //final settings for viewpoint
rotateZ(-PI/15);
//rotateZ(map(mouseY, 0, height, 0, PI/2));
scale(1);
translate(-width/2,-height/2);

for (int i=0; i < num_lines; i++){ // y resolution
beginShape();
for ( int j=0; j < width; j++){ // x resolution
//color c = pixels[i*width+j]; //experiment with color variations based on location
value = map (myarr[i*gap*width+j], 0, 255, 0, z_value);
vertex(j, i*gap, value); //other primitives also work bezier vertex.
// if (j == 0) ps.moveto(j, i*gap);
// else ps.lineto(j, i*gap);
}
endShape();

}

popMatrix();
save("ovi_lines.tif"); //bitmap

if(dosave) {
endRaw();
dosave=false;
}

}

void keyPressed() {
if(key=='s') dosave=true;
}

Edit. Tutorial on p.2 on how to create such images.

molly · **Joined:** Apr 07, 2010 **Posts:** 14182

Wow Kit, that would work very well on a t-shirt too. very cool

K1TesseraEna · **Joined:** Sep 22, 2012 **Posts:** 2089 **Location:** US

Nice idea about t-shirts molly! Thanks

Odinbc · **Posted:** Sun Aug 24, 2014 7:03 pm **(#4)**

Did you see it in this thread, Processing.org?

K1TesseraEna · **Joined:** Sep 22, 2012 **Posts:** 2089 **Location:** US

Odinbc wrote:

Did you see it in this thread, Processing.org?

No, I didn't see it. I actually found it following an image on Flickr

pirate541 · **Joined:** May 27, 2011 **Posts:** 707

K1TesseraEna
That's neat !
can it become a Gimp script?

molly · **Joined:** Apr 07, 2010 **Posts:** 14182

K1TesseraEna wrote:

Nice idea about t-shirts molly! Thanks

[ Image ]

Wow, that is sooo cool. I want to do one of those.
I just watched parts of the video and it is away beyond me. I would have to back to school and learn all those x and y things I didn't pay any attention to when I did go to school.
Too bad though, it sure would be nice to be able to do that.

Odinbc · **Posted:** Sun Aug 24, 2014 8:50 pm **(#8)**

K1TesseraEna wrote:

No, I didn't see it. I actually found it following an image on Flickr

I looked through the reference manual awhile ago but never got around to using the program. Thanks for reminding me about it, I've downloaded it again today to have a look see. The Processing language first came to my attention with Processing.js for the web.

K1TesseraEna · **Joined:** Sep 22, 2012 **Posts:** 2089 **Location:** US

@pirate541 I did something similar in gimp using a displacement map and lighting effect filter.
But the lines weren't continuous, just warped around the letters. But this code is for Processing only.

@Odin From what I've learned so far (and that's just scratching the surface) this application is a Klondike of possibilities.

Rod · **Joined:** May 16, 2010 **Posts:** 16042

Sort of the effect i was looking for with the man coming out of the letters to hug a woman.

The Warrior · **Joined:** Jun 02, 2013 **Posts:** 2090

Very cool.

pirate541 wrote:

can it become a Gimp script?

This.

GnuTux · **Posted:** Mon Aug 25, 2014 2:20 pm **(#12)**

Looks interesting. Wish I had more time to play..

RobA · **Joined:** Jul 14, 2010 **Posts:** 697

I was playing with processing a while back - here were some random procedural ciry map images I made:

-Rob A>

K1TesseraEna · **Joined:** Sep 22, 2012 **Posts:** 2089 **Location:** US

RobA wrote:

I was playing with processing a while back - here were some random procedural ciry map images I made:
[ Image ]

-Rob A>

I've read the entire thread after Odin pointed it out and saw this image of yours, Rob.
Unfortunately the pics in your links are missing.

K1TesseraEna · **Joined:** Sep 22, 2012 **Posts:** 2089 **Location:** US

Mini-tutorial on how to use the provided script to get a beveled text (shape).

1.First, you need to download Processing 2 application to any folder on your main drive.
2.Create an image in gimp - Depth Map - with equal Width and Height: e.g. 2000x2000 px (minimum recommended 400x400)
Background must be black.
3. Create a separate text layer or shape (white color) above the black b/g layer and
apply 20x20 to 50x50 px Gaussain Blur (this is important for the lines transition speed and smoothness - you'll see what I mean
after playing with blur values).
3. Export created image as ovi-lines.jpg to the processing-2.2.1 folder. You don't have to flatten the image.

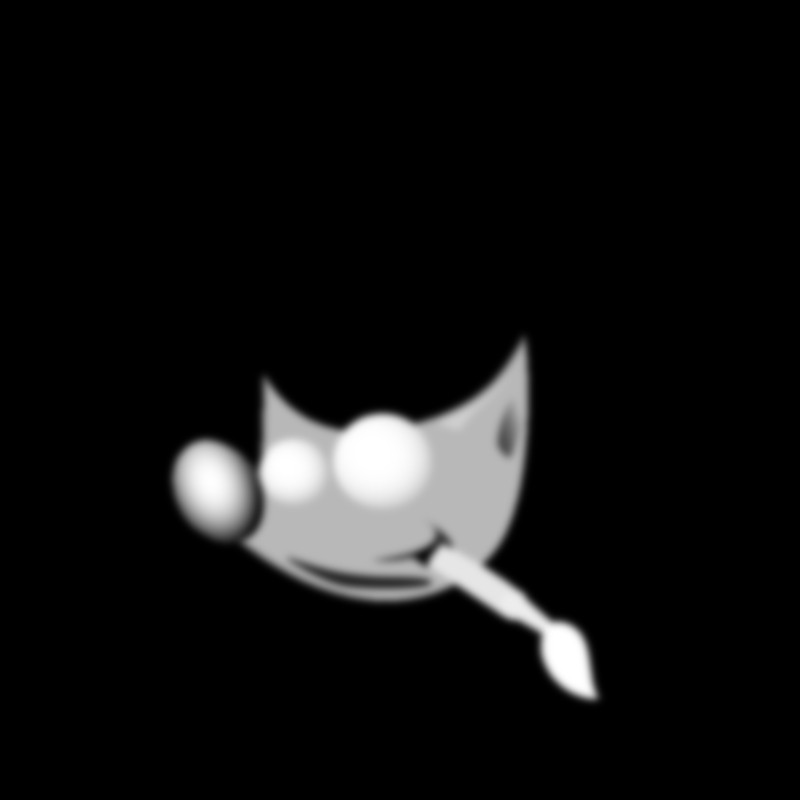

[Depth map ready]

4. Run the Processing 2 app.
5. In main window paste the entire script (see the 1st post)

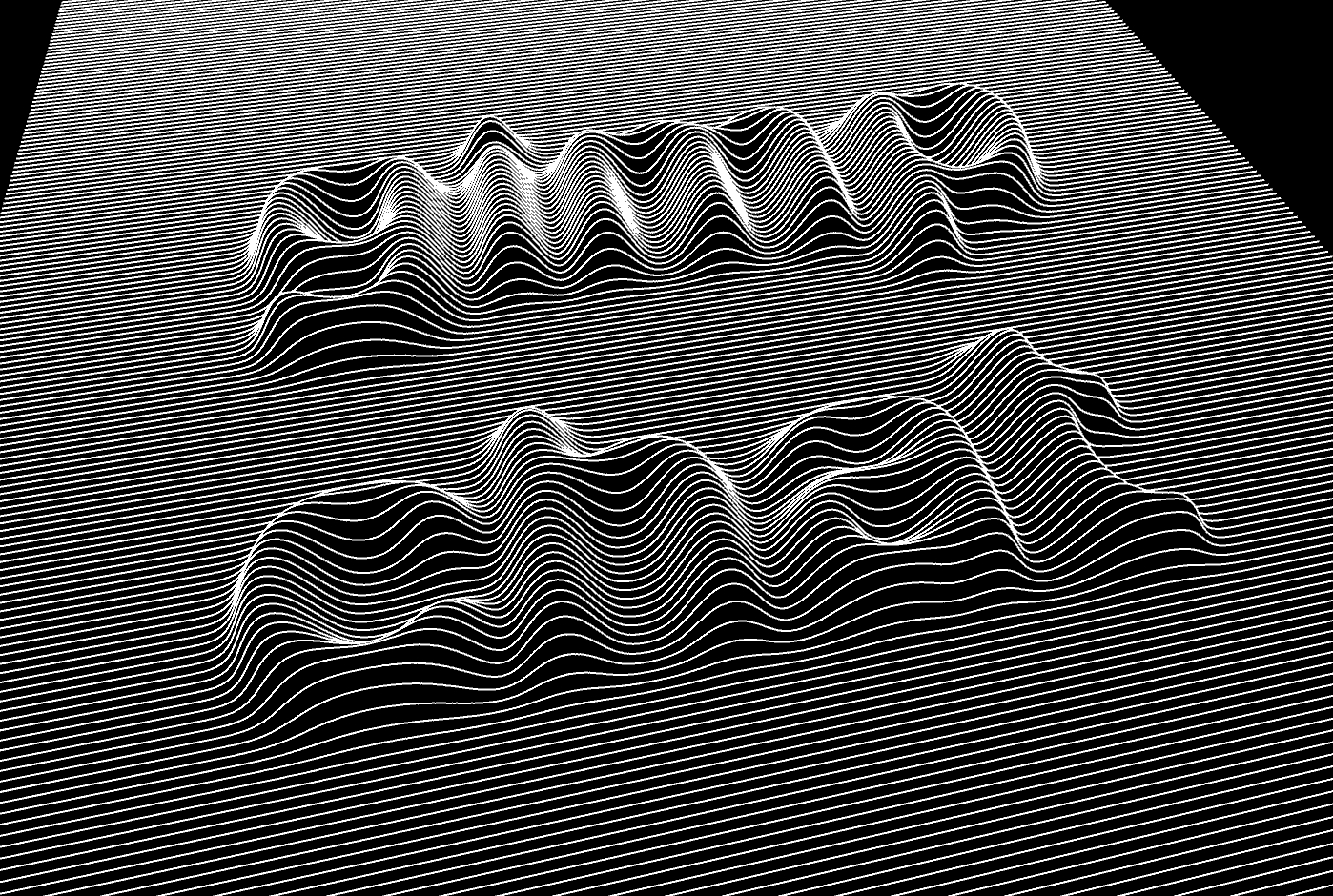

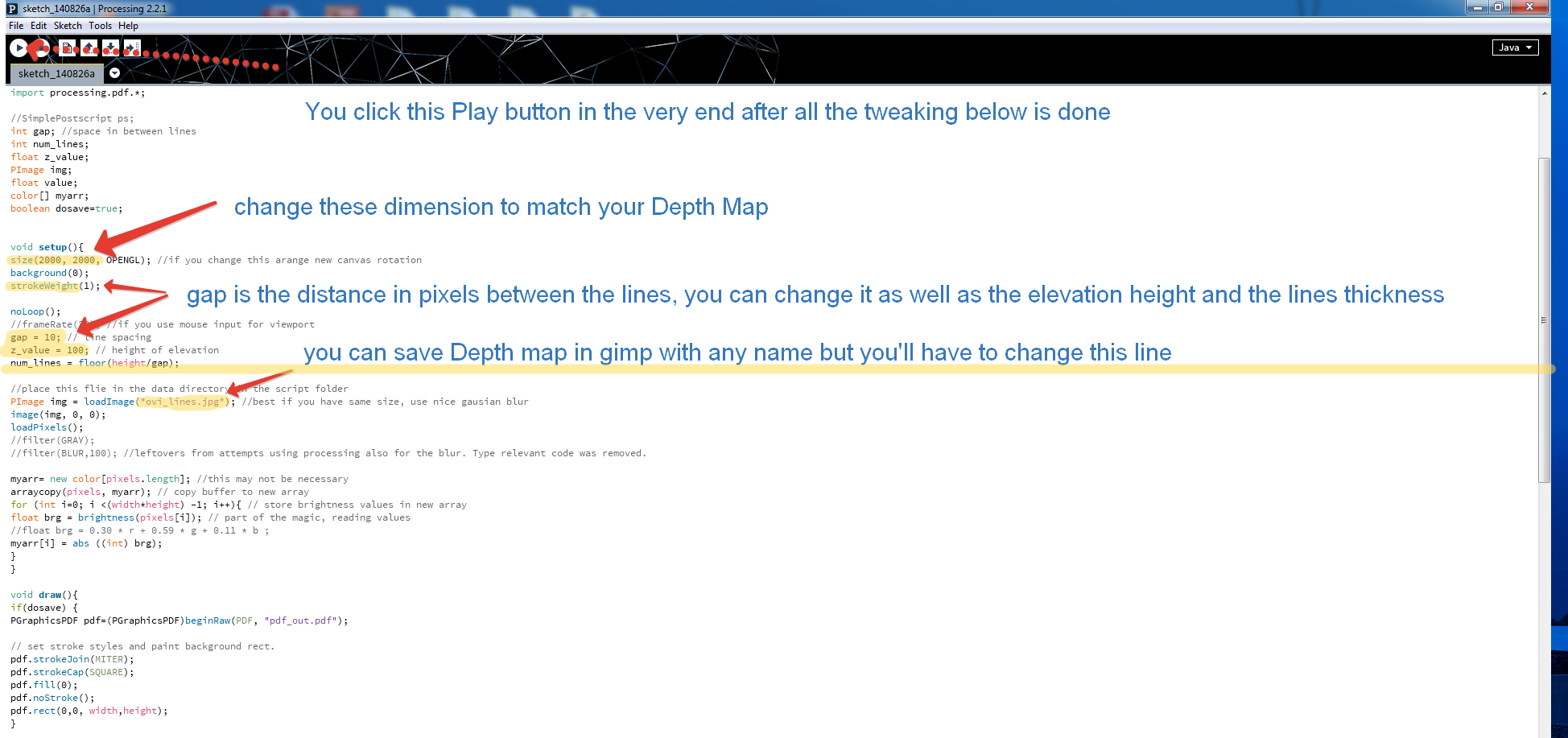

6. You can fiddle with the code (see the image below)

7. Click on Run button - a separate window with rendered image will open.
8. If you're happy with the results save it (creates a folder with tiff, pdf, data and processing files)
9. Open tiff file in gimp, edit (crop), save.
