New G'MIC filter "Frame [Relief]"

Issabella · **Posted:** Sat Aug 20, 2022 2:01 am **(#21)**

Thank you so much, cli345. It works great with the new option. And perfect in default, too. :tyspin

oldmangrumpy · **Posted:** Sat Aug 20, 2022 6:34 am **(#22)**

Hi cli345 - thanks, I just installed and tried out your new GMIC filter; added some bevels on the frame for effect.

PixLab · **Posted:** Sat Aug 20, 2022 7:11 am **(#23)**

That's absolutely great cli345, IMO your filter should become officially published in G'MIC now :clap

Thank you

Attachment:

screenshot_20220820-200617.png [ 776.98 KiB | Viewed 2240 times ]

Reptorian · **Joined:** Oct 16, 2017 **Posts:** 45

Hi, I could push it soon, but I'm here to notify you that I left some criticisms on the filter itself with some suggestions based from what I read. Waiting on the followup to this.

Reptorian · **Joined:** Oct 16, 2017 **Posts:** 45

As some days had passed awaiting response, I merged. It is about to be or now on G'MIC.

rich2005 · **Joined:** Mar 04, 2011 **Posts:** 2613

Yes, it is there when the filters are refreshed.

Only one comment, setting a colour with the sliders is somewhat serendipitous

If a red base colour required the sliders do not relate to the usual Gimp systems.

Attachment:

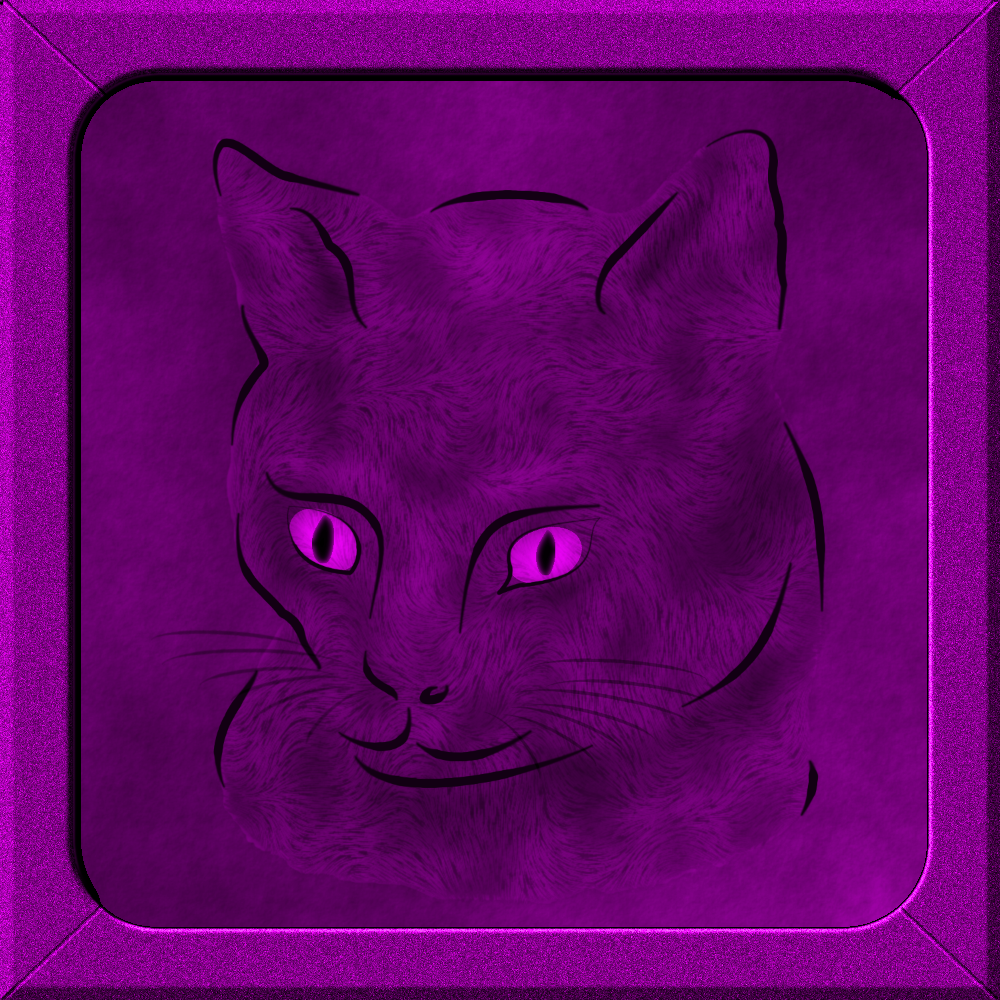

frame-relief.jpg [ 119.03 KiB | Viewed 2177 times ]

PixLab · **Posted:** Fri Aug 26, 2022 10:50 pm **(#27)**

Just discovered, (@cli346 I don't mind at all, it's just to let you know :hehe

)
1. If there is some transparencies on an image the transparent area will be black, and the edge between the opaque and now the black will be pixelated.
2. If you just removed (Select>delete), a portion of an image then it will not be taken in count
With the now official filter (after refreshing filters in G'MIC and removed the .gmic in /home/patrice)

1. black BG and pixelated edges

2. Filter don't "see" the hole in a middle

cli345 · **Posted:** Mon Aug 29, 2022 11:42 am **(#28)**

Hello!

Thanks Reptorian, PixLab, Issabella, oldmangrumpy, rich2005 for your valuable feedback! :tyspin

@Reptorian and PixLab
I don't understand well what you want to do with tranparency. I thought that, most often, people would want to add a frame to a final image. So, I'm not motivated to do anything about that.

@rich2005
I propose adding a possibility to set a uniform color onto the frame.
Here is the modified code:

Code: Select all

#@gui ____<b>Frames</b>
#------------------
#@gui Frame [Relief] (prerelease): cl_reliefFrame_prerelease, cl_reliefFrame_prerelease(1)
#@gui : note = note("<b>Frame Limit:</b>")
#@gui : Type = choice(2, "Outset", "Inset", "Groove", "Ridge")
#@gui : Size = float(10,6,40)
#@gui : Relief Width = float(1.5,0,10)
#@gui : Relief Amount = float(75,0,127)
#@gui : sep = separator()
#@gui : note = note("<b>Frame Area:</b>")
#@gui : Kaleidoscope Effect = bool(1)
#@gui : Frame Blur = float(60,5,80)
#@gui : Frame Hue Change = float(0,-180,180)
#@gui : Frame Saturation Change = float(0,-1,1)
#@gui : Frame Luminosity Change = float(0,-0.5,0.5)
#@gui : sep = separator()
#@gui : note = note("<b>Uniform Frame Color:</b>")
#@gui : note = note("<small>This overrides "Frame Area" section.</small>")
#@gui : Set Uniform Frame Color = bool(0)
#@gui : Frame Color = color(192,192,192)
#@gui : sep = separator()
#@gui : note = note("<b>Graininess:</b>")
#@gui : Graininess Type = choice("Gaussian", "Uniform", "Poisson")
#@gui : Graininess Amount = float(0,0,80)
#@gui : Graininess on = choice("Frame", "Picture", "Both")
#@gui : sep = separator()
#@gui : url = link("Filter discussed here","http://gimpchat.com/viewtopic.php?f=28&t=20005#p274661")
#@gui : note = note("<small>Author: <i>Claude Lion</i>. Latest Update: <i>2022/08/26</i>.</small>")
#@gui : note = note("<small>It uses filters of David Tschumperlé and an algorithm of Reptorian.</small>")

cl_reliefFrame_prerelease:

   frameType,frameSize,reliefWidth,reliefAmount,kaleido,frameBlur,frameHue,frameSat,frameLum,unifColor,colorR,colorG,colorB,grainType,grainAmount,grainFrameOn=$*

   if $grainType==2
      grainType=3
   fi

   foreach {
      remove_opacity.

      [-1]

      if $unifColor==0
         if $kaleido
            fx_kaleidoscope. 50,50,0,0,100,10,2
         fi
         b. $frameBlur

         l.
            rgb2hsl split c
            +. $frameLum c. 0,1
            +.. $frameSat c.. 0,1
            +... $frameHue %... 360
            a c hsl2rgb
         done
      elif $unifColor==1
         fill. [$colorR,$colorG,$colorB]
      fi

      if $grainFrameOn==0
         fx_noise. $grainAmount,$grainType,16,1,0,50,50
      elif $grainFrameOn==1
         fx_noise.. $grainAmount,$grainType,16,1,0,50,50
      fi

      100%,100%,1,1,0
      fx_frame_round. $frameSize,20,1,255,255,255,255,0,0,3
      remove_opacity.
      n. 0,255

      [-1]

      if $frameType>=1 # inset, groove, ridge
         negate.
      fi

      if $frameType>=2 # groove, ridge
         gradient_norm.
      fi

      if $frameType==3 # ridge
         negate.
      fi

      fx_smooth_antialias. 100,10,5,0,50,50

      negate.



      l.
         # inspired by emboss_image of Reptorian
         b. $reliefWidth
         fill. if(abs(i)<1e-10,0,i) # to work around https://github.com/dtschump/gmic/issues/402
         gradient2rgb. 0 n. 0,255
         [-1]
         rgb2hsv[-2,-1] split[-2,-1] c

         l[-3--1] +[-3] {315} %[-3] 360 done
         l[-6--4] +[-3] {135} %[-3] 360 done
         l[-3--1] a c hsv2rgb s c done
         l[-6--4] a c hsv2rgb s c done
         rm[^-6,-3]
         negate..
         / 2
         +. 128
         blend grainmerge,1
      done
      to_rgb.

      apply_curve. 1,0,{127-$reliefAmount},255,{128+$reliefAmount}

      fill[0] i#2*i#1+(255-i#2)*i n[0] 0,255
      rm.. rm..

      blend grainmerge,1
      if $grainFrameOn==2
         fx_noise. $grainAmount,$grainType,16,1,0,50,50
      fi
   }

Users will have to reset parameters to default values.
