New G'MIC filter "Rendering / Equation Plot [Implicit]"

cli345 · **Posted:** Thu Oct 17, 2024 11:04 am **(#1)**

Hi everyone!

I intend to propose a new G'MIC filter "Rendering / Equation Plot [Implicit]".

With default parameters, it would give:

Attachment:

equationPlot.png [ 15.03 KiB | Viewed 8175 times ]

Here is its code:

Code: Select all

#@gui ____<b>Rendering</b>
#------------------
#@gui Equation Plot [Implicit] (prerelease): cl_implicitEqua_prerelease, cl_implicitEqua_prerelease(1)
#@gui : note = note["Plot the equation: f(x,y)=0"]
#@gui : sep = separator()
#@gui : f(x,y) = text{"( x^2 + y^2 - 25 )   *   ( (x-2)^2 + (y-2)^2 - 1 )   *   ( (x+2)^2 + (y-2)^2 - 1 )   *   ( abs(x) + abs(y) - 1 )   *   ( x^2 + (4*y+12-x^2)^2 - 9 )"}
#@gui : Width (pixels) = int(500, 10, 2000)
#@gui : Height (pixels) = int(500, 10, 2000)
#@gui : Min x = float[-6, -10000, 10000]
#@gui : Max x = float[6, -10000, 10000]
#@gui : Min y = float[-6, -10000, 10000]
#@gui : Max y = float[6, -10000, 10000]
#@gui : Axes = bool(0)
#@gui : Grid = bool(0)
#@gui : Grid Cell Size = int(1,1,5)
#@gui : sep = separator()
#@gui : note = note("<small>Author: <i>Claude Lion</i>. Latest Update: <i>2024/10/17</i>.</small>")

cl_implicitEqua_prerelease:
   equ,w,h,minx,maxx,miny,maxy,axes,grid,gridSize=$"*"
   xlong={$maxx-$minx}
   ylong={$maxy-$miny}
   xscale={$w/$xlong}
   yscale={$h/$ylong}

   foreach {
      $w,$h,1,1,"x=x/$xscale+$minx;y=-y/$yscale-$miny;$1"
      +gradient_norm.
      fill. "255*   cut(   abs(i#-2),  0,  i   ) / i"
      rm..

      if $axes==1
         $w,$h,1,1,"X=x/$xscale+$minx;Y=-y/$yscale-$miny;X*Y"
         +gradient_norm.
         fill. "255*   cut(   abs(i#-2),  0,  i   ) / i"
         rm..
      else
         $w,$h,1,1,"255"
      fi

      if $grid==1
         $w,$h,1,1,"X=x/$xscale+$minx;Y=-y/$yscale-$miny;sin(pi*X/$gridSize)*sin(pi*Y/$gridSize)"
         +gradient_norm.
         fill. "255*   cut(   abs(i#-2),  0,  i   ) / i"
         rm..
      else
         $w,$h,1,1,"255"
      fi
      move[-1] -3
      append. [-2],c append. [-3],c
      rm.. rm.. move[-1] 0
   }

Installation:

Copy and paste the above code into the file "~/.gmic" on Linux or the file "%USERPROFILE%\user.gmic" on Windows.
The new filter appears in "Filters -> G'MIC -> Rendering -> Equation Plot [Implicit] (prerelease)".

EDIT: APPDATA has been replaced by USERPROFILE

Have fun!

sallyanne · **Posted:** Thu Oct 17, 2024 11:50 pm **(#2)**

cli345 · **Posted:** Fri Oct 18, 2024 8:19 am **(#3)**

Thanks, Sallyanne, for your feedback.

Here are a few equation examples (paste them in the 'f(x,y)' field):

Code: Select all

sin(cos(x*y)) + cos(atan(x*x+y)) - 1

Attachment:

plant.png [ 14.18 KiB | Viewed 8102 times ]

Code: Select all

x^2 + ( y - sqrt(2*abs(x)) )^2 - 4

Attachment:

heart.png [ 5.51 KiB | Viewed 8102 times ]

Code: Select all

2*sin(x*y)*cos(x+y) - 1

Attachment:

mult.png [ 32.34 KiB | Viewed 8102 times ]

Enjoy!

Rod · **Joined:** May 16, 2010 **Posts:** 16075

I can not get this filter to load in the newest GMIC-Qt (3.4.3) install. I placed the copied text (code) into Appdata\Roaming\user.gmic file and it does not appear in Rendering>
Even after Gimp relaunch.

cli345 · **Posted:** Fri Oct 18, 2024 3:38 pm **(#5)**

What happens if you put user.gmic into the parent directory of AppData? That's where I've put it.

Rod · **Joined:** May 16, 2010 **Posts:** 16075

cli345 wrote:

What happens if you put user.gmic into the parent directory of AppData? That's where I've put it.

Same thing.

cli345 · **Posted:** Fri Oct 18, 2024 4:39 pm **(#7)**

I've just realized that I've written %APPDATA% which is the old location to be replaced by %USERPROFILE% (But that doesn't solve the problem of Rod).

cli345 · **Posted:** Fri Oct 18, 2024 5:03 pm **(#8)**

Rod, right now, I can't reproduce the problem. Can you try on another computer? Is the first line of user.gmic '#@gui ____<b>Rendering</b>'? Is the last line of user.gmic '}'?

Do other users have the same problem?

MareroQ · **Posted:** Fri Oct 18, 2024 11:11 pm **(#9)**

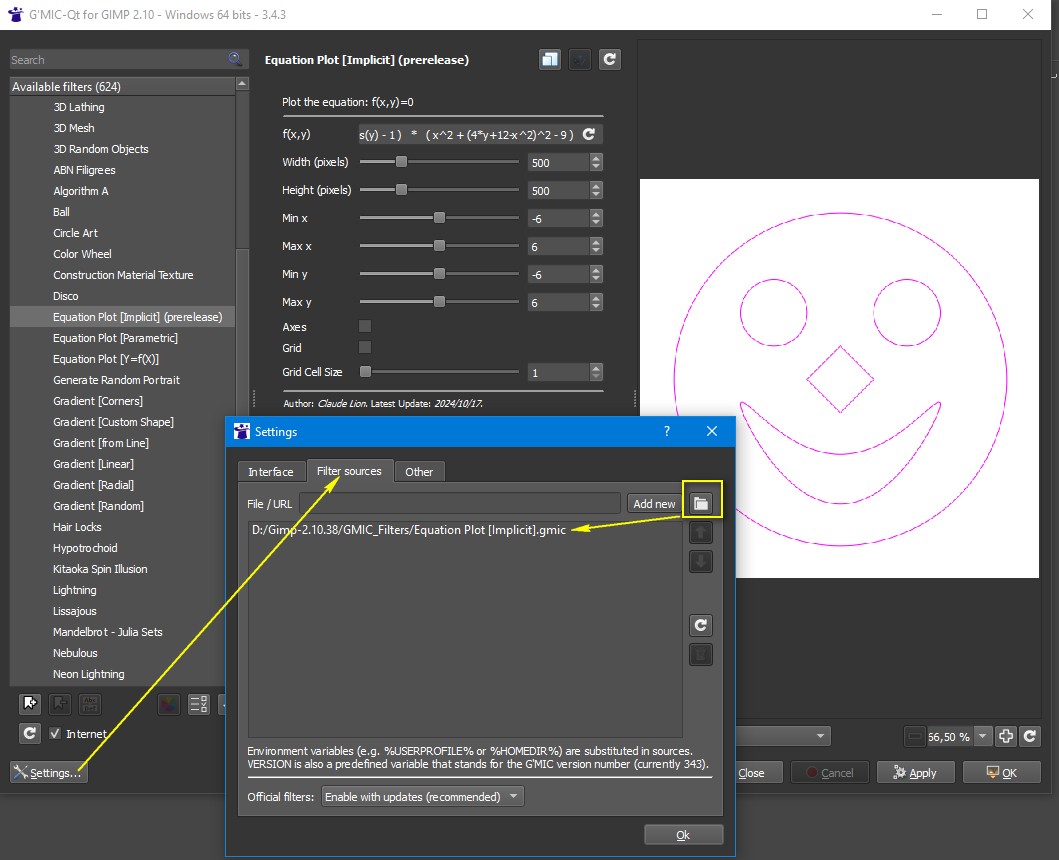

For some time now G'MIC has had the option to select "Filter sources" in "Settings...".
You can select any name in any location.
You don't even have to restart G'MIC (when you click OK the filter will be added to the filter menu).

Rod · **Joined:** May 16, 2010 **Posts:** 16075

MareroQ wrote:

For some time now G'MIC has had the option to select "Filter sources" in "Settings...".
You can select any name in any location.
You don't even have to restart G'MIC (when you click OK the filter will be added to the filter menu).

WOW! I did not know this was n the settings. Awesome and thank you MareroQ. Thanks to you also cli345.

Worked perfectly. :bigthup

cli345 · **Posted:** Sat Oct 19, 2024 8:52 am **(#11)**

Thanks, MareroQ.

A few other examples:

Code: Select all

abs(-y/2)+abs(x*x/4+sin(-y/2)-1)-1

Attachment:

collar.png [ 6.65 KiB | Viewed 7994 times ]

Code: Select all

sin(y)+abs(x*x+cos(y)-1)-1

Attachment:

eggs.png [ 11.41 KiB | Viewed 7994 times ]

Code: Select all

log(x*x+y*y+1)-sin(x*y+2*x+2*y)-1

Attachment:

four.png [ 7.18 KiB | Viewed 7994 times ]

Reptorian · **Joined:** Oct 16, 2017 **Posts:** 45

If someone can confirm my code revision works the same, I'll push the filter into gmic-community:

Code: Select all

#@gui Equation Plot [Implicit]: cl_implicitEqua, cl_implicitEqua(1)
#@gui : note = note["Plot the equation: f(x,y)=0"]
#@gui : sep = separator()
#@gui : f(x,y) = text{"( x^2 + y^2 - 25 )   *   ( (x-2)^2 + (y-2)^2 - 1 )   *   ( (x+2)^2 + (y-2)^2 - 1 )   *   ( abs(x) + abs(y) - 1 )   *   ( x^2 + (4*y+12-x^2)^2 - 9 )"}
#@gui : Width (pixels) = int(500, 10, 2000)
#@gui : Height (pixels) = int(500, 10, 2000)
#@gui : Min x = float[-6, -10000, 10000]
#@gui : Max x = float[6, -10000, 10000]
#@gui : Min y = float[-6, -10000, 10000]
#@gui : Max y = float[6, -10000, 10000]
#@gui : Axes = bool(0)
#@gui : Grid = bool(0)
#@gui : Grid Cell Size = int(1,1,5)
#@gui : sep = separator()
#@gui : url = link("Filter discussed here","http://gimpchat.com/viewtopic.php?f=28&t=21315")
#@gui : note = note("<small>Author: <i>Claude Lion</i>. Latest Update: <i>2024/10/17</i>.</small>")
cl_implicitEqua:
   equ,w,h,minx,maxx,miny,maxy,axes,grid,gridSize=$"*"
   xlong:=$maxx-$minx
   ylong:=$maxy-$miny
   xscale:=$w/$xlong
   yscale:=$h/$ylong

   foreach {
      $w,$h,1,1,"
         x=x/$xscale+$minx;
         y=-y/$yscale-$miny;
         $1"
      +gradient_norm.
      fill. "255 * cut( abs(i#-2), 0, i  ) / i"
      rm..

      if $axes==1
         $w,$h,1,1,"X=x/$xscale+$minx;Y=-y/$yscale-$miny;X*Y"
         +gradient_norm.
         fill. "255 * cut( abs(i#-2), 0, i  ) / i"
         rm..
      else
         $w,$h,1,1,255
      fi

      if $grid==1
         $w,$h,1,1,"
            X=x/$xscale+$minx;
            Y=-y/$yscale-$miny;
            sin(pi*X/$gridSize)*sin(pi*Y/$gridSize);"
         +gradient_norm.
         fill. "255 * cut( abs(i#-2), 0, i  ) / i"
         rm..
      else
         $w,$h,1,1,255
      fi

      move[-1] -3
      append[-3,-2] c
      rm[-2,-1]
      move[-1] 0
   }

cli345 · **Posted:** Sat Oct 19, 2024 3:40 pm **(#13)**

Thanks, Reptorian, it's a good idea.

Unfortunately, it doesn't work for me: it doesn't produce a drawing.

I think it's because "append. [-2],c append. [-3],c" wouldn't be equivalent to "append[-3,-2] c" and "rm[-2,-1]" wouldn't be equivalent to "rm.. rm.."

Reptorian · **Joined:** Oct 16, 2017 **Posts:** 45

cli345 wrote:

I think it's because "append. [-2],c append. [-3],c" wouldn't be equivalent to "append[-3,-2] c" and "rm[-2,-1]" wouldn't be equivalent to "rm.. rm.."

Yeah, that's why.

However, I do think multiple image inputs is what you should go for, it makes code shorter, easier to read too.

Reptorian · **Joined:** Oct 16, 2017 **Posts:** 45

Ok, I pushed this filter with the changes cli345 provided to my untested from my end code. So, it's a official gmic-community filter.

cli345 · **Posted:** Mon Oct 21, 2024 7:20 am **(#16)**

Thanks, Reptorian.
