WrapMap in 2.7 and 2.8[solved with wrapmap0.4]

Graechan · **Posted:** Sun Apr 15, 2012 10:09 pm **(#1)**

GIMP Version: 2.6.11
Operating System: Windows
OS Version: XP - SP3
GIMP Experience: Beginner Level

List any relevant plug-ins or scripts:
wrapmap rel 3

List any ERROR messages you received:
no selection found

Problems using wrapmap with gimp versions above 2.6, first of I am using a windows enviroment, and the image I am using is shown below in 2.8rc1 with the selection in red

All I get back is a error 'no selection found'

This is what should happen, shown using 2.6.11

I have also attached the complete file I was using

Attachment:

AAA-WRAPMAP.xcf [9.34 KiB]
Downloaded 115 times

lylejk · **Joined:** Sep 24, 2010 **Posts:** 12815

Wrapmap still works for me Graechan; remember, wrapmap also requires a selection, not just on object with transparency.

Graechan · **Posted:** Sun Apr 15, 2012 10:41 pm **(#3)**

Lyle did you try on the xcf attached.

lylejk · **Joined:** Sep 24, 2010 **Posts:** 12815

Your right Graechen. Tried to just do a square selection and same error. Only when I rounded the square selection did it work. It's like the python plugin doesn't like square selections and that's just plain weird. I don't know a work-a-round; it could be the way the new version of GIMP returns selection information w.r.t. sharp corners that messes up ofnut's python routine. Maybe ofnuts might see this post and see what can be done.

lylejk · **Joined:** Sep 24, 2010 **Posts:** 12815

I added a slanted fill to one of the ends and it worked. Just doesn't recognize a true square selection. Again very weird behavier.

Graechan · **Posted:** Sun Apr 15, 2012 11:31 pm **(#6)**

Lyle thank you for looking at this as I thought I was going stir crazy. I also found a easy hack to wrapmap that fixes this and I sent it to ofnuts but I won't show it here. as I don't like doing such things as maybe he can find an easier or better fix to this anomilty.

ofnuts · **Joined:** Oct 25, 2010 **Posts:** 4812

Lyle pinpointed the problem, making it all the easier to fix. Now to find a test for a workable selection that works on both 2.6 and 2.8. Stay tuned.

Graechan · **Posted:** Mon Apr 16, 2012 9:25 pm **(#8)**

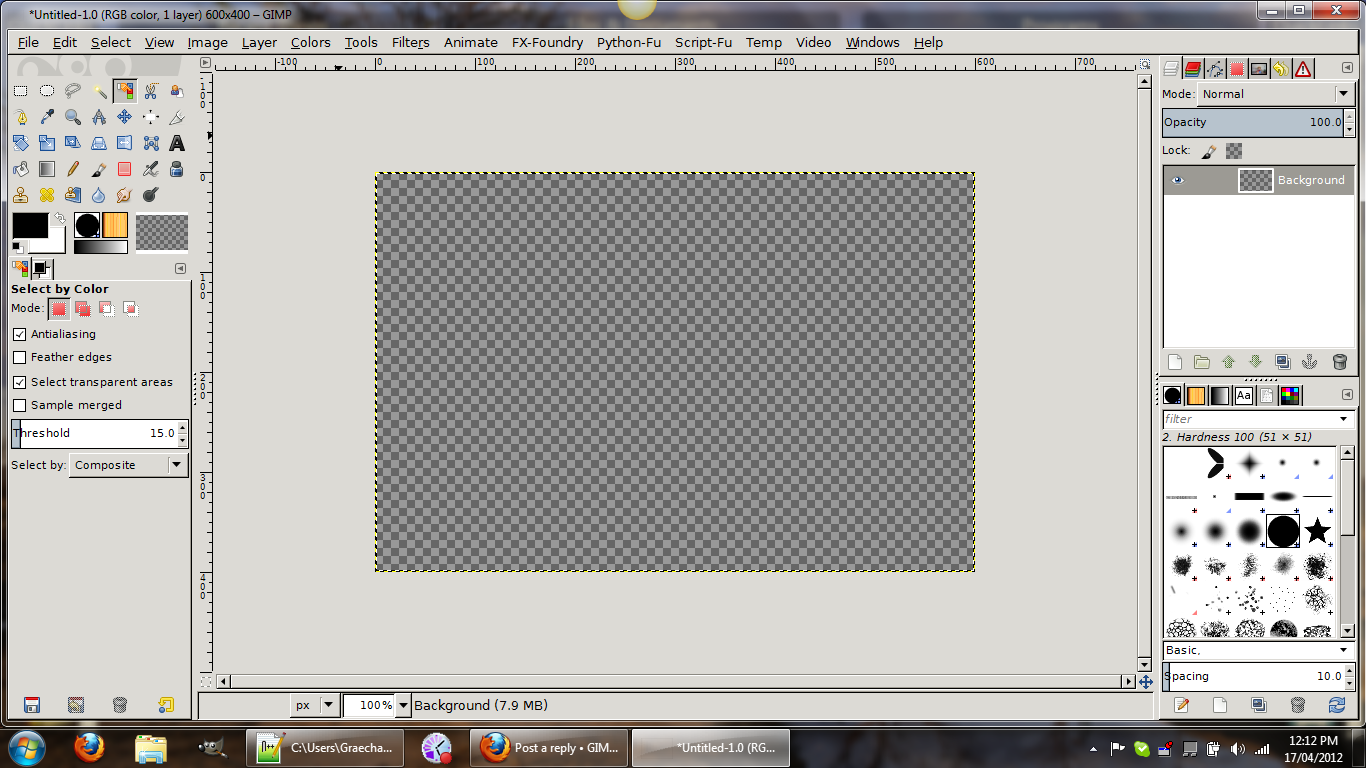

The image I am having trouble with is a transparent layer with a black 1px border

Here the actual layer is shown with the border selected prior to running 'wrapmap'

This is the layer ued in the picture frame script

ofnuts · **Joined:** Oct 25, 2010 **Posts:** 4812

Should be fixed. Get version 0.4 from Sourceforge.

lylejk · **Joined:** Sep 24, 2010 **Posts:** 12815

Thanks ofnuts; as you can see, it works in GIMP 2.8 rc1 64-bit with a square selection.

PhotoComix · **Joined:** Apr 12, 2010 **Posts:** 5870

WOW ..thanks

Graechan · **Posted:** Tue Apr 17, 2012 11:14 pm **(#12)**

ofnuts thankyou for the assistance, even though Lyle told me what was wrong I did not understand (I'm not to bright) :rofl

,old age is against me.Picture frame now works great in 2.8rc1 2.7 and 2.6,but don't forget to delete your previous version when installing(like this idiot did).

Rod · **Joined:** May 16, 2010 **Posts:** 16134

I must be pretty stupid but every time i try to use the plugin it keeps running?
Then it crashes my computer (not just Gimp).
It just keeps wrapping and wrapping and wrapping... :lol

ofnuts · **Joined:** Oct 25, 2010 **Posts:** 4812

Rod wrote:

I must be pretty stupid but every time i try to use the plugin it keeps running?
Then it crashes my computer (not just Gimp).
It just keeps wrapping and wrapping and wrapping... :lol

Version 0.3 or 0.4 or both? On whihc Gimp version? Can you post the XCF you use?

lylejk · **Joined:** Sep 24, 2010 **Posts:** 12815

If you don't choose the small gradient sample target you get this behavior Rod; trust me, that it happened more then a few times to me. lol

Rod · **Joined:** May 16, 2010 **Posts:** 16134

Ahh..so you need one layer that is the selection and one layer that is the gradient sample and you select the gradient sample layer?
Which layer do you choose in the dialog?...the selection layer?

lylejk · **Joined:** Sep 24, 2010 **Posts:** 12815

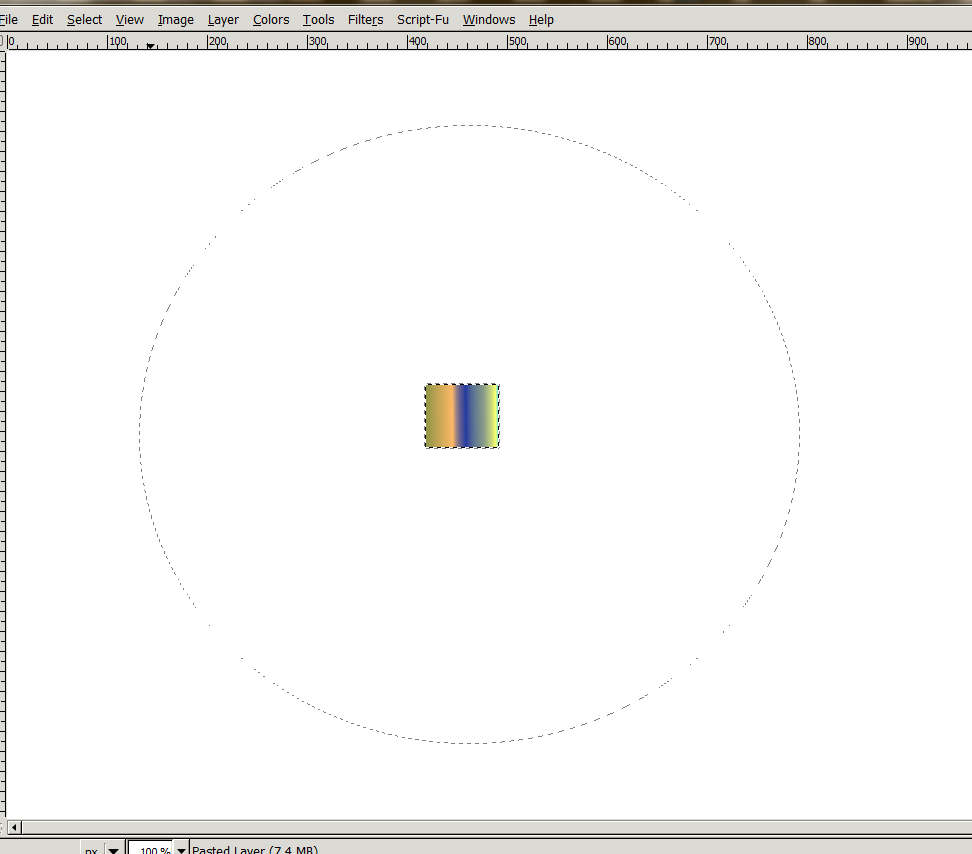

You can either choose a bounded layer (i.e. object smaller then your overall image dimensions) or just create a second (and smaller) target image; you can select either. Note the bounded gradient Rod and then the circular selection which is required. The bounded gradient in this case is on a separate layer. Again, you can just as well have another image as source too.

abraess · **Joined:** Oct 02, 2010 **Posts:** 106

Hallo can tell me please where I find the wrapmap plug-in or script. Is standard Plug-in I need only a Path for it.
Thank your
Andrew

Erisian · **Posted:** Wed Apr 18, 2012 11:59 am **(#19)**

Try this. http://gimp-wrapmap.sourceforge.net/

Edit - Sorry I didn't mention it earlier but you need to have Python installed. All .py scripts go into your plugins folder, not your scripts folder.

abraess · **Joined:** Oct 02, 2010 **Posts:** 106

Hallo Erisian, thank you. I have Python with Gimp 2.8rc1 on my Laptop.
Anndrew
