ofnuts · **Joined:** Oct 25, 2010 **Posts:** 4812

See the various distortion filters and also the "Map Object" filter (to wrap things over part of a sphere or a cylinder). But what you are looking for looks a lot like applying a texture over a 3D rendering, which falls in the basket of 3D programs.

Rod · **Joined:** May 16, 2010 **Posts:** 16173

I know Saulgoode wrote a script for layer to selection. Whether it deforms to the selection as perspective well i don't know. However he did write Warp Text which will take any text layer and using 4 node points beginning top-left it will warp the image to it. It probably will work for layers or other types of objects i would guess. You can download it at the registry here.
http://registry.gimp.org/node/24568
The script's dialog offers the option to warp any path, not just text.
More information can be found here - http://gimpchat.com/viewtopic.php?f=9&t=306
There is also Ez-Perspective here.
http://registry.gimp.org/node/24537

One or both of those may work for your current needs.

GnuTux · **Posted:** Thu Dec 26, 2013 9:34 am **(#4)**

It's on Gimp Scripts, as well.

Zeo · **Joined:** Apr 29, 2013 **Posts:** 203

PhotoComix · **Joined:** Apr 12, 2010 **Posts:** 5870

Quote:

Rod & GnuTux:
Somehow the WarpText plugin doesn't appear in my menu, after copy it to my Gimp plugins folder... (Gimp 2.6.7)

The Ez Perspective is working, btw

maybe warp text is in python and so goes in the plugin folder ?
i have a bad memory , not sure but check the extension of the file, if is "py" then move in plugin

Zeo · **Joined:** Apr 29, 2013 **Posts:** 203

he4rty · **Joined:** Aug 30, 2012 **Posts:** 2174

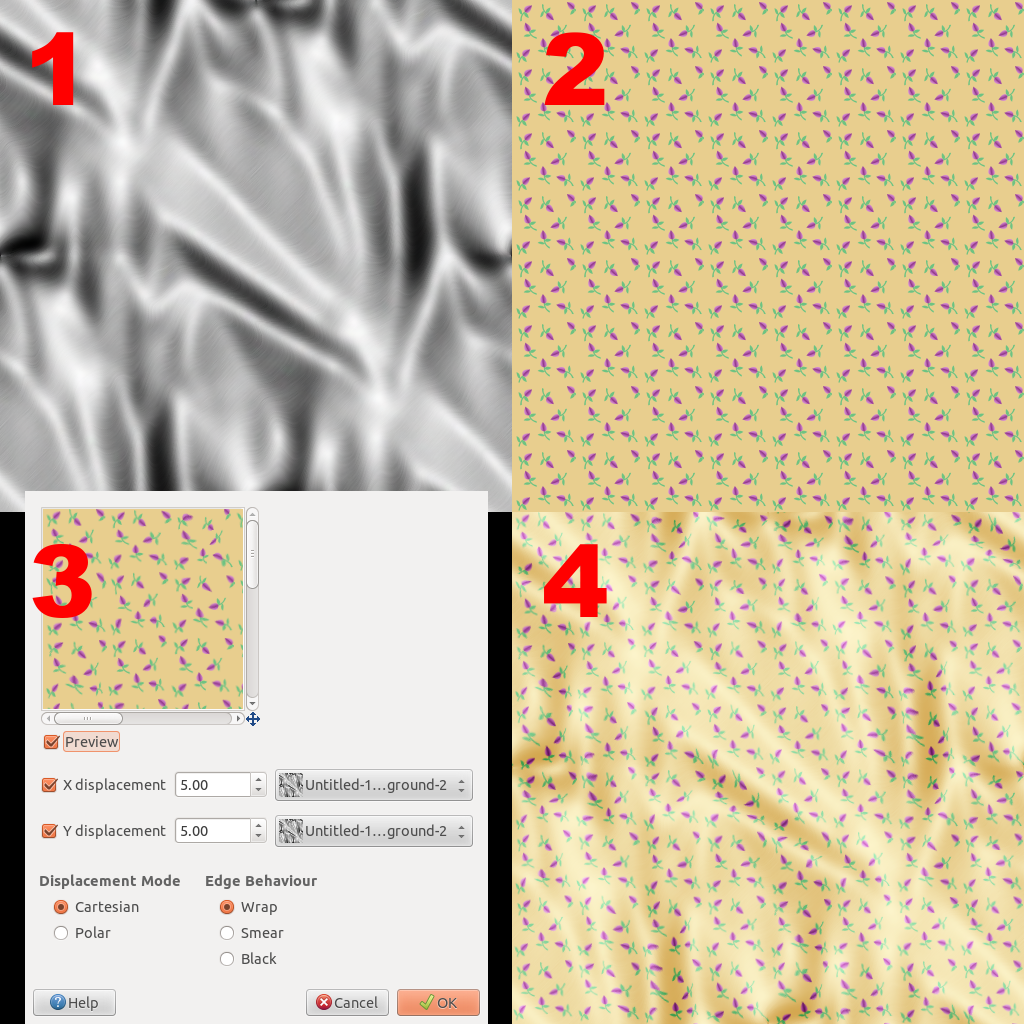

Now you have mentioned you would like to fill a dress with the pattern then I would go for the displacement map filter.

Image 1. I have created a greyscale version of my cloth, showing light and shadow or you could create a depth map of your dress.
Image 2. I have created a new Layer filled with my pattern.
Image 3. Go>filter>Map>Displace and change your Displacement values and set your displacement image as your greyscale dress layer, note the pattern image and the greyscale dress image must be the same layer size.
Image 4. Just to enhance the displacement I duplicated my greyscale image and set it above my pattern layer and changed its mode to "Overlay" this the gives the pattern cloth the lights and shadows of the displacement.

Wallace · **Posted:** Sat Dec 28, 2013 6:01 am **(#9)**

he4rty wrote:

Now you have mentioned you would like to fill a dress with the pattern then I would go for the displacement map filter.

Image 1. I have created a greyscale version of my cloth, showing light and shadow or you could create a depth map of your dress.
Image 2. I have created a new Layer filled with my pattern.
Image 3. Go>filter>Map>Displace and change your Displacement values and set your displacement image as your greyscale dress layer, note the pattern image and the greyscale dress image must be the same layer size.
Image 4. Just to enhance the displacement I duplicated my greyscale image and set it above my pattern layer and changed its mode to "Overlay" this the gives the pattern cloth the lights and shadows of the displacement.

I think you've nailed it He4rty. That's the way he should go. :bigthup

Rod · **Joined:** May 16, 2010 **Posts:** 16173

If your image (of just the dress) is in it's own layer it can be overlayed with a pattern of the exact dress selection. Try layer modes on a top layer of a pattern cut to the dresses exact selection. Place the dress layer under it.

Zeo · **Joined:** Apr 29, 2013 **Posts:** 203

Wallace · **Posted:** Mon Dec 30, 2013 7:20 am **(#12)**

Zeo wrote:

@he4rty & Rod: Thanks for the explanation and example :hehe

Actually that is my method that I use this far (but without displacement map), place pattern layer in front of color (or grayscale) layer and change pattern layer mode. Usually 'multiply' layer mode works better than any other layer mode. If the color don't suit, just 'colorize' pattern layer...

[ Image ]

... but it feels... err... not natural, so maybe next time I will do it... manually...

Using displacement will give the fabric a more natural look.
