Hi,
In the attachment an armouring for input file-name and folder. Also the file-names and folders are from my Linux and Windows.
For the adventurous I have included in folder 'experimental' a version of 'gimpfu.py' that try to address one pet peeve that I, believe, share with MareroQ: the one 'shot' nature of 'gimpfu.py'. With it in your user plug-in folder you have to push the 'Cancel' button to terminate if no GIMP error happens. A push on the 'OK' button when in non-push state should produce another cycle.

You can open a '.pot' file with a text editor, it does not produce a '.mo' file essential for translation, but can be use for correcting the English or/and produce a '.po' file. For doing so use the 'msgstr' under 'msgid'.

Edit: The attachment is now the package version 0.4 of 'Gimp_to_Inkscape'. Contains at the root one file 'Gimp_to_Inkscape.py' and two folders: 'experimental' and 'locale' which have something for translation organize the same way as the previous package 0.3.
To have access to this plug-in after its installation, you right-click on a path (vectors) layer in the 'path dialog', near the end of the just open window you should see its handle: 'Connection to Inkscape &...'.
Since one of the first goal, to my understanding, it's to continue work on vectors initiated in GIMP by transferring it to Inkscape for further development and back.
Please report any bug, found in it, within this thread for a month (from now 2016/03/17).

Edit (2016/06/16) : 'render' should work now if the top layer is a group-layer. Made some other improvements, see the 'History' at the beginning if you open the plug-in, while I was looking at it.

Your new gimpfu.py is sensational in the idea - very useful for recurring activities (but with modified parameters) - preview the effect in the window! (Dream: a would add another option "undo" would not need to use the Ctrl + Z).
A small suggestion: if you add even a scroll bar (because now the dilemma - which gimpfu use)?

Topic: alt-drag and non-scrolling plugins
http://gimpchat.com/viewtopic.php?f=9&t=13714#p186121

Hi,
MareroQ: Thanks for trying this 'gimpfu.py'. Your idea of an 'undo' button (for the last cycle) seems a necessity for the preview aspect .
Did you make a photo montage to have it on 'Gimp_to_Inkscape' UI?

To explain my purpose.
Changing the comportment of 'gimpfu.py' is disruptive, unlike changing the way the UI is displayed (arakne, jazzon), as a pygimp plug-in writer I like stability.
Should view this as concrete ideas for GIMP version 3.0, when the plug-in API should change; since it should be progress.

Hi Robert

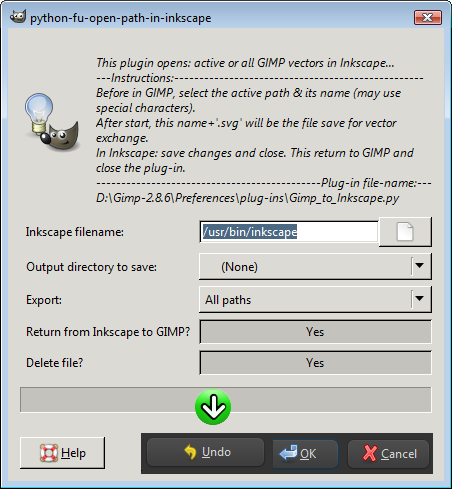

- For "Undo" is a dream (so photomontage);

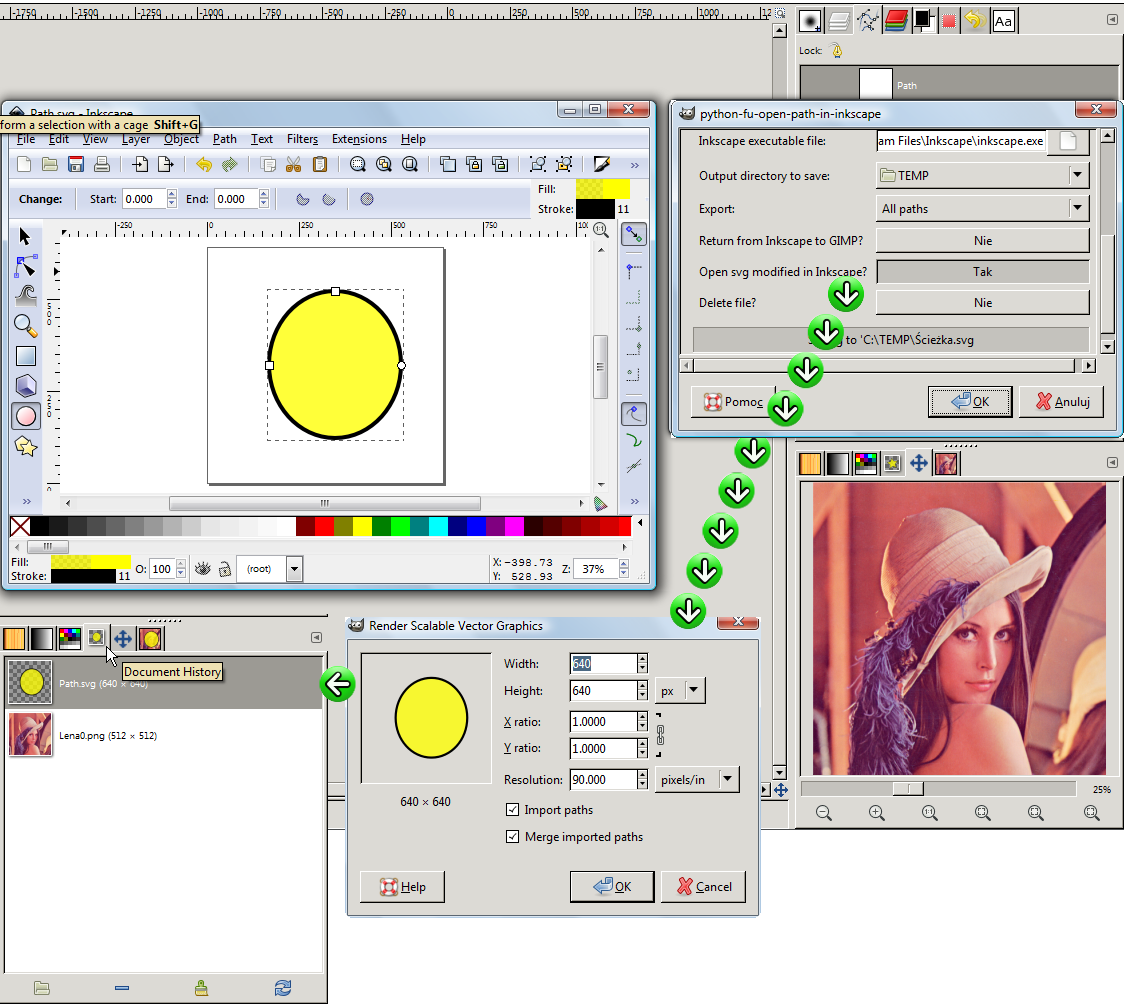

- I added a new option: Open svg modified in Inkscape? (although it is possible that a better option would be to open svg as layer or as a choice open as a new image - but I tried again, unsuccessfully);

- For the translation - I use Poedit - but for me it is for Python plugins will not work for Windows (the only case I know of the possibility of translation is arakne-path-shape-creator8.py);

- Added Your gimpfu.py joined with jazzon scrollbar (experimental).


Edit (17-03-206): newer version in the post (# 31)

Hi MareroQ,

- Was not sure.

- When you are satisfied with the additions, gives me a holler then.

- I use 'Poedit' too but for Linux, transfer the translation to Windows and it works!

Hi Robert.

- On the translation: it's my fault - I added Gimp_to_Inkscape.mo file to the directory ... / share / locale / ... instead of the home directory ... / plug-ins / locale ...
Now it works!

- The new option - open svg (as a new layer or as a new image), you can help in the code? (the last time - on SVGpage.py for Windows is not longer count - lack of interest by others - although I do not think they know what they are missing ).
Attached standalone plugin (open svg as layer.py) - but adapted (probably in error ) in Gimp_to_Inkscape does not work.

Regards

Hi,

- Happy that your translation problem are over (I favour, like you realize, the 'user or /home' over the 'administrator or /' for two reasons: 1) less writing hassle, 2) less likely to be messed with during a GIMP update)

- I look at that and make it work, for open as a new render layer, in 'Gimp_to_Inkscape' with the help of your stand alone plug-in; but was not able to make it works in a more direct way. I have very little experience with SVG file in GIMP so it still in a rough state.

Edit: see the attachment for what I have done for now (2016/03/15) .
By.

Hi Robert.

This is what I wanted to (unsuccessfully) to achieve.

Now, as I look at Your code it seems simple and obvious - but I have not found a solution for many hours.

Thank You for Your help and code - again something I learned from You.

Now it is more than vectors - so I suggest you change the name in the menu:
of "Vectors to Inkscape & ..." on "Connection to Inkscape & ...
Robert - if You agree to such a change?

As for me, this is the final version.

Hi akovia and MareroQ,

The name change make sense and initially it was your baby.

The rough state mentioned in my previous post was mainly cause by the rendered size proposed.
Not to be embarrassed, it took me a day to realize that 'run_mode=RUN_INTERACTIVE' argument made the 'file_svg_load()' function overlook the 'width=height=0' arguments in it!
It is only obvious after you realize.

In a couple of day this will be included in an edited package attachment to former post #31.

Note: you can have a kind of preview by raising one step in the 'undo history dialog'.

Hoping that is to your satisfaction, Robert.

Hi,

'Gimp_to_Inkscape' version 0.4 works OK with GIMP-2.9.3, which I have.
Was wondering if somebody has tried it on GIMP-2.6, which I don't have any-more?

New Version 0.4.2 (2016/06/16) created by rob_brz1 Posted:(#31)
http://gimpchat.com/viewtopic.php?f=9&t=13723&start=30#p187074

- Offer to save the arguments of the plug-in if a change in the folders args (SVG & Inkscape).
By making a folder in 'gimp.directory' called 'py_configs' & a list file.
- One running instance only.
- Produce a 'bail_out(msg)' function to streamline the code.
- Better management of the progress bar.
- Use the name given at the beginning to the SVG file for the render layer.
- Protect the plug-in exit and advise the user if no SVG file found after Inkscape,
or avoid rendering on a group layer (a crash).

Thanks Robert.

Gimp to Inkscape is wonderful. Well done everyone.

What does this script do and do you have to have inkscape to use it?

It links Gimp svg paths to Inkscape and back.
