Having trouble with a script

Terra · **Joined:** Jun 29, 2015 **Posts:** 7

a person on this board wrote me a script and ive since changed the computers OS from windows to linux mint and am now having trouble getting the script to work can someone tell me how to get it to work ive posted the script as it was writen as i backed it up before switching OS

(script-fu-register
"script-fu-Terra-visible-to-mult-layr"
"Visible to mult layer"
"Add layer from visible, set it to multiply mode"
"Jon Tait (at request of Terra at http://gimpchat.com)"
"Jon Tait (jontait2 at http://gimpchat.com)"
"2015-06-30"
"RGB* GRAY*"
SF-IMAGE "Image" 0
SF-DRAWABLE "Drawable" 0
)

(script-fu-menu-register "script-fu-Terra-visible-to-mult-layr" "<Image>/Filters/Terra/")

;********

(define
(script-fu-Terra-visible-to-mult-layr
inImage inDrawable
)
(let*
(
(multLayer (car (gimp-layer-new-from-visible inImage inImage "mult layer")))
)
(gimp-image-undo-group-start inImage)

(gimp-image-insert-layer inImage multLayer 0 -1)
(gimp-layer-set-mode multLayer MULTIPLY-MODE)

(gimp-image-undo-group-end inImage)
(gimp-displays-flush)

);end let*
);end define

PixLab · **Posted:** Sun Dec 08, 2024 12:17 am **(#2)**

Out of the blue...
Which GIMP? if it's GIMP 3 RC1/GIMP 2.99.xx, your script might need some little changes, be in the plugin folder with the right to be executed as program
Also if it's an indexed image this script is for RGB and Gray scaled image

rich2005 · **Joined:** Mar 04, 2011 **Posts:** 2614

It could be that the Mint Gimp 2.10 does not have the compatibility switch enabled.

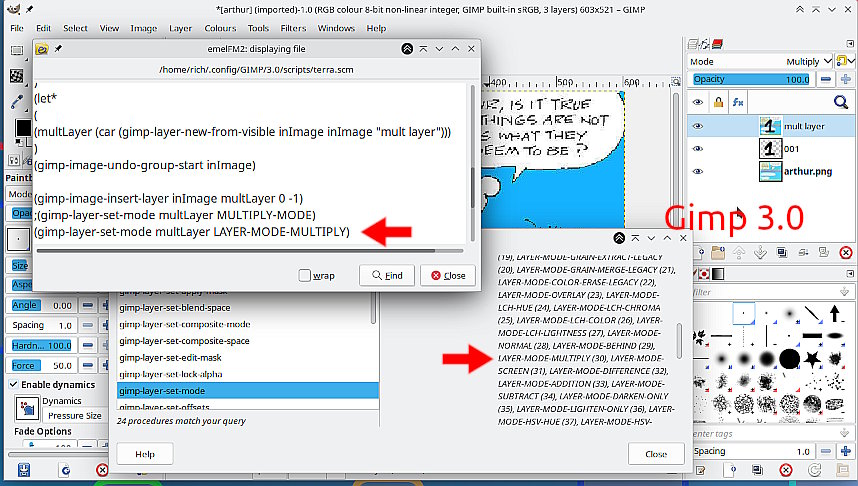

There is one parameter that uses the old syntax.

Vary rarely (so-far for me) a script-fu is easy to edit for Gimp 3.0 - this is one. A single parameter to change, and it works with both Gimp 2.10 and Gimp 3.0

Attachment:

layermode.jpg [ 129.87 KiB | Viewed 2779 times ]

script attached, works here but as usual no guarantees.

Terra · **Joined:** Jun 29, 2015 **Posts:** 7

its 2.10 is what im using and i tried your script and got it in the scripts folder and refreshed and it still didnt work you mentioned a compatiablity mode how do i turn that on ive never used an RC version of software so i dont know if i want to try that while im still getting used to linux

rich2005 · **Joined:** Mar 04, 2011 **Posts:** 2614

I do not think I can help much. I do not think it is a backward compatibility issue, probably the version of Gimp 2.10 (from repo / flatpak / someting else)

Attachment:

works-here.jpg [ 112.86 KiB | Viewed 2724 times ]

This is a Mint 21.3 Virginia (1) It is the default Gimp 2.10.30 from the Mint repo.
I can start Gimp from a terminal (2) with:

Code: Select all

gimp --pdb-compat-mode=on

...and that is working here. (3) ...but it works anyway.

Maybe if you give a few more details of Mint version and Gimp version someone will have an answer.

trandoductin · **Posted:** Sun Dec 08, 2024 2:06 pm **(#6)**

I don't know what happens when you have 2 scheme files since you said you copied rich's file into scripts but didn't mention removing the other one.

If scheme fu version doesn't work, try python fu
Unzip attached file, toss in your GIMP's plug-ins folder, set the file to be executable (you have to make executable on Linux).
It'll be available under Python-Fu/A Terra menu item.

Code: Select all

#!/usr/bin/env python
# Author: Tin Tran
# Created On: 2024.12.04
# Add visible layer
# Set to multiply mode
# Revisions:
# 0.1 Initial Version
from gimpfu import *
import os
import math
import time
def terra(image,layer):
    multLayer = pdb.gimp_layer_new_from_visible(image,image,'mult layer')
    pdb.gimp_image_insert_layer(image,multLayer,None,0)
    pdb.gimp_layer_set_mode(multLayer, LAYER_MODE_MULTIPLY)
register(
    "python_fu_terra",
    "Creates Multiply Visible Layer",
    "Creates Multiply Visible Layer",
    "author name",
    "copyright name",
    "2024.12.08",
    "A Terra",
    "RGB*",      # Alternately use RGB, RGB*, GRAY*, INDEXED etc.
    [
    #INPUT BEGINS
    (PF_IMAGE, "image", "Image", None),
    (PF_DRAWABLE,   "layer", "Drawable", None),
    #INPUT ENDS
    ],
    [],
    terra,
    menu="<Image>/Python-Fu")

main()

# Below is all the example input types for INPUTS for the plug-in which can be cut and pasted into #INPUT BEGINS section and edited to taste (found online years back that I didn't want to constantly look up)
# Since GIMP is free anyways, I thought it would be handy here for me to CUT and PASTE, CHANGE, USE.
#           (PF_INT, "p0", "_INT:", 0), # PF_INT8, PF_INT16, PF_INT32  similar but no difference in Python.
#           (PF_FLOAT, "p02", "_FLOAT:", 3.141),
#           (PF_STRING, "p03", "_STRING:", "foo"),  # alias PF_VALUE
#           (PF_TEXT, "p04", "TEXT:", "bar"),
#           # PF_VALUE
#           # Pick one from set of choices
#           (PF_OPTION,"p1",   "OPTION:", 0, ["0th","1st","2nd"]), # initially 0th is choice
#           (PF_RADIO, "p16", "RADIO:", 0, (("0th", 1),("1st",0))), # note bool indicates initial setting of buttons
#           # PF_RADIO is usually called a radio button group.
#           # SLIDER, ADJUSTMENT types require the extra parameter of the form (min, max, step).
#           (PF_TOGGLE, "p2",   "TOGGLE:", 1), # initially True, checked.  Alias PF_BOOL
#           # PF_TOGGLE is usually called a checkbox.
#           (PF_SLIDER, "p3", "SLIDER:", 0, (0, 100, 10)),
#           (PF_SPINNER, "p4", "SPINNER:", 21, (1, 1000, 50)),  # alias PF_ADJUSTMENT
#           # Pickers ie combo boxes ie choosers from lists of existing Gimp objects
#           (PF_COLOR, "p14", "_COLOR:", (100, 21, 40) ), # extra param is RGB triple
#           # PF_COLOUR is an alias by aussie PyGimp author lol
#           (PF_IMAGE, "p15", "IMAGE:", None), # should be type gimp.image, but None works
#           (PF_FONT, "p17", "FONT:", 0),
#           (PF_FILE, "p18", "FILE:", 0),
#           (PF_BRUSH, "p19", "BRUSH:", 0),
#           (PF_PATTERN, "p20", "PATTERN:", 0),
#           (PF_GRADIENT, "p21", "GRADIENT:", 0),
#           (PF_PALETTE, "p22", "PALETTE:", 0),
#           (PF_LAYER, "p23", "LAYER:", None),
#           (PF_CHANNEL, "p24", "CHANNEL:", None),  # ??? Usually empty, I don't know why.
#           (PF_DRAWABLE, "p25", "DRAWABLE:", None),
#           # Mostly undocumented, but work
#           (PF_VECTORS, "p26", "VECTORS:", None),
#           (PF_FILENAME, "p27", "FILENAME:", 0),
#           (PF_DIRNAME, "p28", "DIRNAME:", 0)
#           # PF_REGION might work but probably of little use.  See gimpfu.py.

Terra · **Joined:** Jun 29, 2015 **Posts:** 7

i switched it from flatpak to system package and got the script to work thank you everyone for your help

EduWriter · **Joined:** Dec 13, 2024 **Posts:** 2

It is frustrating when one has a problem with a script, but it can be a great learning experience. Break the problem down into smaller parts and check for errors or bugs step by step. Use online resources, forums, or advice from others who may have faced similar issues. Troubleshooting is a very important skill that improves with practice! :cool

quietreader · **Joined:** Apr 11, 2024 **Posts:** 311

Such a comment does not really help!

trandoductin · **Posted:** Fri Dec 13, 2024 5:47 pm **(#10)**

I think gimpchat is being attacked by AI writers.

quietreader · **Joined:** Apr 11, 2024 **Posts:** 311

That's my feeling, too.

ofnuts · **Joined:** Oct 25, 2010 **Posts:** 4812

trandoductin wrote:

I think gimpchat is being attacked by AI writers.

More like spammers. Random stuff to get enough posts/karma to be able to post links. Like they have always done, but instead of copy-pasting other posts, they generate the text with AI. Many of these on G-F.n too, but besides the dummy posts there are other criteria.
